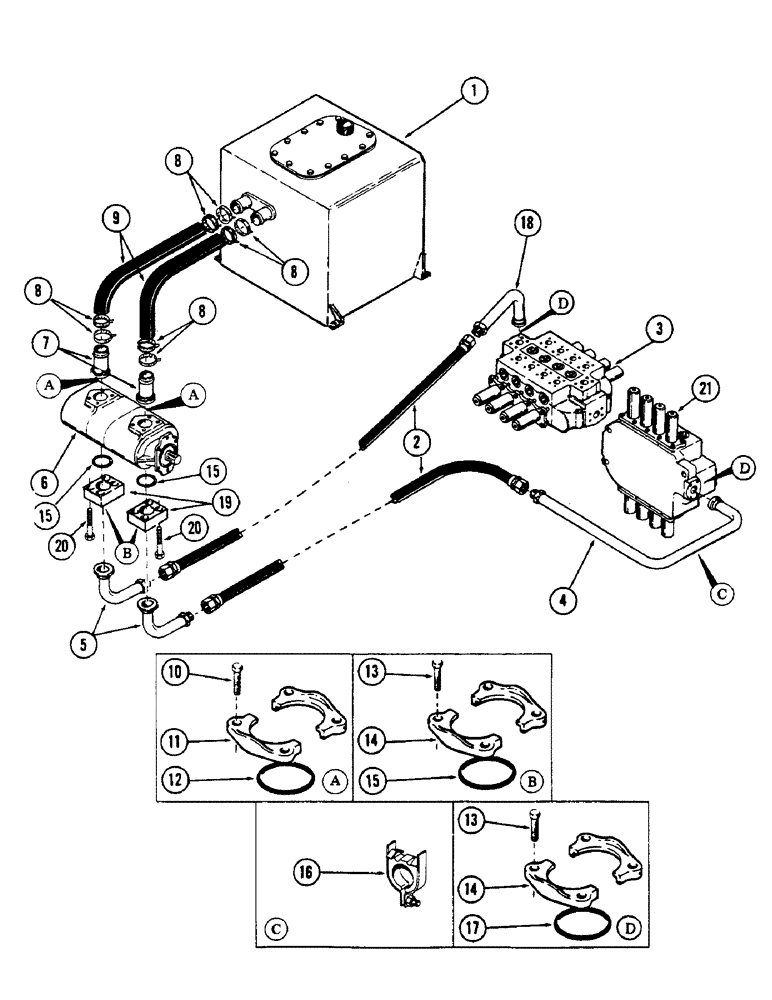

Запчасти Case 50 (160) - RESERVOIR TO PUMP TO VALVES TUBING (USED ON UNITS W/ SN. 6279926-6280344) (SN.6279926 & AFTER) (35) - HYDRAULIC SYSTEMS

1

REF

INSTRUCTION

RESERVOIR - hydraulic oil (For breakdown, see figures 126 and 128A)

1шт.

2

S8628

HOSE

- high pressure 1" ID x 36" long (With 1-5/16" - 12 female pressed on couplings)

2шт.

3

REF

INSTRUCTION

VALVE - 4-spool main control (For breakdown, see figure 260)

1шт.

4

S234180

TUBE - hydraulic (Supersedes S232076 and S233555) 1.25" OD x 16.35, 23.55" L

1шт.

5

S234197

TUBE - hydraulic (Supersedes S229766) 1.25" OD x 5.36, 6.06" L

2шт.

6

REF

INSTRUCTION

PUMP - main hydraulic (Used with Case engines) (For breakdown, see figure 226)

1шт.

REF

INSTRUCTION

PUMP - main hydraulic (Used with Detroit diesel engines) (For breakdown, see figure 228)

1шт.

7

S231432

TUBE - hydraulic 2" OD x 4.6" L

2шт.

8

214-353

CLAMP,#46, 2.62"-2.31", T-Bolt

- hose (4 per hose) (Replaces S85430)

8шт.

9

S202867

HOSE - low pressure (Bulk) 2 pieces used with Detroit diesel engines 1 pieces 2" ID x 32" long and 1 piece 2" ID x 27" long (59")

1шт.

S202867

HOSE - low pressure (Bulk) (2 pieces used with Case engines 1 piece 2" ID x 25.5" long and 1 piece 2" ID x 27" long (52.5")

1шт.

10

113-412

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

8шт.

11

L14386

CLAMP

- half flange

4шт.

12

S6322

RING,0.07" Thk x 1.364" ID, -28, Cl 5, 75 Duro

"O" RING - 2.734" ID x 3.000" OD

2шт.

13

113-336

BOLT,Hex, 7/16" - 14 x 2-1/4", Gr 5

CPSW - 7/16" NC x 2-1/4" gr 5

16шт.

14

A12301

CLAMP,Half

CLAMP - half flange

8шт.

15

S6586

O-RING,0.139" Thk x 1.484" ID, -222, Cl 6, 90 Duro

"O" RING - 1.484" ID x 1.762" OD

4шт.

16

S93266

CLAMP

2шт.

17

S6586

O-RING,0.139" Thk x 1.484" ID, -222, Cl 6, 90 Duro

"O" RING - 1.484" ID x 1.762" OD

2шт.

18

S234181

TUBE ASSY.

TUBE - hydraulic (Supersedes S232137, 233104 and 233556)

1шт.

19

S234191

BLOCK - adapter

2шт.

20

113-312

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5

8шт.

21

REF

INSTRUCTION

VALVE - 4-spool main control (For breakdown, see figure 263A)

1шт.
