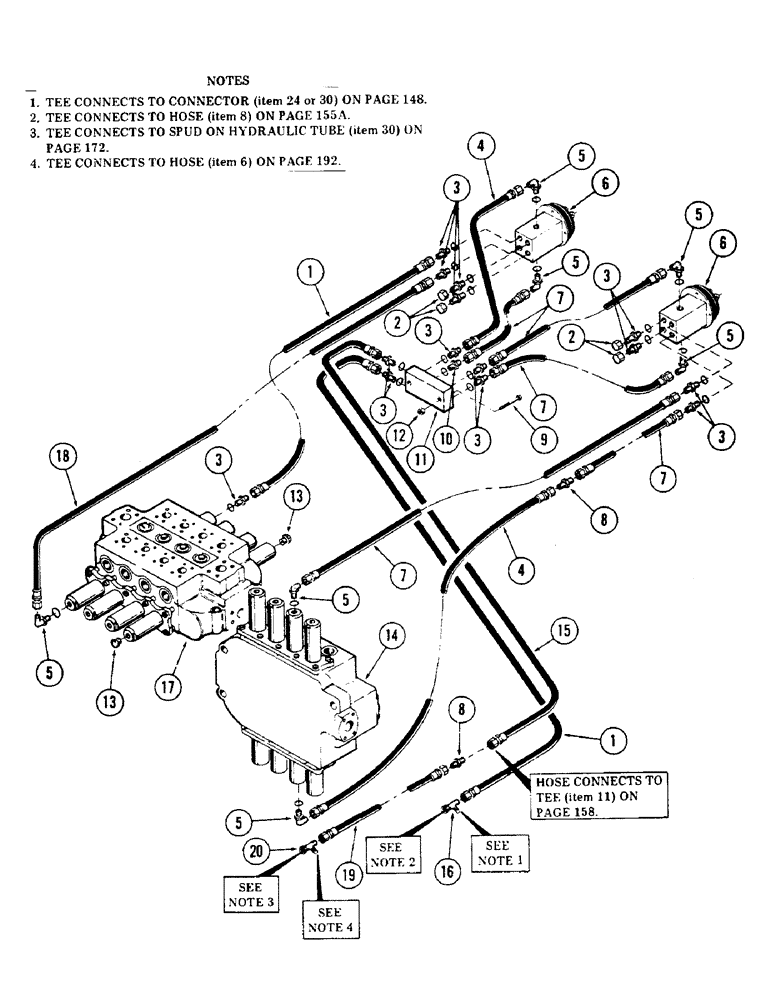

Запчасти Case 50 (156) - HAND CONTROL VALVE TUBING, (USED ON UNITS W/ SN. 6280345 & AFTER) (SN. 6279926 & AFTER) (35) - HYDRAULIC SYSTEMS

1

S227397

HOSE ASSY.

HOSE - high pressure 3/8" ID x 70" long (With 9/16" - 18 female pressed on couplings)

2шт.

2

218-754

CAP,37 Degree, 9/16"-18

- (3/8" tube) 9/16" - 18 male x 9/16" - 18 male 37 degrees flared

12шт.

S6059

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

"O" RING

12шт.

4

S227395

HOSE

- high pressure 3/8" ID x 21" long (With 9/16" - 18 female pressed on couplings)

5шт.

5

76344

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 ORB

Adjustable (3/8" tube) 90º, 9/16"-18, 37º x 9/16"-18, O-Ring

7шт.

S6059

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

"O" RING

7шт.

6

REF

INSTRUCTION

VALVE - control (For breakdown, see figure 256)

2шт.

7

S232016

HOSE - high pressure 3/8" ID x 100" long (With 9/16" - 18 female pressed on couplings)

2шт.

8

218-734

UNION,9/16"-18, 37 Degree x 9/16"-18, 37 Degree

- (3/8" tube) 9/16" - 18 male x 9/16" - 18 male 37 degrees flared

2шт.

9

113-119

BOLT,Hex, 5/16" - 18 x 2-3/4", Gr 5

2шт.

10

S66475

CONNECTOR - straight (3/8" tube) 9/16" - 18 male x 9/16" - 18 male 37 degrees flared

1шт.

S6059

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

"O" RING

1шт.

11

S236862

BLOCK

- manifold

1шт.

12

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - self locking 5/16" NC (Replaces 131-69)

2шт.

13

218-774

PLUG,9/16"-18, 37 Degree

- (3/8" tube) (/16" - 18 male 37 degrees flared

2шт.

14

REF

INSTRUCTION

VALVE - 4-spool main control (Inside) (For breakdown, see figure 263A)

1шт.

15

S227397

HOSE ASSY.

HOSE - high pressure 3/8" ID x 70" long (With 9/16" - 18 female pressed on couplings)

1шт.

16

218-573

TEE,9/16"-18, 37 Degree x 1/4"-18, NPTF Fem Br

- (3/8" tube) 9/16" - 18 male x 9/16" - 18 male x 1/4" NPT female 37 degrees flared

1шт.

17

REF

INSTRUCTION

VALVE - 4-spool main control (Outside) (For breakdown, see figure 260)

1шт.

18

S232015

HOSE - high pressure 3/8" ID x 80" long (With 9/16" - 18 female pressed on couplings)

1шт.

19

S227396

HOSE ASSY.

HOSE - high pressure 3/8" ID x 50" long (With 9/16" - 18 female pressed on couplings)

1шт.

20

218-5222

TEE,37 Degree, 9/16"-18, x 9/16"-18, Fem Sw Run

- (3/8" tube) 9/16" - 18 male x 9/16" - 18 male x 9/16" - 18 female 37 degrees flared

1шт.
