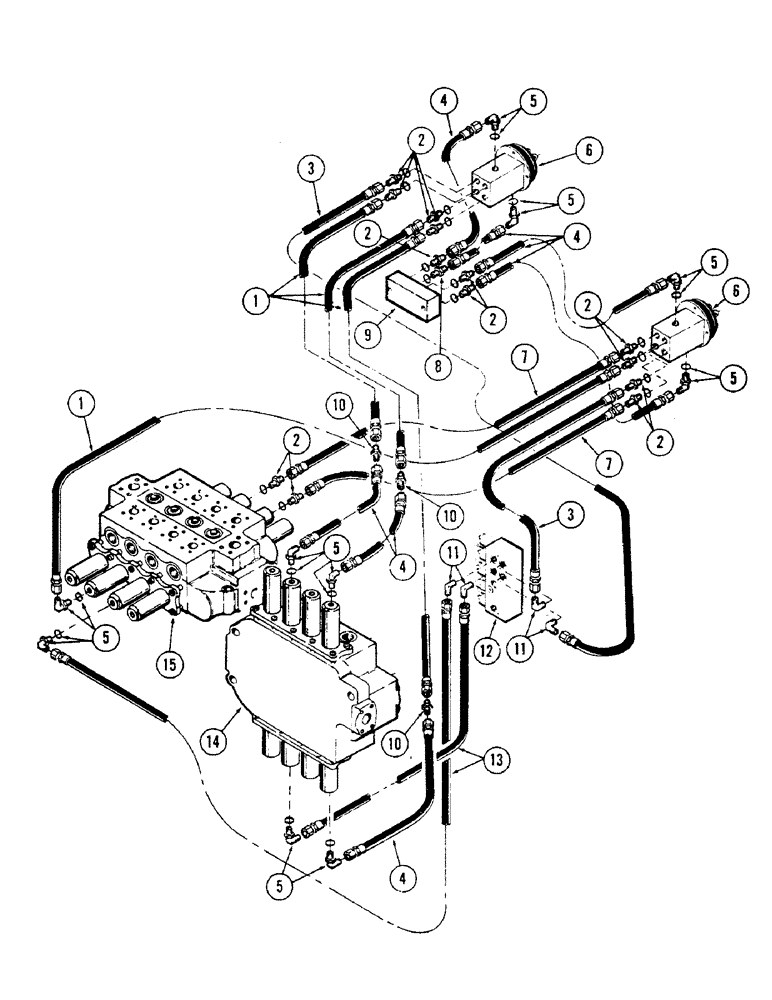

Запчасти Case 50 (154) - FOOT CONTROL VALVE AND DRIVE LOCK TUBING (USED ON UNITS W/ SN. 6280345 & AFTER) (SN. 6279926 & AFTER (35) - HYDRAULIC SYSTEMS

1

S232016

HOSE - high pressure 3/8" ID x 100" long (With 9/16" - 18 female pressed on couplings)

4шт.

2

S7961

CONNECTOR, ELEC

CONNECTOR - (3/8" tube) 9/16" - 18 male x 9/16" - 18 male 37 degrees flared

13шт.

S6059

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

"O" RING

13шт.

3

S232015

HOSE - high pressure 3/8" ID x 80" long (With 9/16" - 18 female pressed on couplings)

2шт.

4

S227395

HOSE

- high pressure 3/8" ID x 21" long (With 9/16" - 18 female pressed on couplings)

7шт.

5

76344

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 ORB

Adjustable (3/8" tube) 90º, 9/16"-18, 37º x 9/16"-18, O-Ring

10шт.

6

REF

INSTRUCTION

VALVE - control (For breakdown, see figure 256)

2шт.

7

S227397

HOSE ASSY.

HOSE - high pressure 3/8" ID x 70" long (With 9/16" - 18 female pressed on couplings)

2шт.

8

S64475

CONNECTOR - straight (3/8" tube) 9/16" - 18 male x 9/16" - 18 male 37 degrees flared

1шт.

S6059

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

"O" RING

1шт.

9

S236862

BLOCK

- manifold

1шт.

10

218-734

UNION,9/16"-18, 37 Degree x 9/16"-18, 37 Degree

- (3/8" tube) 9/16" - 18 male x 9/16" - 18 male 37 degrees flared

3шт.

11

S11252

ELBOW

- 45 degrees adjustable (3/8" tube) 9/16" - 18 male x 9/16" - 18 male 37 degrees flared

4шт.

S6059

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

"O" RING

4шт.

12

REF

INSTRUCTION

VALVE - solenoid relief (For breakdown, see figure 246)

1шт.

13

S227396

HOSE ASSY.

HOSE - high pressure 3/8" ID x 50" long (With 9/16" - 18 female pressed on coupling pressed on couplings)

2шт.

14

REF

INSTRUCTION

VALVE - 4-spool main control (Inside) (For breakdown, see figure 263A)

1шт.

15

REF

INSTRUCTION

VALVE - 4-spool main control (Outside) (For breakdown, see figure 260)

1шт.
