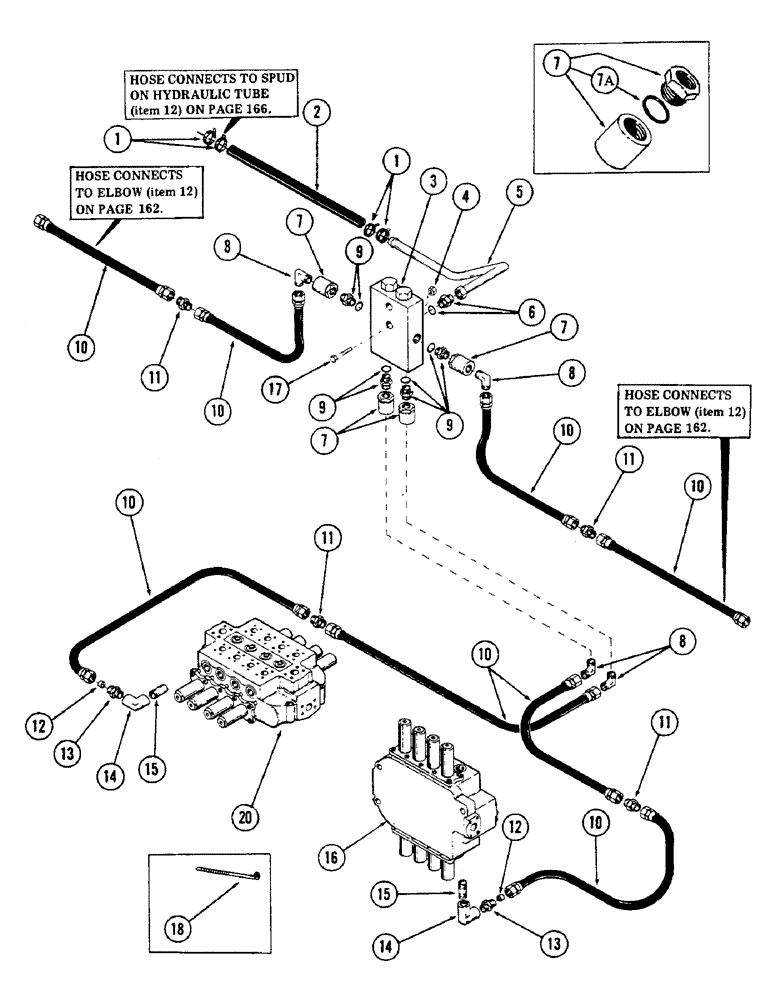

Запчасти Case 50 (146) - MAIN CONTROL VALVE POWER SENSING TUBING (USED ON UNITS W/ SN. 6279926-6280344) (SN. 6279926 & AFTER) (35) - HYDRAULIC SYSTEMS

1

214-255

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm

(2 per hose end) #16, 0.81/1.50 Type F Worm

4шт.

2

S202580

HOSE - low pressure (Bulk) 1 piece 3/4" ID x 18" long (18")

1шт.

3

REF

INSTRUCTION

VALVE - power sensing relief (For breakdown, see figure 242)

1шт.

4

13-71

NUT - self locking 1/4" NC

2шт.

5

S232146

TUBE - hydraulic 0.75" OD

1шт.

6

S88730

CONNECTOR, ELEC

CONNECTOR - (3/4" tube) 3/4" - 16 male x 1-1/16" - 12 male 37 degrees flared

1шт.

S6061

O-RING,0.639" ID x 0.09" Width

"O" RING - .644" ID x .818" OD

1шт.

7

S98004

FILTER

Includes: Ref. 7A

4шт.

7a

S18960

O-RING,-208, 90 Duro, .609" ID x .139" Thk

"O" RING

4шт.

8

218-483

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

- 90 degrees (3/8" tube) 9/16" - 18 male x 1/4" NPT male 37 degrees flared

4шт.

9

S11271

FITTING

CONNECTOR - (3/8" tube) 9/16" - 18 male x 1/4" NPT male 37 degrees flared

4шт.

S6059

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

"O" RING - .468" ID x .624" OD

4шт.

10

S99421

HOSE ASSY.

HOSE - high pressure 3/8" ID x 23" long (With 9/16" - 18 female pressed on couplings)

8шт.

11

218-734

UNION,9/16"-18, 37 Degree x 9/16"-18, 37 Degree

- (3/8" tube) 9/16" - 18 male x 9/16" - 18 male 37 degrees flared

4шт.

12

S89669

VALVE

RESTRICTOR - flow

2шт.

13

218-453

HYD CONNECTOR,9/16" - 18 Male JIC x 1/8" - 27 Male NPTF

CONNECTOR, HYD., , Adapter, (3/8" tube) 9/16"-18, 37º x 1/8"-27, NPTF

2шт.

14

214-1050

ELBOW - 90 degrees 1/8" NPT female x 1/8" NPT female

2шт.

15

221-1908

PIPE,Nipple, 3/4" NPT x 2", X-Strng

NIPPLE

2шт.

16

REF

INSTRUCTION

VALVE - 4-spool main control (For breakdown, see figure 262)

1шт.

17

113-15

BOLT,Hex, 1/4" - 20 x 2-1/4", Gr 5

CPSW - 1/4" NC x 2-1/4" gr 5 (Mounts ref 3 to ref 19)

2шт.

18

L18331

CABLE TIE,375.9mm L, Nylon, Black

STRAP, CABLE, Nylon

1шт.

19

S512938

BRACKET - (Mounts ref 3) (Not illustrated)

1шт.

S95569

WASHER

- flat (Hardened) 9/16" (Bracket mounting)

2шт.

131-70

NUT,1/2"-13, GB

NUT - self locking 1/2" NC

2шт.

20

REF

INSTRUCTION

VALVE - 4-spool main control (For breakdown, see figure 260)

1шт.
