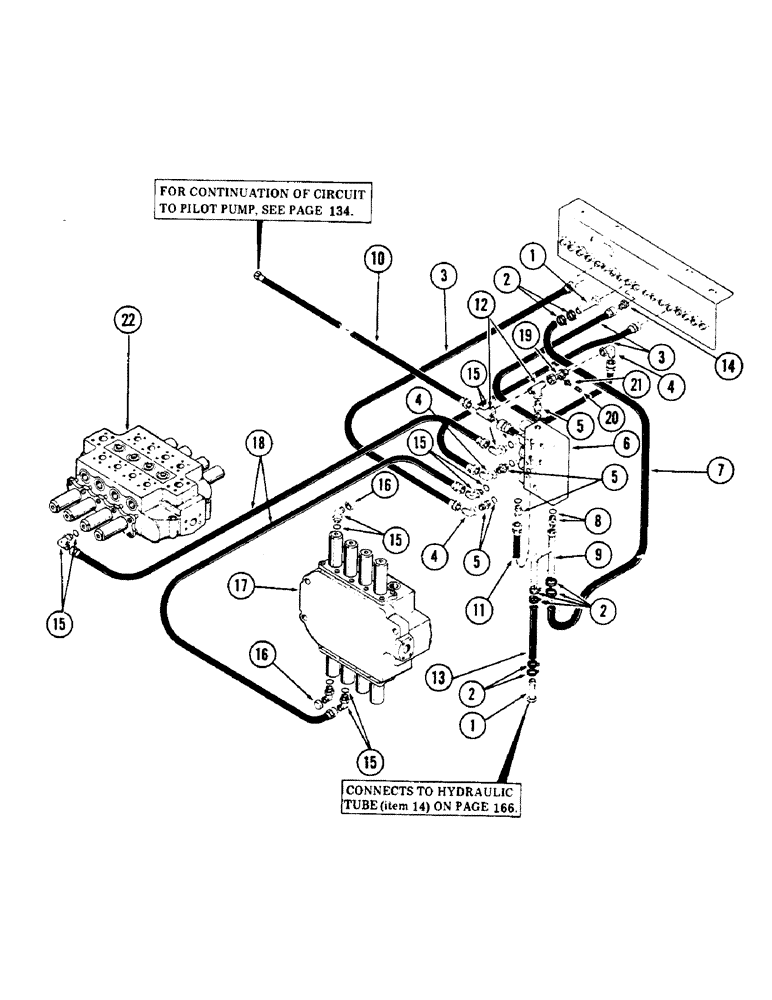

Запчасти Case 50 (144) - DRIVE LOCK, PILOT PRESSURE AND RETURN TUBING, THRU SOLENOID MONOBLOCK VALVE(USED ON UNITS W/ SN. (35) - HYDRAULIC SYSTEMS

1

S217427

TUBE - hydraulic 0.5" OD x 3" L

2шт.

2

214-25

CLAMP

- hose

4шт.

3

S227397

HOSE ASSY.

HOSE - high pressure 3/8" ID x 70" long (With 9/16" - 18 female pressed on couplings)

3шт.

4

218-980

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

- 90 degrees swivel (3/8" tube) 9/16" - 18 male x 9/16" - 18 female 37 degrees flared

3шт.

5

S7961

CONNECTOR, ELEC

CONNECTOR - (3/8" tube) 9/16" - 18 male x 9/16" - 18 male 37 degrees flared

4шт.

S6059

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

"O" RING - .468" ID x .624" OD

4шт.

6

REF

INSTRUCTION

VALVE - solenoid relief (For breakdown, see figure 244)

1шт.

7

S202579

HOSE - low pressure (Bulk) 1 piece 1/2" ID x 61" long (61")

1шт.

8

218-5351

HYD CONNECTOR,3/4"-16, 37 Degree x 9/16"-18, O-Ring

CONNECTOR - (1/2" tube) 9/16" - 18 male x 3/4" - 16 male 37 degrees flared

1шт.

S6059

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

"O" RING - .468" ID x .624" OD

1шт.

9

S232141

TUBE - hydraulic

1шт.

10

S232015

HOSE - high pressure 3/8" ID x 80" long (With 9/16" - 18 female pressed on couplings)

1шт.

11

S99421

HOSE ASSY.

HOSE - high pressure 3/8" ID x 23" long (With 9/16" - 18 female pressed on couplings)

1шт.

12

218-836

TEE,37 Degree, 9/16"-18 x 9/16"-18, Fem Sw Br

- (3/8" tube) 9/16" - 18 male x 9/16" - 18 female x 9/16" - 18 male 37 degrees flared

2шт.

13

S202579

HOSE - low pressure (Bulk) 1 piece 1/2" ID x 15" long (15")

1шт.

14

218-792

REDUCER,37 Degree, 1/2" x 3/8" Tube

ADAPTER - reducing (1/2" x 3/8" tube reduction) 9/16" - 18 male 37 degrees flared

1шт.

218-344

TUBE NUT,37 Degree, 3/4"-16, Type B

NUT - tube (1/2" tube) 3/4" - 16 female 37 degrees flared

1шт.

15

76344

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 ORB

Adjustable (3/8" tube) 90º, 9/16"-18, 37º x 9/16"-18, O-Ring

6шт.

S6059

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

"O" RING - .468" ID x .624" OD

6шт.

16

218-754

CAP,37 Degree, 9/16"-18

- (3/8" tube) 9/16" - 18 female 37 degrees flared (Used on units without optional fast hoist)

2шт.

17

REF

INSTRUCTION

VALVE - 4-spool main control (For breakdown, see figure 262)

1шт.

18

S227396

HOSE ASSY.

HOSE - high pressure 3/8" ID x 50" long (With 9/16" - 18 female pressed on couplings)

2шт.

19

S233608

TUBE - hydraulic 0.375" OD x 3.05" L

1шт.

20

S206608

CAP

1шт.

21

S206607

DISC

ONNECT - quick

1шт.

22

REF

INSTRUCTION

VALVE - 4-spool main control (For breakdown, see figure 260)

1шт.
