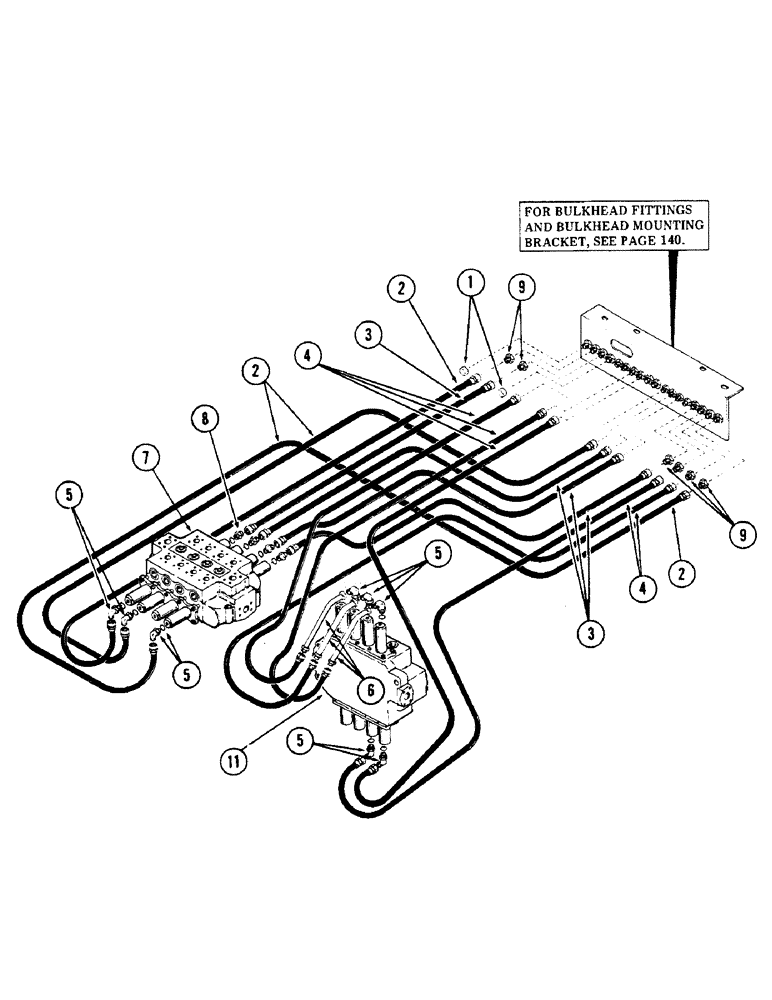

Запчасти Case 50 (142) - PILOT TUBING FROM BULKHEAD TO MAIN CONTROL VALVES, (USED ON UNITS W/ SN. 6279926-6280344) (35) - HYDRAULIC SYSTEMS

1

218-755

CAP,37 Degree, 3/4"-16

(1/2" tube) 37º, 3/4"-16

2шт.

2

S232015

HOSE - high pressure 3/8" ID x 80" long (With 9/16" - 18 female pressed on couplings)

3шт.

3

S227396

HOSE ASSY.

HOSE - high pressure 3/8" ID x 50" long (With 9/16" - 18 female pressed on couplings)

4шт.

4

S232016

HOSE - high pressure 3/8" ID x 100" long (With 9/16" - 18 female pressed on couplings)

5шт.

5

76344

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 ORB

Adjustable (3/8" tube) 90º, 9/16"-18, 37º x 9/16"-18, O-Ring

8шт.

S6059

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

"O" RING - .468" ID x .624" OD

8шт.

6

S232140

TUBE - hydraulic 38" OD

3шт.

7

REF

INSTRUCTION

VALVE - 4-spool main control (For breakdown, see figure 260)

1шт.

8

S7961

CONNECTOR, ELEC

CONNECTOR - (3/8" tube) 9/16" - 18 male x 9/16" - 18 male 37 degrees flared

4шт.

S6059

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

"O" RING - .468" ID x .624" OD

4шт.

9

218-792

REDUCER,37 Degree, 1/2" x 3/8" Tube

ADAPTER - reducing (1/2" x 3/8" tube reduction) 9/16" - 18 male 37 degrees flared

6шт.

218-344

TUBE NUT,37 Degree, 3/4"-16, Type B

NUT - tube (1/2" tube) 3/4" - 16 female 37 degrees flared

6шт.

10

S8980

PLUG

- "O" ring (3/8" tube) 5/8" - 18 male into hoist and crowd valve cap (Not illustrated)

1шт.

S6059

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

"O" RING - .468" ID x .624" OD

1шт.

11

REF

INSTRUCTION

VALVE - 4-spool main control (For breakdown, see figure 262)

1шт.
