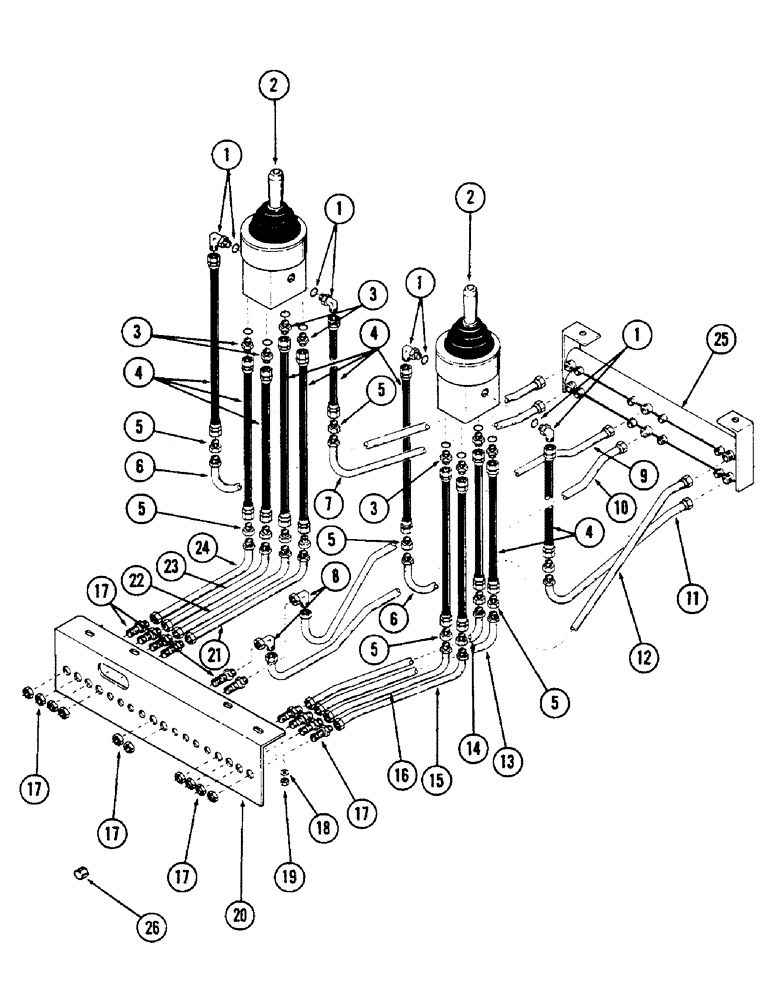

Запчасти Case 50 (140) - PILOT TUBING FROM HAND MODULATOR CONTROL TO BULKHEAD, (USED ON UNITS W/ SN. 6279926-6280344) (35) - HYDRAULIC SYSTEMS

1

76344

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 ORB

Adjustable (3/8" tube) 90º, 9/16"-18, 37º x 9/16"-18, O-Ring

4шт.

S6059

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

"O" RING - .468" ID x .624" OD

4шт.

2

REF

INSTRUCTION

VALVE - modulator hand control (For breakdown, see figure 252)

2шт.

S232260

SPACER - (1 per hand control)

2шт.

113-5

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

CPSW - 1/4" NC x 1-1/4" gr 5 (Valve mounting)

8шт.

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

8шт.

3

S7961

CONNECTOR, ELEC

CONNECTOR - (3/8" tube) 9/16" - 18 male x 9/16" - 18 male 37 degrees flared

8шт.

S6059

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

"O" RING - .468" ID x .624" OD

8шт.

4

S227395

HOSE

- high pressure 3/8" ID x 21" long (With 9/16" - 18 female pressed on couplings)

12шт.

5

218-792

REDUCER,37 Degree, 1/2" x 3/8" Tube

ADAPTER - reducing (1/2" x 3/8" tube reduction) 9/16" - 18 male 37 degrees flared

12шт.

218-344

TUBE NUT,37 Degree, 3/4"-16, Type B

NUT - tube (1/2" tube) 3/4" - 16 female 37 degrees flared

12шт.

6

S232213

TUBE - hydraulic 0.5" OD x 8.21, 6.16" L

1шт.

7

S232207

TUBE - hydraulic 0.5" OD x 7.11, 8.76" L

1шт.

8

218-5230

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

- 90 degrees swivel (1/2" tube) 3/4" - 16 male x 3/4" - 16 male 37 degrees flared

2шт.

9

S232198

TUBE - hydraulic 0.5" OD

1шт.

10

S232197

TUBE - hydraulic 0.5" OD

1шт.

11

S232212

TUBE - hydraulic 0.5" OD x 7.1, 8.2" L

1шт.

12

S232218

TUBE - hydraulic 0.5" OD

1шт.

13

S232204

TUBE - hydraulic 0.5" OD x 14.95, 2.75" L

1шт.

14

S232203

TUBE - hydraulic 0.5" OD x 13.69, 2.76" L

1шт.

15

S232206

TUBE - hydraulic 0.5" OD

1шт.

16

S232205

TUBE - hydraulic 0.5" OD x 12.63, 2.76" L

1шт.

17

218-674

FITTING,Blkhd, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree

BULKHEAD - straight (1/2" tube) 3/4" - 16 male x 3/4" - 16 male 37 degrees flared (Includes nut)

10шт.

18

95-8

WASHER,1/2"

flat 1/2"

4шт.

19

131-70

NUT,1/2"-13, GB

NUT - self locking 1/2" NC

4шт.

20

S511373

BRACKET - bulkhead mounting

1шт.

21

S232192

TUBE - hydraulic 0.5" OD

1шт.

22

S232191

TUBE - hydraulic 2.66" L

1шт.

23

S232190

TUBE - hydraulic

1шт.

24

S232189

TUBE - hydraulic 0.5" OD x 12.62, 2.66" L

1шт.

25

REF

INSTRUCTION

MANIFOLD ASSEMBLY - (See ref 10 on figure 138)

1шт.

26

218-754

CAP,37 Degree, 9/16"-18

- (3/8" tube) 9/16" - 18 female

1шт.
