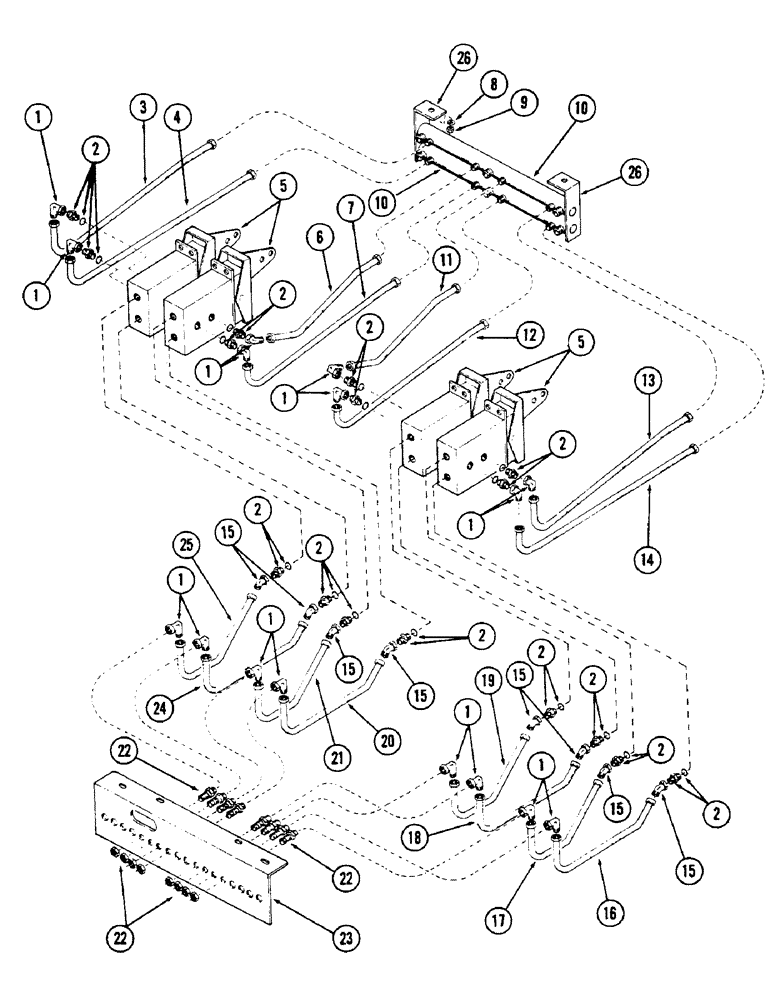

Запчасти Case 50 (138) - PILOT TUBING FROM FOOT MODULATOR CONTROL TO BULKHEAD, (USED ON UNITS W/ SN. 6280345 & AFTER) (35) - HYDRAULIC SYSTEMS

1

218-980

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

- 90 degrees swivel (3/8" tube) 9/16" - 18 male x 9/16" - 18 female 37 degrees flared

16шт.

2

S7961

CONNECTOR, ELEC

CONNECTOR - (3/8" tube) 9/16" - 18 male x 9/16" - 18 male 37 degrees flared

16шт.

S6059

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

"O" RING - .468" ID x .624" OD

16шт.

3

S232217

TUBE - hydraulic 0.38" OD

1шт.

4

S232211

TUBE - hydraulic 0.38" OD x 11.4, 1.7" L

1шт.

5

S511382

VALVE

- modulator foot control (For breakdown, see figure 254)

4шт.

6

S232216

TUBE - hydraulic 0.38" OD

1шт.

7

S232209

TUBE - hydraulic 0.38" OD x 10.28, 1.7" L

1шт.

8

95-8

WASHER,1/2"

flat 1/2"

2шт.

9

131-70

NUT,1/2"-13, GB

NUT - self locking 1/2" NC

2шт.

10

S233091

TUBE - hydraulic (Supersedes manifold assembly S511387) 1.25" OD x 23.68, 0.25" L

2шт.

11

S232216

TUBE - hydraulic 0.38" OD

1шт.

12

S232210

TUBE - hydraulic 0.38" OD x 10.5, 1.65" L

1шт.

13

S232217

TUBE - hydraulic 0.38" OD

1шт.

14

S232211

TUBE - hydraulic 0.38" OD x 11.4, 1.7" L

1шт.

15

218-5172

ELBOW,45 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Female JIC

- 45 degrees swivel (3/8" tube) 9/16" - 18 male x 9/16" - 18 female 37 degrees flared

8шт.

16

S232201

TUBE - hydraulic 0.38" OD

1шт.

17

S232202

TUBE - hydraulic 0.38" OD

1шт.

18

S232196

TUBE - hydraulic (Supersedes S232199) 0.38" OD

1шт.

19

S232200

TUBE - hydraulic

1шт.

20

S232196

TUBE - hydraulic 0.38" OD

1шт.

21

S232195

TUBE - hydraulic 0.38" OD x 3.85, 6.73" L

1шт.

22

218-673

FITTING,Blkhd, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree

FIT STL BULKHD .375MJ .375MJ

8шт.

23

REF

INSTRUCTION

BRACKET - bulkhead mounting (See ref 20 on figure 140)

1шт.

24

S232194

TUBE - hydraulic 0.38" OD x 2.18, 6.18" L

1шт.

25

S232193

TUBE - hydraulic 0.38" OD x 6.34, 4.01" L

1шт.

26

S109981

BRACKET - (Supersedes manifold assembly S511387)

2шт.
