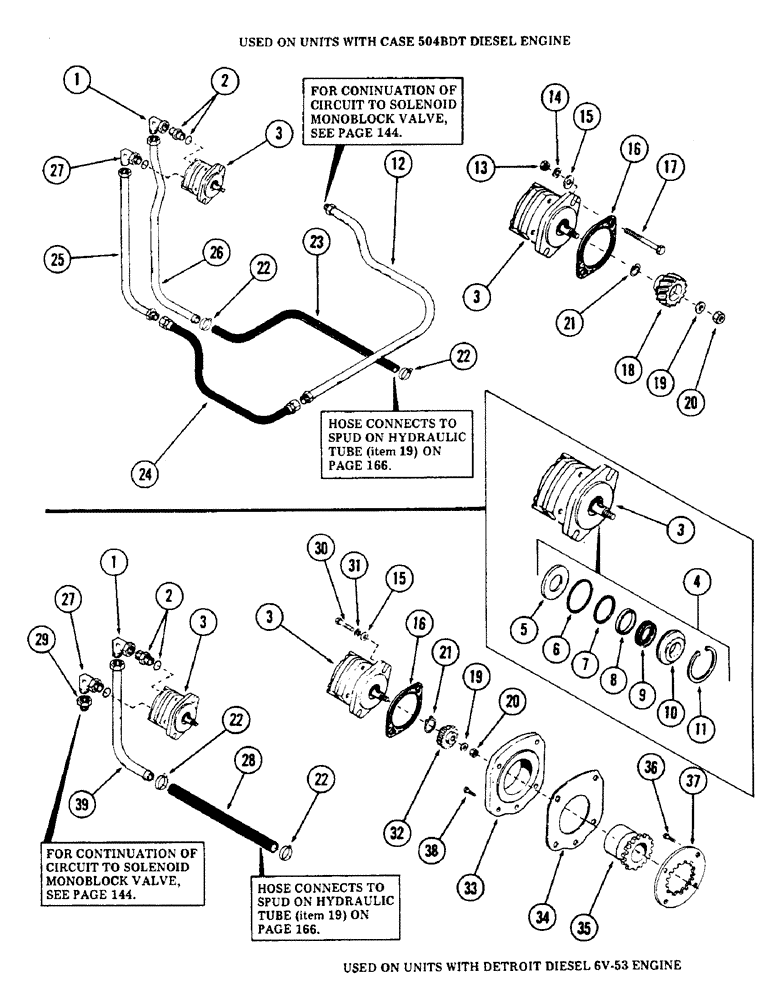

Запчасти Case 50 (134) - PILOT PRESSR.TUBING FROM AUXILIARY PUMP, (USED ON UNITS W/ SN. 6279926-6280344)(SN/ 6279926 & AFTER) (35) - HYDRAULIC SYSTEMS

1

S10359

ELBOW

- 90 degrees swivel (3/4" tube) 1-1/16" - 12 male x 1-1/16" - 12 female 37 degrees flared)

1шт.

2

S7968

CONNECTOR, ELEC

CONNECTOR - (3/4" tube) 1-1/16" - 12 male x 1-1/16" - 12 male 37 degrees flared

1шт.

S6065

RING

"O" RING - .924" ID x 1.156" OD

1шт.

3

A139692

PUMP

- pilot, Includes: Ref. 4 - 11

1шт.

4

A45378

SEAL

KIT - pump seal, Includes: Ref. 5 - 11

1шт.

5

A45375

WASHER

RING - back-up

1шт.

6

A59066

O-RING,1.239" ID x 1.379" OD

"O" RING - 1.250" ID x 1.375" OD

1шт.

7

A64434

O-RING,0.93" ID x 1.142" x 0.106"

"O" RING - .937" ID x 1.125" OD

1шт.

8

A45376

COLLAR

- "O" ring

1шт.

9

A45374

RING

- quad

1шт.

10

A45377

SEAL

RETAINER - seal

1шт.

11

A32181

SNAP RING,1.375", Int, #137

Ring, Snap, 1.375", Int, #137

1шт.

12

S511379

TUBE - hydraulic 0.75" OD

1шт.

13

REF

INSTRUCTION

NUT - 3/8" NC (Existing hardware from engine)

2шт.

14

REF

INSTRUCTION

WASHER - lock 3/8" (Existing hardware from engine)

2шт.

15

196-1

WASHER,13/32" x 13/16" x .089", HDN

- flat 3/8"

2шт.

16

A58617

GASKET

1шт.

17

113-252

BOLT,Hex, 3/8" - 16 x 3-3/4", Gr 5

CPSW - 3/8" NC x 3-3/8" gr 5

2шт.

18

L43703

GEAR

1шт.

19

195-530

WASHER,7/16"

- flat 1/2"

1шт.

20

131-58

LOCK NUT,1/2"-20, G5

NUT - self locking 1/2" NC

1шт.

21

D32101

SNAP RING,#62, Ext

Ring, Snap, , onto pump shaft #62, Ext

1шт.

22

214-255

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm

2шт.

23

S202580

HOSE - low pressure (Bulk) 1 piece 3/4" ID x 27" long (27")

1шт.

24

S8578

HOSE

- high pressure 1/2" ID x 26" long (With 7/8" - 14 female pressed on couplings)

1шт.

25

S232108

TUBE - hydraulic

1шт.

26

S232109

TUBE - hydraulic 0.75" OD

1шт.

27

S7941

ELBOW

- 90 degrees adjustable (3/4" tube) 1-1/16" - 12 1-1/16" - 12 male - 37 degrees flared

1шт.

S6065

RING

"O" RING - .406" ID x .547" OD

1шт.

28

S202580

HOSE - low pressure (Bulk) 1 piece 3/4" ID x 24" long (24")

1шт.

29

218-795

REDUCER,37 Degree, 3/4" x 3/8" Tube

ADAPTER - reducing (3/4" x 3/8" tube reduction) 9/16" - 18 male 37 degrees flared

1шт.

218-346

TUBE NUT,37 Degree, 1 1/16"-12, Type B

NUT - tube (1/2" tube) 3/4" - 16 female 37 degrees flared

1шт.

30

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

(Pump to adapter) Hex, 3/8"-16 x 1 1/4", G5, Full Thd

2шт.

31

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

32

S108809

SPROCKET ASSY.

SPROCKET

1шт.

33

S108812

ADAPTER

1шт.

34

S108813

GASKET

1шт.

35

S108810

COUPLING

1шт.

36

S108817

BOLT

CPSW - (Mounts disc to cam shaft gear)

4шт.

37

S86382

GEAR

DISC - (Supersedes S108811)

1шт.

38

113-310

BOLT,Hex, 7/16" - 14 x 1", Gr 5

CPSW - 1/2" NC x 1" gr 5 (Adapter to flywheel housing)

4шт.

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

113-424

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

CPSW - 7/16" NC x 1" gr 5 (Adapter to flywheel housing)

1шт.

192-22

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.

39

S232371

TUBE - hydraulic 0.75" OD x 12.03, 3.03" L

1шт.
