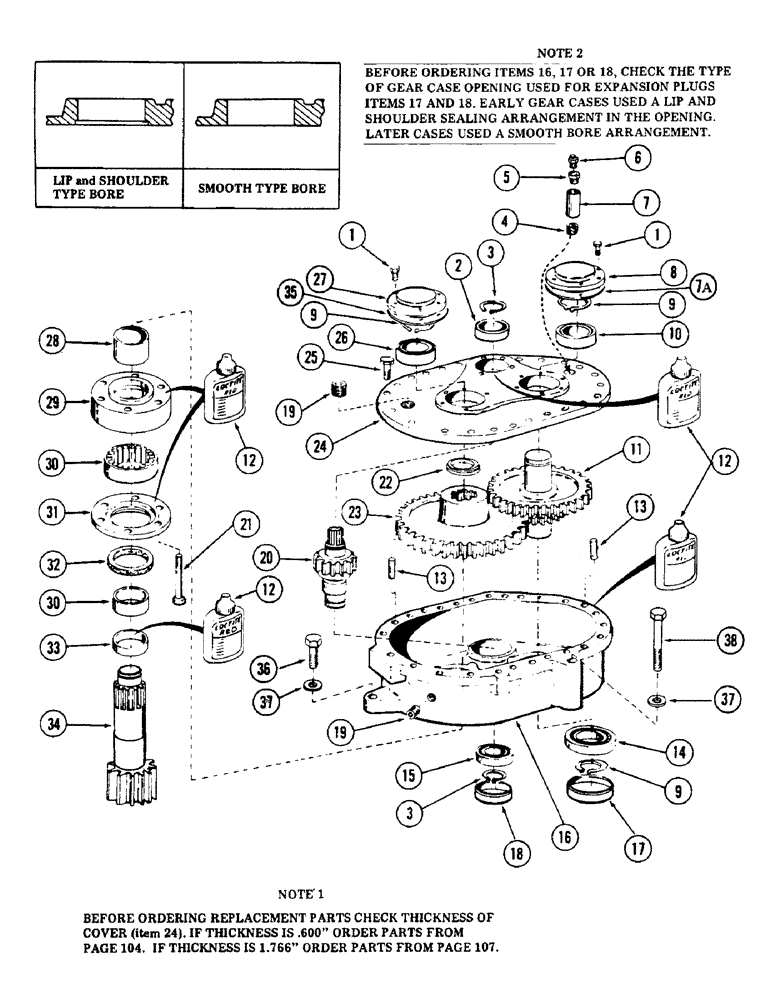

Запчасти Case 50 (106) - SWING REDUCER, (USED ON UNITS WITH SERIAL NUMBER 6280131 & AFTER) (SN. 6279926 & AFTER) (35) - HYDRAULIC SYSTEMS

S955796

REDUCER

- swing (Before ordering parts see note on page 104 and 106), Includes: Ref. 1 - 16A

1шт.

1

113-172

BOLT,Hex, 5/16" - 18 x 1", Gr 8

12шт.

2

S105964

CYLINDER END CAP

BEARING - ball

1шт.

3

A7409

SNAP RING,#137, Ext

RING, snap, #137, Ext

2шт.

4

221-1158

FITTING

NIPPLE - 3/8" NPT x 1" long (Replaces 221-158)

1шт.

5

221-85

REDUCER,Hex, 3/8" x 1/8" NPT

BUSHING - reducer 3/8" NPT male x 1/8" NPT female

1шт.

6

L33264

BREATHER

VENT - breather

1шт.

7

S216625

TUBE,60" L

- oil breather

1шт.

7

S103261

GASKET

1шт.

8

S402194

CAP

- bearing

1шт.

9

A17903

SNAP RING,#156, Ext

Ring, Snap, #156, Ext

3шт.

10

S86268

BALL BEARING,40mm ID x 80mm OD x 18mm W

BEARING - ball

1шт.

11

S612548

GEAR

- cluster (Intermediate)

1шт.

12

S96077

SEAL

- 10 CC bottle (Red) (Replaces gaskets) (Substitutes must not be used)

1шт.

13

S97539

DOWEL

2шт.

14

S98375

BALL BEARING,40 mm ID x 90 mm OD x 23 mm

BEARING - ball

1шт.

15

A29183

BALL BEARING,34.99mm ID x 71.99mm OD x 16.94mm W

BEARING - ball

1шт.

16

S613678

CASE

- gear (Used on later units with smooth bore opening)

1шт.

Before ordering refs 16, 17 or 18, check the type of gear case opening used for expansion plugs refs 17 and 18. Early gear cases used a lip and shoulder sealing arrangement in the opening. Later cases used a smooth bore arrangement.

1шт.

16a

S615133

PACKAGE

GEAR CASE KIT - (Required for replacement of early gear Case S606331 with lip and shoulder sealing arrangement)

1шт.

Before ordering refs 16, 17 or 18, check the type of gear case opening used for expansion plugs refs 17 and 18. Early gear cases used a lip and shoulder sealing arrangement in the opening. Later cases used a smooth bore arrangement.

1шт.

S613678

CASE

- gear

1шт.

S114620

PLUG

- expansion

1шт.

S114619

PLUG

- expansion

1шт.

221-43

PLUG

- pipe 3/8" NPT (Socket head)

2шт.

17

S114620

PLUG

- expansion (Supersedes 41-58) (Used on later units with smooth bore openings)

1шт.

Before ordering refs 16, 17 or 18, check the type of gear case opening used for expansion plugs refs 17 and 18. Early gear cases used a lip and shoulder sealing arrangement in the opening. Later cases used a smooth bore arrangement.

1шт.

41-58

PLUG,Exp, 3 3/4"

- expansion (Used on early units with lip and shoulder sealing arrangement)

1шт.

Before ordering refs 16, 17 or 18, check the type of gear case opening used for expansion plugs refs 17 and 18. Early gear cases used a lip and shoulder sealing arrangement in the opening. Later cases used a smooth bore arrangement.

1шт.

18

S114619

PLUG

- expansion (Supersedes 41-48) (Used on later units with smooth bore opening)

1шт.

Before ordering refs 16, 17 or 18, check the type of gear case opening used for expansion plugs refs 17 and 18. Early gear cases used a lip and shoulder sealing arrangement in the opening. Later cases used a smooth bore arrangement.

1шт.

41-48

PLUG,Exp, 3"

- expansion (Used on early units with lip and shoulder sealing arrangement)

1шт.

Before ordering refs 16, 17 or 18, check the type of gear case opening used for expansion plugs refs 17 and 18. Early gear cases used a lip and shoulder sealing arrangement in the opening. Later cases used a smooth bore arrangement.

1шт.

19

221-1843

PLUG

- pipe 3/8" NPT (Socket head) (Replaces 221-843)

2шт.

20

S612550

SHAFT

PINION AND SHAFT - input

1шт.

21

26-1052

BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 8

- 5/8" NC x 3-1/4" gr 8

6шт.

22

S235525

SPACER

-, Serial Range: bearing-gear

1шт.

23

S612546

GEAR

- drive

1шт.

24

S612551

COVER

- gear case

1шт.

25

26-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 8

- 3/8" NC x 1-3/4" gr 8

22шт.

26

S238147

SPHERICAL BEARING,40mm ID x 90mm OD x 23mm

BEARING, roller (Supersedes S98375)

1шт.

27

S214012

CAP

- bearing

1шт.

28

S235526

SPACER

1шт.

29

S508461

RETAINER

- roller bearing, Includes: Ref. 30 - 35

1шт.

30

S112817

ROLLER BEARING,75mm ID x 130mm OD x 41.28mm W

BEARING AND RACE ASSEMBLY

1шт.

31

S508460

RETAINER

- oil seal

1шт.

32

S98415

OIL SEAL

- oil

1шт.

33

S225232

OIL SEAL

RING

1шт.

34

S612544

SHAFT

AND GEAR - output

1шт.

35

S85842

GASKET

1шт.

36

26-1432

BOLT,Hex, 7/8" - 9 x 2", Gr 8

- 7/8" NC x 2" gr 8

1шт.

37

S92341

WASHER

- flat 7/8" (Hardened steel)

3шт.

38

26-1492

BOLT,Hex, 7/8" - 9 x 5-3/4", Gr 8

- 7/8" NC x 5-3/4" gr 8

2шт.
