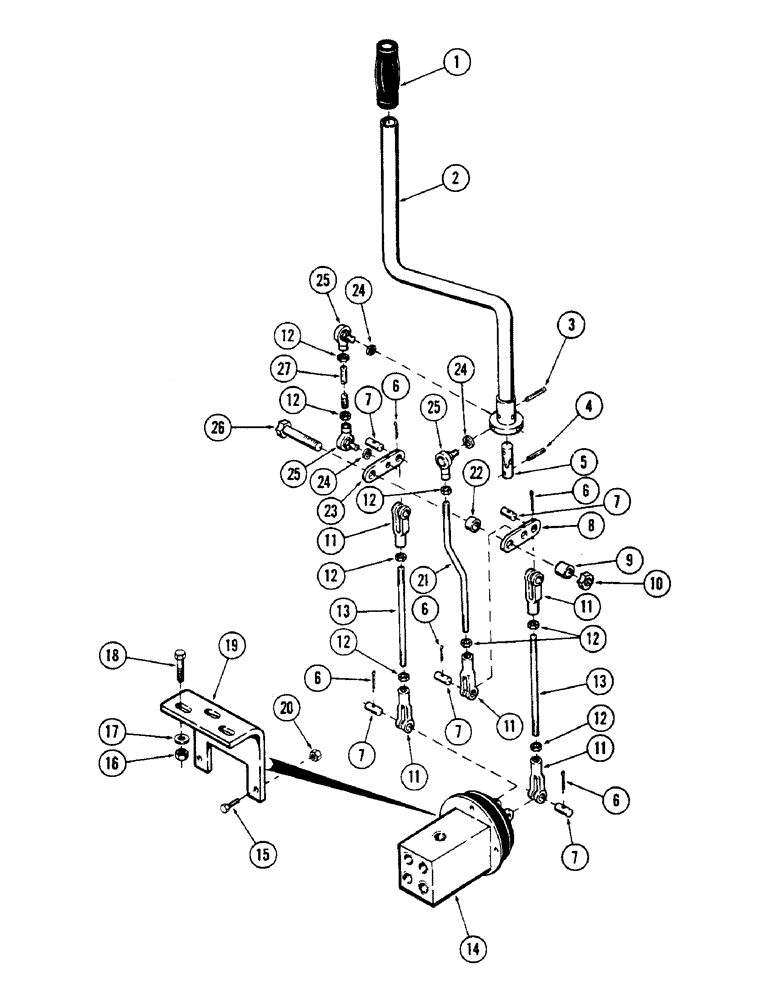

Запчасти Case 50 (152) - CONTROL HANDLE AND ATTACHING PARTS, (USED ON UNITS W/ SN. 6280345 & AFTER) (SN. 6279926 & AFTER) (33) - BRAKES & CONTROLS

1

S116544

GRIP

- handle (Supersedes S115723)

1шт.

2

S513190

HANDLE

- control

1шт.

3

138-138

LOCK PIN,1/4" x 1 1/2", Slotted

PIN, 1/4" x 1 1/2", Slotted

1шт.

4

138-134

LOCK PIN,1/4" x 1", Slotted

PIN, 1/4" x 1", Slotted

1шт.

5

S234960

YOKE

JOINT - universal

1шт.

6

132-56

COTTER PIN,Ext Prong Sq Cut, 1/8" x 2"

Pin, Split (Cotter), 1/8" x 2"

5шт.

7

S105940

PIN,11.02mm OD x 22.23mm L

- clevis

5шт.

8

S238601

LINKAGE

BAR - (Supersedes S236861)

1шт.

9

S114640

SPACER

1шт.

10

129-145

JAM NUT,Jam, 1/2"-13, G5

1шт.

11

S66383

YOKE

5шт.

12

86585245

SPECIAL NUT,JAM, 5/8" - 18

- jam 3/8" NF

8шт.

13

S81828

ROD

STUD

2шт.

14

REF

INSTRUCTION

VALVE - control (For breakdown, see figure 256)

1шт.

15

113-4

BOLT,Hex, 1/4" - 20 x 1", Gr 5

4шт.

16

131-52

NUT,3/8"-16, GC

NUT - self locking 3/8" NC

3шт.

17

195-103

WASHER,5/16"

- flat 3/8"

3шт.

18

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

3шт.

19

S513598

BRACKET

- control valve mounting

1шт.

20

86625061

NUT,1/4"-20, GB

NUT - self locking 1/4" NC

4шт.

21

S236859

ROD

- threaded

1шт.

22

S114641

SPACER

1шт.

23

S238602

LINKAGE

BAR - (Supersedes S236937)

1шт.

24

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

25

S236680

BALL JOINT

BALLJOINT

2шт.

26

113-426

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 5

Hex, 1/2"-13 x 2 3/4", G5

1шт.

27

S91953

ROD

STUD

1шт.

6

132-56

COTTER PIN,Ext Prong Sq Cut, 1/8" x 2"

Pin, Split (Cotter), 1/8" x 2"

5шт.
