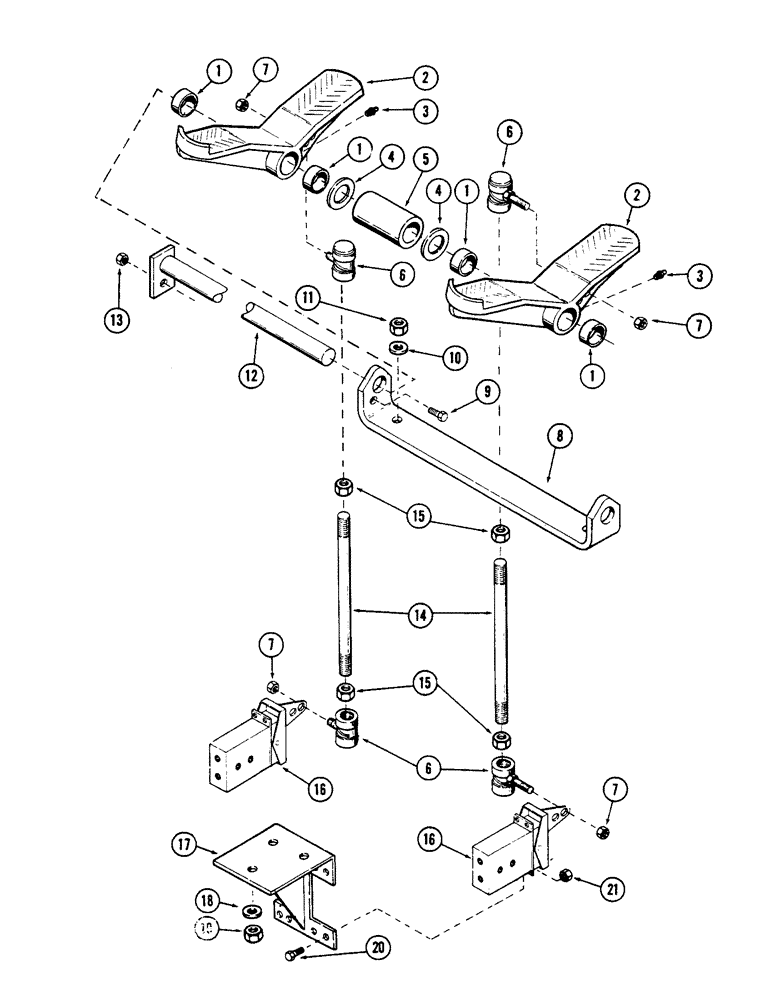

Запчасти Case 50 (136) - FOOT PEDAL AND CONTROL LINKAGE, (USE WITH MODULATOR VALVES) (USED ON UNITS W/ SN. 6279926-6280344) (33) - BRAKES & CONTROLS

1

S63168

NEEDLE BEARING,0.625" ID x 0.8125" OD x 0.5"

BEARING - needle

8шт.

2

S511074

PEDAL

4шт.

3

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

4шт.

4

195-41

WASHER,5/8"

6шт.

5

S64465

SPACER

2шт.

6

S215594

BALL

JOINT - ball

8шт.

7

231-2446

NUT,3/8"-24, GB

NUT - self locking 3/8" NF

8шт.

8

S232225

BRACKET - foot pedal mounting

2шт.

9

113-4

BOLT,Hex, 1/4" - 20 x 1", Gr 5

2шт.

10

95-8

WASHER,1/2"

flat 1/2"

4шт.

11

131-70

NUT,1/2"-13, GB

NUT - self locking 1/2" NC

4шт.

12

S218965

SHAFT ASSY.

SHAFT ASSEMBLY

2шт.

13

86625061

NUT,1/4"-20, GB

NUT - self locking 1/4" NC

2шт.

14

S87714

ROD,THREADED

ROD

4шт.

15

86585245

SPECIAL NUT,JAM, 5/8" - 18

- 3/8" NF

8шт.

16

REF

INSTRUCTION

VALVE - modulator foot (For breakdown, see figure 254)

4шт.

17

S232163

BRACKET - mounting

2шт.

18

95-8

WASHER,1/2"

flat 1/2"

6шт.

19

131-70

NUT,1/2"-13, GB

NUT - self locking 1/2"

6шт.

20

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

16шт.

21

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - self locking 5/16" (Replaces 131-69)

16шт.
