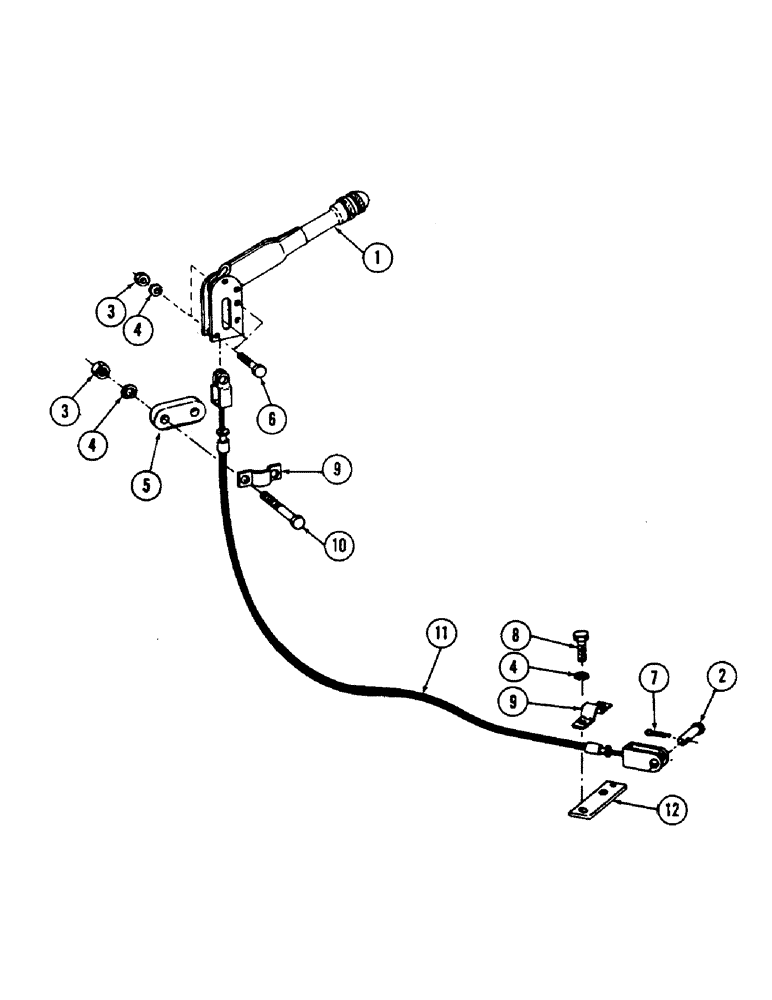

Запчасти Case 50 (110) - SWING BRAKE CONTROL, (S/N 6279926 AND AFTER) (33) - BRAKES & CONTROLS

1

S26639

LEVER

- hand brake

1шт.

2

S10715

PIN

- clevis 1/4" x .851" grip length

1шт.

3

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4шт.

4

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.

5

S99304

SPACER

1шт.

6

113-213

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

2шт.

7

132-24

COTTER PIN,3/32" x 1/2"

PIN, SPLIT (COTTER), 3/32" x 1/2"

1шт.

8

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

9

A55980

CLAMP

2шт.

10

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

11

S510475

CABLE

- brake

1шт.

12

S68977

CLAMP

SPACER

1шт.
