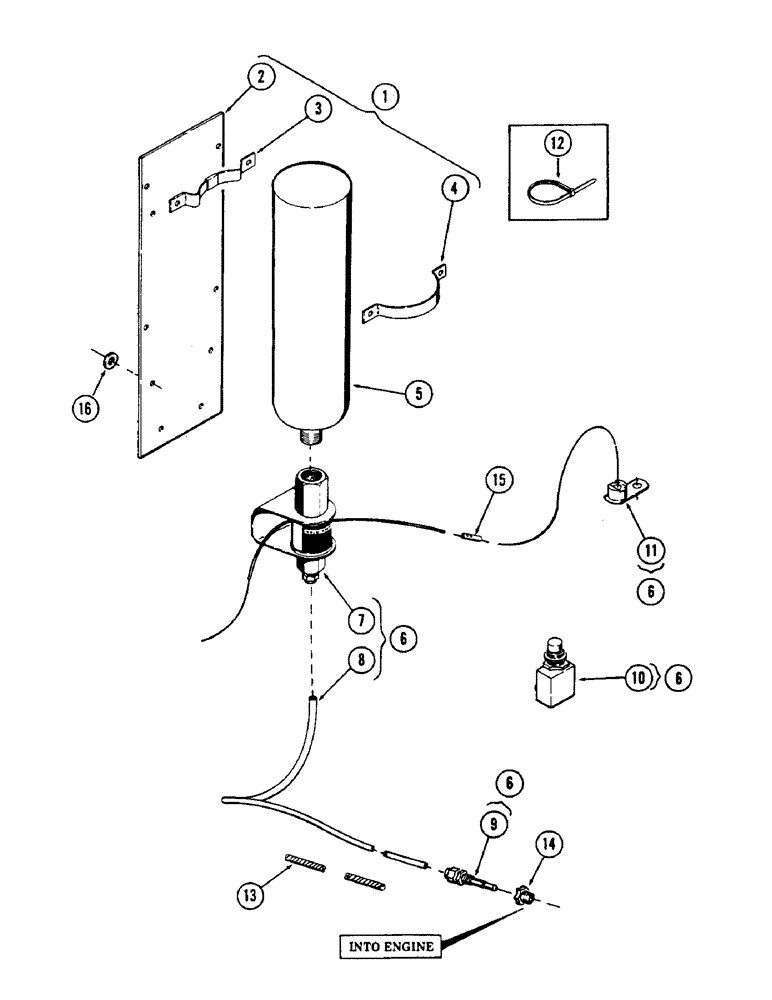

Запчасти Case 50 (316) - COLD WEATHER STARTING KIT, (S/N 6279926 AND AFTER) (10) - ENGINE

S205216

THERMOSTART

KIT - cold weather starting, Includes: Ref. 1 - 11

1шт.

1

S116432

PLATE

- mounting assembly (Includes all required hardware), Includes: Ref. 2 - 4

1шт.

2

S116433

PLATE

1шт.

3

S116435

BRACKET - cylinder mount

2шт.

4

S116435

CLAMP - cylinder

2шт.

5

D55767

CYLINDER

- cold start refill

1шт.

6

S116436

KIT

- cold start accessary, Includes: Ref. 7

1шт.

7

S96079

VALVE

- cold start actuator

1шт.

L35283

PACKAGE, REPAIR

KIT - actuator

1шт.

8

L35281

TUBE,0.125" OD x 60" L

- nylon 1/8" OD x 60"

1шт.

9

S116437

JET

ASSEMBLY

1шт.

10

S116439

SWITCH

- electric push button

1шт.

11

S116438

CASE

THERMOSTAT - circuit breaking

1шт.

12

L18331

CABLE TIE,375.9mm L, Nylon, Black

STRAP, CABLE

2шт.

13

S62256

LOOM

- (Bulk) 1 piece x 80" long (Over tube for protection) (80")

1шт.

14

217-43

REDUCER,1/2" - 14 NPTF x 1/4" - 18 Fem NPTF

1шт.

15

223-250

ROD, CONNECTING

CONNECTOR - female electrical

3шт.

16

195-102

WASHER,1/4"

- flat (Used as spacer) 1/4"

1шт.

17

217-1014

ELBOW,1/8" - 27 Female x 1/8" - 27 Male

- 90 degrees street 1/8" NPT male x 1/8" NPT female (Not illustrated)

1шт.

18

221-84

REDUCER,Hex, 1/4" x 1/8" NPT

BUSHING - reducing 1/4" NPT male x 1/8" NPT female (Not illustrated)

1шт.
