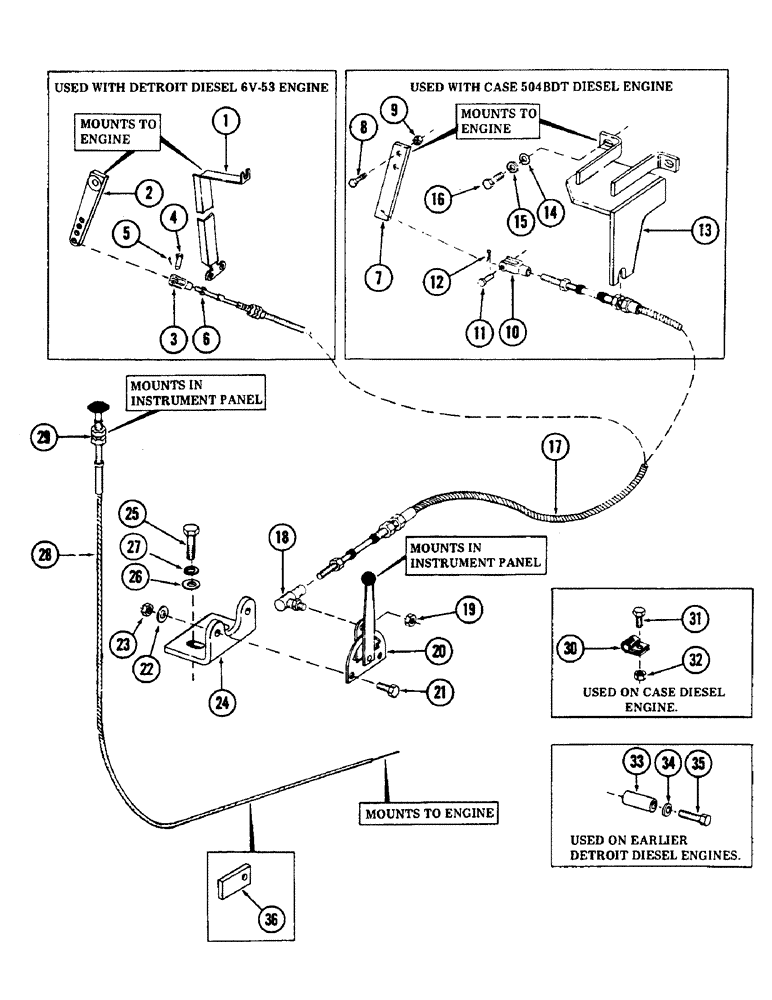

Запчасти Case 50 (062) - THROTTLE AND SHUT-OFF CONTROL CABLES, (S/N 6279926 AND AFTER (10) - ENGINE

1

S227335

BRACKET

- cable support

1шт.

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

(Mounts bracket to engine) Hex, 3/8"-16 x 1 1/2", G5

2шт.

129-164

JAM NUT,Hex, 7/16" - 20, Gr 5

Jam, 7/16"- 20, G5 (Between throttle and pump)

1шт.

2

S211671

LEVER

- throttle control

1шт.

3

S82381

YOKE

1шт.

4

S10736

PIN

- clevis 5/16" x .734" grip length

1шт.

5

132-46

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

6

425-154

JAM NUT,Jam, 1/4"-28, G5

1шт.

7

S92444

BAR

LEVER - throttle control

1шт.

8

113-9

BOLT,Hex, 1/4" - 20 x 7/8", Gr 5

CPSW - 1/4" NC x 7/8" gr 5

2шт.

9

86625061

NUT,1/4"-20, GB

NUT - self locking 1/4" NC

2шт.

10

213-2

ADJUSTABLE CLEVIS,1/4"-28 x 2"

YOKE

1шт.

11

S10714

CLEVIS PIN

PIN - clevis 1/4" x .648" grip length

1шт.

12

132-324

COTTER PIN,7/64" x 3/4"

Pin, Split (Cotter), 7/64" x 3/4"

1шт.

13

S505829

BRACKET

- cable support

1шт.

14

195-525

WASHER,3/8", SAE

- flat 7/16"

2шт.

15

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

16

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

17

S238507

CABLE

- throttle - (Supersedes S220635)

1шт.

18

A10329

BALL JOINT,1/4" - 28 x 1"

JOINT - ball

1шт.

19

131-498

LOCK NUT,1/4"-28, GB

NUT - self locking 1/4" NF

1шт.

20

S91894

CONTROL LEVER

LEVER - throttle

1шт.

21

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

22

195-518

WASHER,1/4", SAE

- flat 1/4" (Replaces S7380)

2шт.

23

131-70

NUT,1/2"-13, GB

NUT - self locking 1/4" NC

2шт.

24

S231357

ANGLE

- throttle lever mounting

1шт.

25

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

CPSW - 3/8" NC x 1-1/4" gr 8

2шт.

26

195-103

WASHER,5/16"

- flat 1/4"

2шт.

27

192-21

LOCK WASHER,3/8"

WASHER - lock 1/4"

2шт.

28

S231430

CABLE

- control (For engine shut-off on Case and Detroit diesel engines)

1шт.

S231431

CABLE

- control (For emergency shut-off on some earlier Detroit diesel engines prior to serial number 6280233)

1шт.

29

195-525

WASHER,3/8", SAE

- flat 5/16" (quantity of 1 used with Case engine and quantity of 2 used with Detroit diesel engine)

1шт.

30

T41928

CLAMP,3/16", Insul, 1/4" Bolt

1шт.

31

113-4

BOLT,Hex, 1/4" - 20 x 1", Gr 5

1шт.

32

86625061

NUT,1/4"-20, GB

NUT - self locking 1/4" NF

1шт.

33

S48851

SPACER

1шт.

34

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

35

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

1шт.

36

S109585

SPACER - (Used with emergency shut-off cable on earlier Detroit diesel engines prior to serial number 6280233)

1шт.
