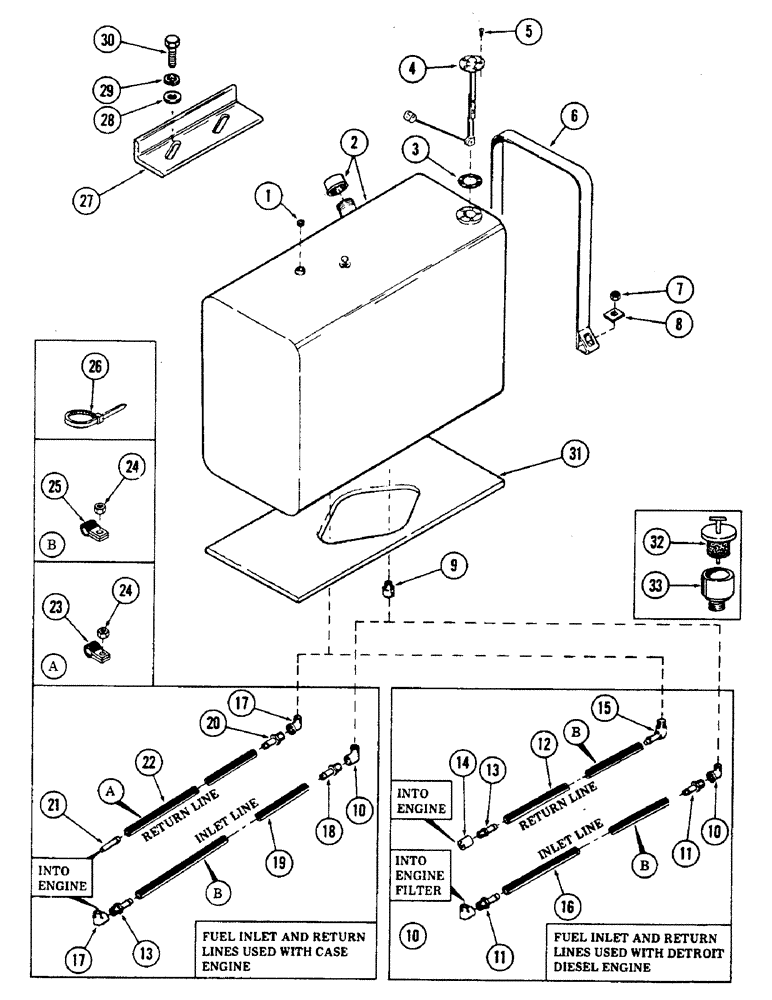

Запчасти Case 50 (060) - FUEL TANK AND LINES, (USED ON UNITS WITH 6280345 AND AFTER) (SN.6279926 & AFTER) (10) - ENGINE
№
Артикул
Название
Примечание
Количество
1
221-662
PLUG,Hex Hd, 1/4"-18
- pipe 1/4" NPT male
1шт.
2
S514118
FUEL TANK
TANK - fuel
1шт.
THE AIR VENT ON TOP OF TANK IS NSS.
1шт.
A18870
FILLER CAP
CAP - fuel tank
1шт.
3
S49745
GASKET
GASKET
1шт.
4
S502600
SENDER UNIT
SENDING UNIT - fuel gauge
1шт.
5
174-100
SCREW,Sl Rnd Hd, #10 - 32 x 3/4"
- machine no. 10 NF x 3/4"
5шт.
6
S93863
STRAP
- fuel tank mounting
2шт.
7
131-52
NUT,3/8"-16, GC
NUT - self locking 3/8" NC
4шт.
8
S108148
SPACER
4шт.
9
217-81
VALVE
- shut-off
1шт.
10
217-22
ELBOW,90 Degree, 3/8"-18 NPTF, Fem x 3/8"-18 NPTF Male
- 90 degrees 3/8" NPT female x 3/8" NPT male
1шт.
11
220-4
FITTING
END - hose fits 1/2" ID hose x 3/8" NPT male
2шт.
12
S63654
HOSE
- fuel line (Bulk) 1 piece 3/8" ID x 104" long (104")
1шт.
13
220-3
FITTING
END - hose fits 3/8" ID hose x 1/4" NPT male
1шт.
14
221-336
COUPLING,Pipe, 1/4" NPT
female x 1/4" NPT female Pipe, 1/4" NPT
1шт.
15
220-520
ELBOW,90 Degree, 1/8" NPT x 3/8" Barbed
- 90 degrees fits 3/8" x 1/4" NPT male
1шт.
16
S70628
HOSE - fuel line (Bulk) 1 piece 1/2" ID x 122" long (122")
1шт.
17
217-21
ELBOW,90 Degree, 1/4"-18 NPTF, Fem x 1/4"-18 NPTF Male
- 90 degrees 1/4" NPT male x 1/4" NPT female
2шт.
18
220-7
FITTING
END - hose fits 3/8" ID hose NPT male
1шт.
19
S63654
HOSE
- fuel line (Bulk) 1 piece 3/8" ID x 110" long (110" long)
1шт.
20
220-2
FITTING
END - hose fits 1/4" ID hose x 1/4" NPT male
1шт.
21
S66490
TUBE
END - hose fits 1/4" ID hose x
1шт.
22
S80943
FLEXIBLE HOSE
HOSE - fuel line (Bulk) 1 piece 1/4" ID x 110" long (110" long)
1шт.
23
515-25127
CLAMP,1/2", Insul, 1/2" Bolt
- hose (Replaces S77322)
1шт.
24
131-52
NUT,3/8"-16, GC
NUT - self locking 3/8" NC
1шт.
25
NLS
NO LONGER SERVICED
- hose
1шт.
26
S73387
CLIP
TIE - cable
1шт.
27
S238105
ANGLE
- fuel tank mounting
1шт.
28
S95569
WASHER
- flat 1/2"
2шт.
29
192-23
LOCK WASHER,1/2"
WASHER, LOCK, 1/2"
2шт.
30
113-2400
BOLT,Hex, 1/2" - 13 x 1-3/8", Gr 5, Full Thd
2шт.
31
S224325
PAD
- fuel tank
1шт.
32
S236763
PLUG
- filler
1шт.
33
S236764
PIPE
- filler
1шт.
Выбрано товаров: 35
