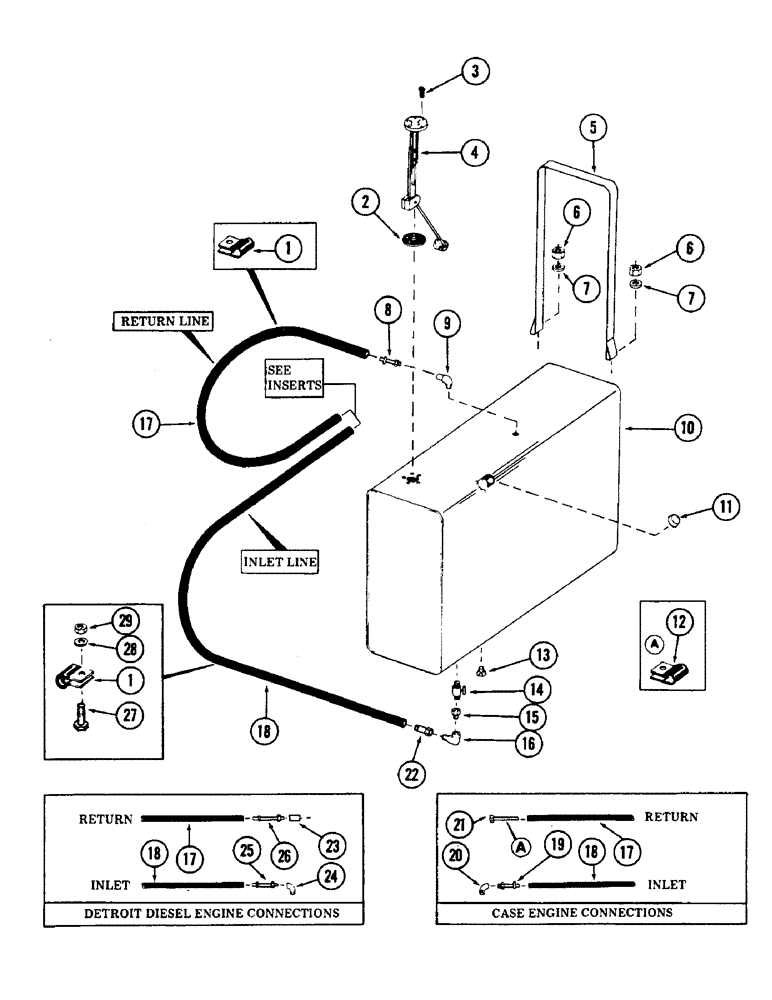

Запчасти Case 50 (058) - FUEL TANK AND LINES, (USED ON UNITS W/ SN. 6279926-6280344) (SN. 6279926 & AFTER) (10) - ENGINE

1

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

- hose (5 used with Case engine and 2 used with Detroit diesel engine)

1шт.

2

S49745

GASKET

GASKET

1шт.

3

174-100

SCREW,Sl Rnd Hd, #10 - 32 x 3/4"

- machine no. 10 NF x 3/4"

5шт.

4

S502600

SENDER UNIT

SENDING UNIT - fuel gauge

1шт.

5

S93863

STRAP

- fuel tank mounting

2шт.

6

131-52

NUT,3/8"-16, GC

NUT - self locking 3/8" NC

4шт.

7

S108148

SPACER

4шт.

8

220-3

FITTING

END - hose

1шт.

9

217-21

ELBOW,90 Degree, 1/4"-18 NPTF, Fem x 1/4"-18 NPTF Male

- 90 degrees 1/4" NPT male x 1/4" NPT female

1шт.

10

S502212

TANK

- fuel, Includes: Ref. 11

1шт.

11

S64019

FILLER CAP

CAP - fuel tank

1шт.

12

S49858

SET SCREW

CLAMP - hose (Used with Detroit diesel engines)

3шт.

214-104

HOSE CLAMP,#9, 9/16", Spring

CLAMP - hose (Used with Case engines)

2шт.

REPLACED BY S49858

1шт.

13

221-662

PLUG,Hex Hd, 1/4"-18

- pipe 1/4" NPT male (Tank drain)

1шт.

14

217-81

VALVE

- shut-off

1шт.

15

S17551

BUSHING

- reducing 3/8" NPT male x 1/4" NPT female

1шт.

16

217-22

ELBOW,90 Degree, 3/8"-18 NPTF, Fem x 3/8"-18 NPTF Male

- 90 degrees 3/8" NPT male x 3/8" NPT female

1шт.

17

S63654

HOSE

- fuel line (Bulk) 1 piece 3/8" ID x 120" long (Used on Detroit diesel engines) (120")

1шт.

S63654

HOSE

- fuel line - (BULK) 1 piece 3/8" ID x 110" long (Used on Case engines) (110")

1шт.

18

S70628

HOSE - fuel line (Bulk) 1 piece 1/2" ID x 110" long (Used on Detroit diesel engines) (110")

1шт.

S63654

HOSE

- fuel line - (Bulk) 1 piece 3/8" ID x 110" long (Used on Case engines) (110")

1шт.

19

220-3

FITTING

END - hose

1шт.

20

217-21

ELBOW,90 Degree, 1/4"-18 NPTF, Fem x 1/4"-18 NPTF Male

- 90 degrees 1/4" NPT male x 1/4" NPT female

1шт.

21

S209418

LINE - fuel

1шт.

22

220-4

FITTING

END - hose (Used on Detroit diesel engines)

1шт.

220-7

FITTING

END - hose (Used on Case engines)

1шт.

23

221-336

COUPLING,Pipe, 1/4" NPT

female Pipe, 1/4" NPT

1шт.

24

217-22

ELBOW,90 Degree, 3/8"-18 NPTF, Fem x 3/8"-18 NPTF Male

- 90 degrees 3/8" NPT male x 3/8" NPT female

1шт.

25

220-4

FITTING

END - hose

1шт.

26

220-3

FITTING

END - hose

1шт.

27

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

1шт.

28

195-103

WASHER,5/16"

- flat 3/8"

1шт.

29

131-52

NUT,3/8"-16, GC

NUT - self locking 3/8" NC

1шт.

30

S224325

PAD

- fuel tank (Not illustrated)

1шт.
