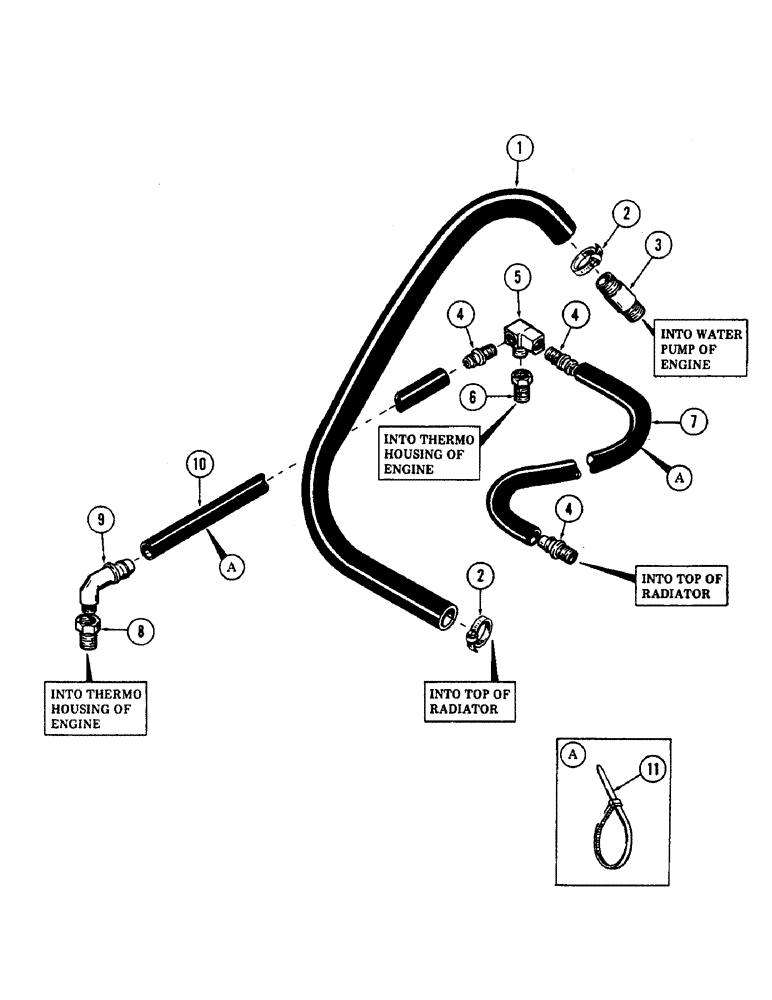

Запчасти Case 50 (056) - ENGINE SURGE & PURGE HOSES, (USED ON UNITS W/ DETROIT DIESEL ENGINES) (SN., 6279926 & AFTER) (10) - ENGINE

1

S87730

HOSE

- low pressure (Bulk) 1 piece 1" ID x 45" long (45")

1шт.

2

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose

2шт.

3

221-1921

PIPE,Nipple, 3/4" NPT x 2", X-Strng

NIPPLE - pipe 3/4" NPT male x 2" long

1шт.

4

220-3

FITTING

END - hose fits 3/8" ID hose x 1/4" NPT male

3шт.

5

217-51

TEE,1/4"-18 NPTF Fem x 1/4"-18 NPTF Male Run

- 1/4" NPT male x 1/4" NPT female x 1/4" NPT female

1шт.

6

221-86

REDUCER,Hex, 3/8" x 1/4" NPT

BUSHING - reducing 3/8" NPT male x 1/4" NPT female

1шт.

7

S63654

HOSE

- low pressure (Bulk) 1 piece 3/8" ID x 22" long (22")

1шт.

8

221-88

REDUCER,Hex, 1/2" x 1/4" NPT

BUSHING - reducing 1/2" NPT male x 1/4" NPT female

1шт.

9

220-520

ELBOW,90 Degree, 1/8" NPT x 3/8" Barbed

- 90 degrees hose end fits 3/8" ID hose x 1/4" NPT male

1шт.

10

S63654

HOSE

- low pressure (Bulk) 1 piece 3/8" ID x 20" long (20")

1шт.

11

S73387

CLIP

TIE, cable

1шт.
