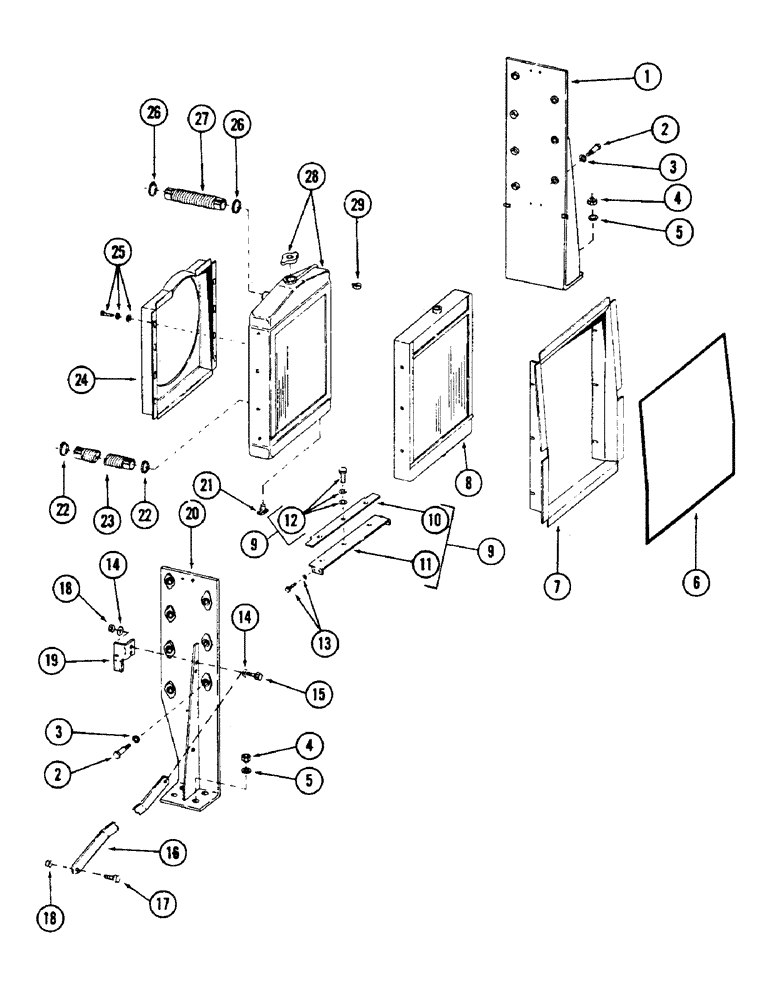

Запчасти Case 50 (052) - RADIATOR, OIL COOLER & HOSES, (USED ON UNITS W/ SN. 6279926-6280344) (SN. 6279926 & AFTER) (10) - ENGINE

1

S510352

BRACKET - radiator and oil cooler mounting (Left hand)

1шт.

THE RUBBER GROMMETS ARE PART S76804

1шт.

2

S76819

STEP BOLT

BOLT - shoulder

14шт.

3

193-30

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

14шт.

4

131-492

NUT,1/2"-13

NUT - self locking 1/2" NC

8шт.

5

196-25

WASHER,21/32" x 1 5/16" x .188", HDN

- flat 17/32"

8шт.

6

S76711

SEAL

STRIP - weather (Bulk) 1 piece 145" long (145")

1шт.

7

S609659

SHROUD - air duct

1шт.

8

S609652

COOLER

- oil

1шт.

9

S229625

BRACKET - radiator to cooler, Includes: Ref. 10 - 12

2шт.

10

S229946

STRIP

1шт.

11

S229626

BRACKET

1шт.

12

113-2

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

3шт.

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

3шт.

195-101

WASHER,3/16"

- flat 1/4"

3шт.

13

195-102

WASHER,1/4"

- flat 5/16"

8шт.

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

CPSW - 5/16" NC x 3/4" gr 5

8шт.

14

195-102

WASHER,1/4"

- flat 3/8"

4шт.

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

8шт.

15

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

CPSW - 3/8" NC x 1-1/2" gr 5

2шт.

16

S235287

BRACE - (Supersedes S230149)

2шт.

17

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

18

131-52

NUT,3/8"-16, GC

NUT - self locking 3/8" NC

4шт.

19

S510379

BRACKET

- relay mounting

1шт.

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

(Bracket mounting) Hex, 3/8"-16 x 1 1/2", G5

2шт.

131-52

NUT,3/8"-16, GC

NUT - self locking 3/8" NC

2шт.

20

S510351

BRACKET - radiator and oil cooler mounting (Right hand)

1шт.

21

A23656

COCK, DRAIN

DRAIN - radiator

1шт.

22

214-262

HOSE CLAMP,#44, 2.31" - 3.25", Type F Worm

CLAMP - hose (Used with Case diesel engines)

2шт.

214-260

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

(Used with Detroit diesel engines) #36, 1.81/2.75 Type F Worm

2шт.

23

S85823

HOSE,63.5 mm ID x 609.60 mm, SAE 20R5

63.5 mm ID x 609.6 mm, SAE 20R5, Radiator, Lower; Used With CASE Diesel Engines

1шт.

S76701

HOSE

- radiator (Lower) (Used with Detroit diesel engines)

1шт.

24

S609718

SHROUD

- fan (Used with Case diesel engines)

1шт.

S610685

SHROUD

- fan (Used with Detroit diesel engines)

1шт.

25

182-527

SCREW,Sl Pan Hd, 1/4" - 20 x 5/8"

- machine 1/4" NC x 5/8" (Replaces 75-410)

8шт.

195-518

WASHER,1/4", SAE

- flat 9/32"

8шт.

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

8шт.

26

214-262

HOSE CLAMP,#44, 2.31" - 3.25", Type F Worm

CLAMP - hose (Used with Case diesel engines)

2шт.

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

(Used with Detroit diesel engines) #28, 1.31/2.25 Type F Worm

2шт.

27

S230570

HOSE,2.50" ID x 12.26", SAE 20R4 CLASS SC

RADIATOR HOSE, , Upper (Used w/Case Diesel Engines) 2.50" ID x 12.26", SAE 20R4 CLASS SC

1шт.

S69874

HOSE

- radiator (Upper) (Used with Detroit diesel engines)

1шт.

28

S609650

RADIATOR

- (Used with Case diesel engines)

1шт.

S610686

RADIATOR - (Used with Detroit diesel engines)

1шт.

D25826

CAP

- radiator (7 lbs. pressure)

1шт.

29

S15538

CLAMP,7/16", Insul, 1/4" Bolt

- hose (Secures overflow tube on radiator)

1шт.
