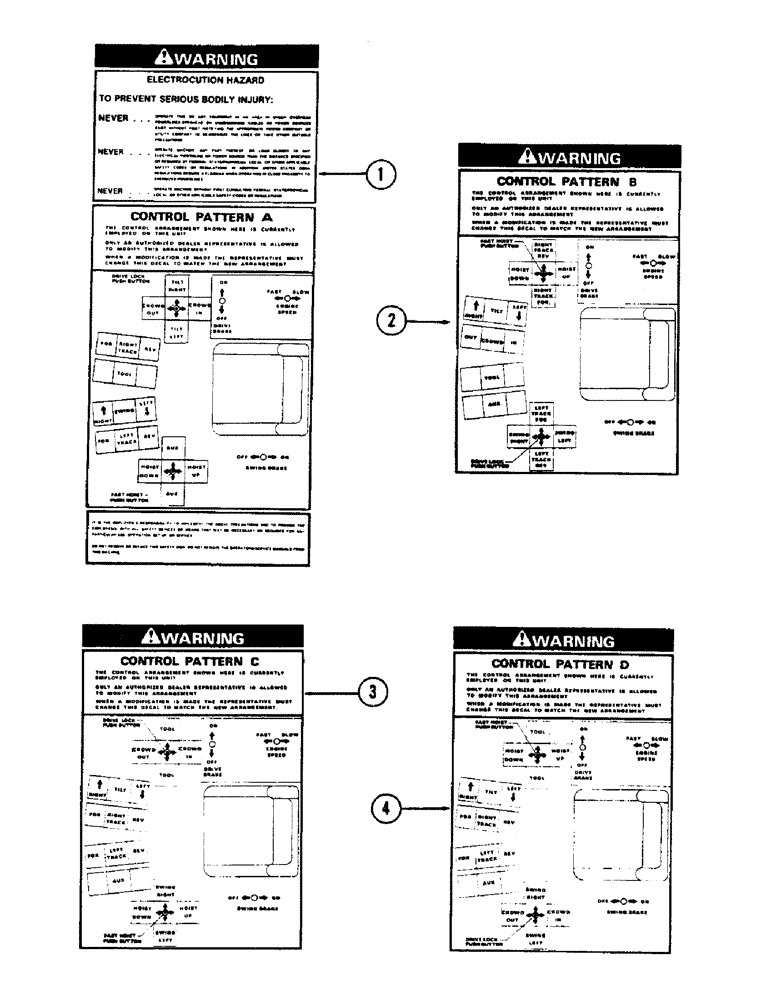

Запчасти Case 50 (300) - DECALS, (USED ON UNITS WITH SERIAL NUMBER 6280345 AND AFTER)(SN. 6279926 & AFTER) (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

321-5694

PRODUCT GRAPHIC

DECAL - control pattern "A" (Standard)

1шт.

(BLOCK PILLOW) USED ON SERIAL NUMBER 6280345 AND AFTER, PART IS S240316

1шт.

2

S614946

KIT - decal control pattern "B" (Optional)

1шт.

(BLOCK PILLOW) USED ON SERIAL NUMBER 6280345 AND AFTER, PART IS S240316

1шт.

321-5648

DECAL

- control pattern "B"

1шт.

S956045

PRINT - installation instructions control pattern "B"

1шт.

3

S614947

KIT

- decal control pattern "C" (Optional)

1шт.

(BLOCK PILLOW) USED ON SERIAL NUMBER 6280345 AND AFTER, PART IS S240316

1шт.

321-5649

DECAL

- control pattern "C"

1шт.

S956046

PRINT - installation instructions control pattern "C"

1шт.

4

S614948

KIT - decal control pattern "D" (Optional)

1шт.

IMPORTANT: Industry has not standardized control patterns for machines of this class. Because of the design of this machine's hydraulic system, many patterns could be chosen. However, Drott Div. will authorize the use of only four (4) patterns. The only person authorized by Drott to change the control pattern on this machine is a Drott Dealer. Under no conditions is an owner, operator or his representative authorized to make this change. If a control pattern change is made by the Drott Dealer, it is his

1шт.

321-5650

DECAL

- control pattern "D"

1шт.

S956047

PRINT - installation instructions control pattern "D"

1шт.
