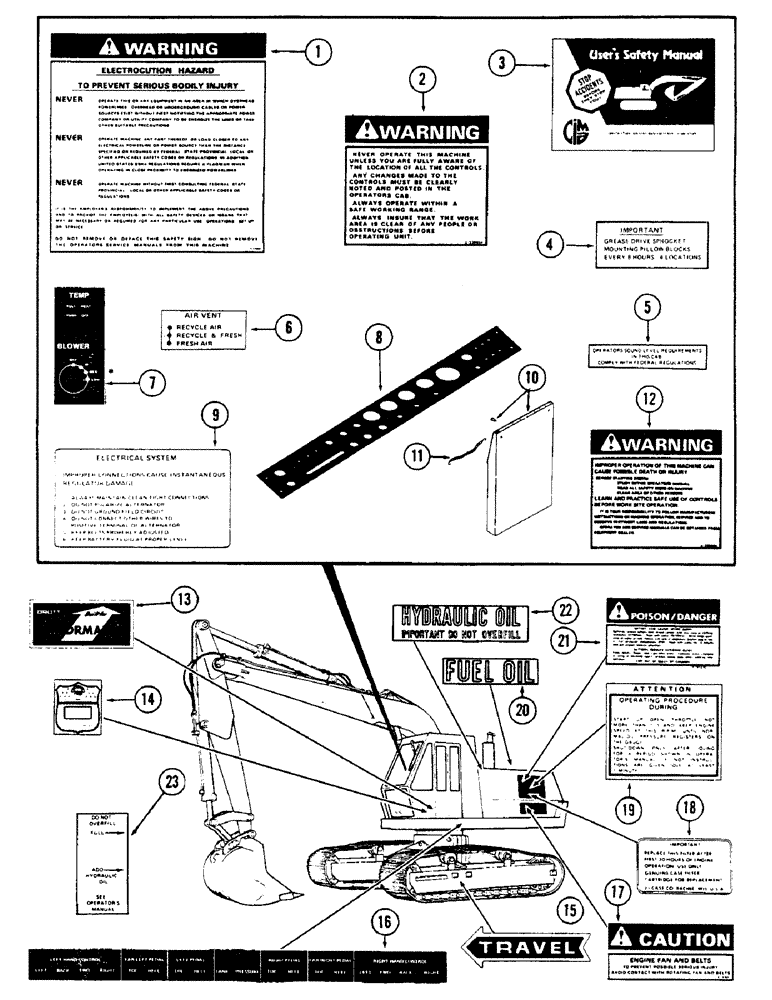

Запчасти Case 50 (294) - DECALS, (USED ON UNITS WITH SERIAL NUMBER 6279926 THRU 6280344)(SN 6279926 AND AFTER) (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

S510658

DECAL

- electrocution warning

1шт.

2

S229054

DECAL

- operators controls warning

1шт.

3

S406232

HANDBOOK

MANUAL - user's safety

1шт.

4

S216990

DECAL

- pillow block greasing

1шт.

5

S95214

DECAL - sound level requirement

1шт.

6

S97019

DECAL - heater air vent

1шт.

7

S109889

DECAL - fan and heater (Supersedes S97021)

1шт.

8

S610676

DECAL

- instrument panel

1шт.

9

S231479

DECAL - electrical system

1шт.

10

S511692

BOX

COMPARTMENT - manual (Supersedes S608128)

1шт.

S109782

RIVET

2шт.

11

A141917

ROPE

CORD - anchor (For manual)

1шт.

12

S231311

DECAL

- operators warning

1шт.

13

S221202

DECAL

- performance

1шт.

14

S89871

DECAL

- PCSA

1шт.

15

S506884

INDICATOR

- travel (Left hand) (Illustrated)

1шт.

S506885

INDICATOR

- travel (Right hand) (Not illustrated) (Used on earlier units)

1шт.

16

S611030

DECAL - control line bulkhead

1шт.

S23395

SCREW

- mounting

6шт.

17

S107837

DECAL

- fan caution

3шт.

18

321-2101

DECAL

- oil filter (Supersedes S89330)

1шт.

19

321-2605

DECAL

- turbo charger protection (Supersedes S97732)

1шт.

20

S70192

DECAL

- fuel oil

1шт.

21

S105670

DECAL

- battery damage

1шт.

22

321-2996

DECAL

- hydraulic oil fill (Replaces S80209)

1шт.

23

S233480

DECAL

- hydraulic oil level

1шт.
