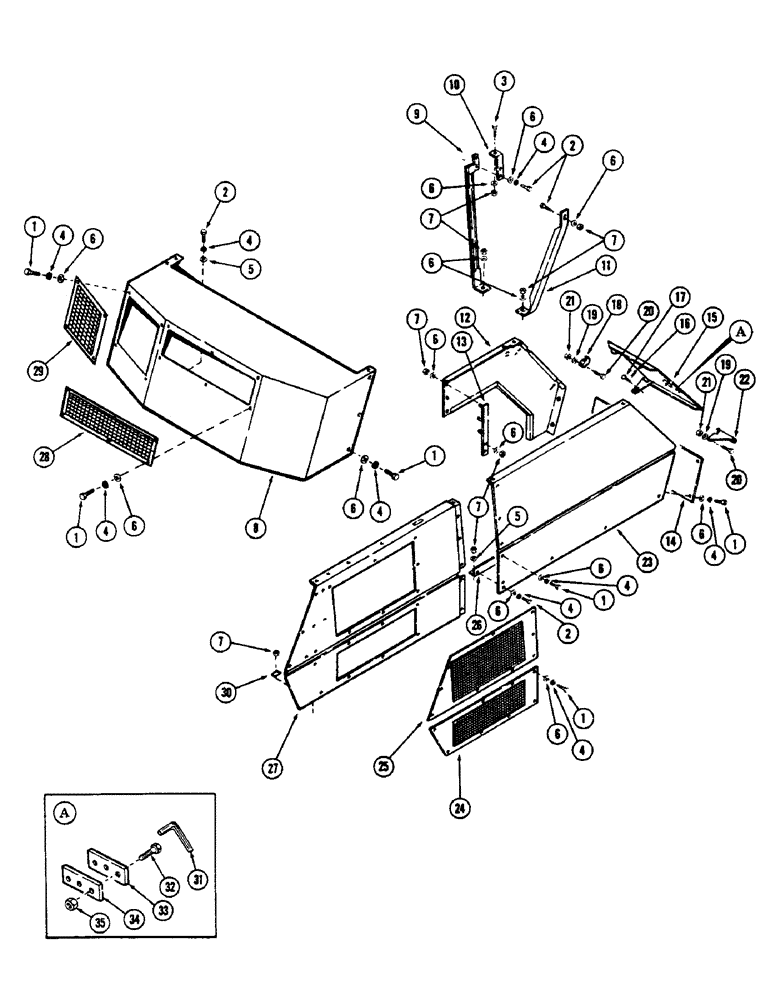

Запчасти Case 50 (102) - TURNTABLE SHROUDING AND RELATED PARTS, (RIGHT SIDE AND REAR)(USED ON UNITS W/ SN. 6280345 & AFTER) (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

113-424

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

1шт.

2

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

1шт.

3

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

1шт.

4

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

5

S95569

WASHER

- hardened flat 1/2"

1шт.

6

196-15

WASHER,17/32" x 1 1/6" x .134"

- hardened flat 1/2"

1шт.

7

131-70

NUT,1/2"-13, GB

NUT - self locking 1/2" NC

1шт.

8

S955418

SHROUD - rear

1шт.

9

S231434

BRACE - shroud support

1шт.

10

S231433

ANGLE -, Serial Range: brace-shroud

1шт.

11

S236633

BRACE -, Serial Range: turntable-shroud

1шт.

12

S602602

SHROUD

1шт.

13

S238412

SUPPORT - shroud

1шт.

14

S219991

SHEET

COVER

1шт.

15

S613463

DOOR

- front

1шт.

16

A70250

PIN

- hair

1шт.

17

S217887

PIN

- door holder

1шт.

18

S221455

BRACKET

- door mounting

1шт.

19

195-103

WASHER,5/16"

- flat 3/8"

1шт.

20

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

21

131-52

NUT,3/8"-16, GC

NUT - self locking 3/8" NC

1шт.

22

S221453

BRACKET

- door holder

1шт.

23

S613462

SHROUD - right front

1шт.

24

S505911

GRILLE - shroud lower

1шт.

25

S505912

GRILLE - shroud upper

1шт.

26

S219989

ANGLE

- shroud mount

1шт.

27

S602600

SHROUD - right rear

1шт.

28

S236583

GRILLE - rear

1шт.

29

S235981

GRILLE

- air cleaner

1шт.

30

S94090

SPACER

3шт.

31

S115083

KEY

- angle

1шт.

32

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

33

S110414

LOCK

1шт.

34

195-516

WASHER,#12

SPACER (Replaces S114236)

1шт.

35

131-462

NUT,5/16"-18

NUT - self locking 1/4" NC

2шт.
