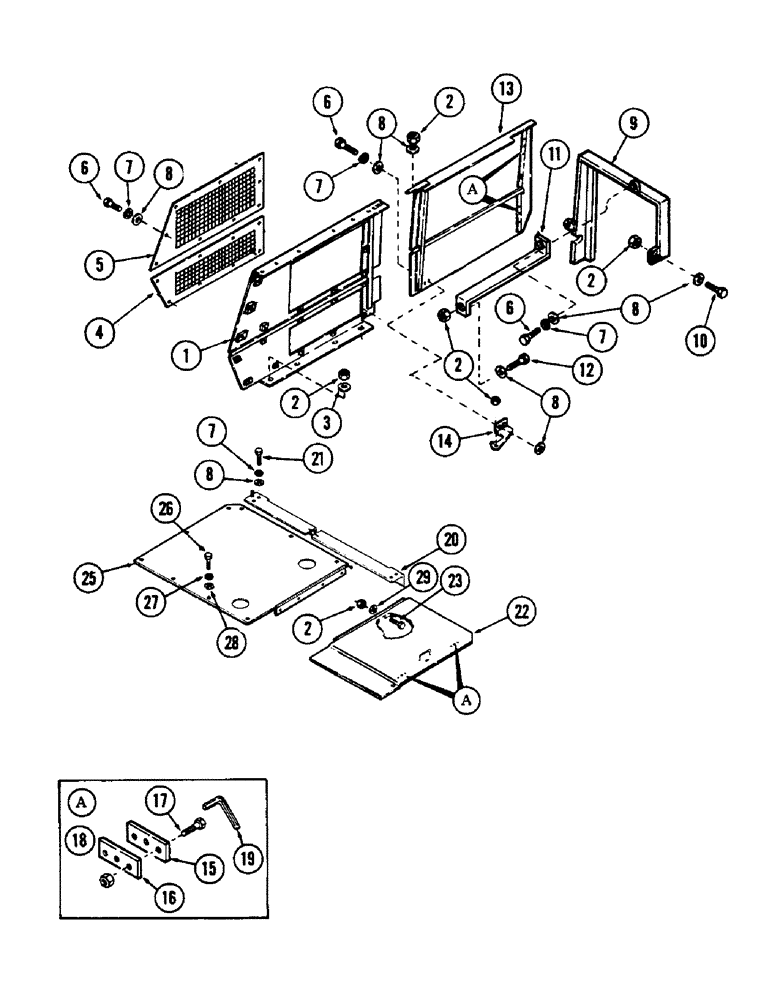

Запчасти Case 50 (100) - TURNTABLE SHROUDING AND RELATED PARTS, (LEFT SIDE AND TOP),(USED ON UNITS W/ SN. 6280345 & AFTER) (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

S602963

SHROUD - rear side (Left)

1шт.

2

131-70

NUT,1/2"-13, GB

NUT - self locking 1/2" NC

4шт.

3

S95569

WASHER

- flat 1/2"

4шт.

4

S505911

GRILLE - bottom

1шт.

5

S505912

GRILLE - top

1шт.

6

113-424

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

1шт.

7

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

8

196-15

WASHER,17/32" x 1 1/6" x .134"

- flat 1/2"

1шт.

9

S955718

BRACKET

1шт.

10

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

11

S236631

BRACE

1шт.

12

113-2400

BOLT,Hex, 1/2" - 13 x 1-3/8", Gr 5, Full Thd

1шт.

13

S613464

DOOR - side (Left)

1шт.

14

S513498

BRACKET

1шт.

15

S110414

LOCK

2шт.

16

S110415

SPACER

2шт.

17

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

CPSW - 1/4" NC x 3/8" gr 5

4шт.

18

86625061

NUT,1/4"-20, GB

NUT - self locking 1/4" NC

4шт.

19

S115083

KEY

1шт.

20

S613415

ANGLE

1шт.

21

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

4шт.

22

S613354

DOOR - top

1шт.

23

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

4шт.

24

131-52

NUT,3/8"-16, GC

NUT - self locking 3/8" NC

4шт.

25

S613368

SHROUD - engine (Used with Case engines) (Illustrated)

1шт.

S613324

SHROUD - engine (Used with Detroit diesel engine) (Not illustrated)

1шт.

26

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

9шт.

27

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

9шт.

28

196-15

WASHER,17/32" x 1 1/6" x .134"

9шт.

29

196-5

WASHER,13/32" x 1 1/16" x .095", HDN

hardened flat - 3/8"

4шт.
