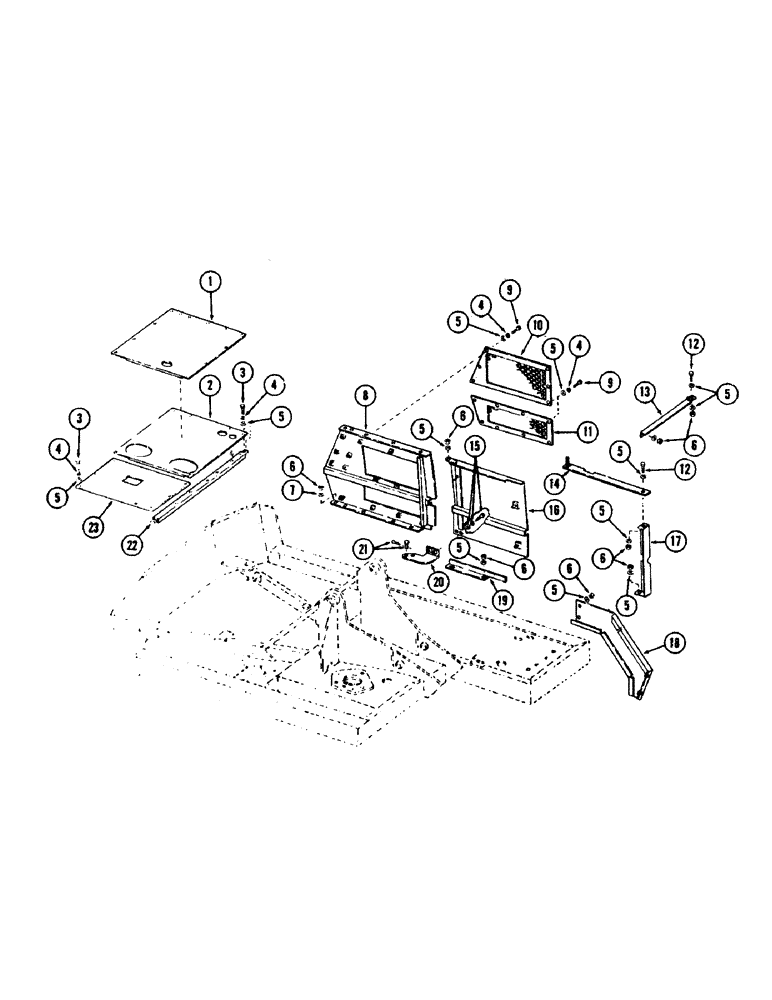

Запчасти Case 50 (096) - TURNTABLE SHROUDING AND RELATED PARTS, (LEFT SIDE AND TOP) (USED ON UNITS W/ SN. 6279926-6280344) (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

S606673

COVER - (Used with Case engines)

1шт.

2

S606670

COVER - (Used with Detroit diesel engines)

1шт.

3

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

1шт.

4

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

5

S95569

WASHER

- flat 1/2"

1шт.

6

131-70

NUT,1/2"-13, GB

NUT - self locking 1/2" NC

1шт.

7

S95569

WASHER

- flat 1/2"

1шт.

8

S602963

SHROUD - side panel (Left side)

1шт.

9

113-424

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

1шт.

10

S505912

GRILLE - top side (Rear shroud) (Left)

1шт.

11

S505911

GRILLE - bottom side (Rear shroud) (Left)

1шт.

12

113-421

BOLT,Hex, 1/2" - 13 x 2", Gr 5

1шт.

13

S219988

BRACE

1шт.

14

S230686

BRACE

1шт.

15

113-424

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

CPSW - 1/2" NC x 7/8" gr 5

2шт.

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

S95569

WASHER

- flat 1/2"

2шт.

16

S606787

DOOR - left side

1шт.

17

S226315

BRACE - door stop

1шт.

18

S606788

SHROUD - door mounting (Front)

1шт.

19

S230685

ANGLE - (Supersedes S220615)

1шт.

20

S507513

BRACKET

1шт.

21

S217887

PIN

- retaining

1шт.

S81895

COTTER PIN

PIN ASSEMBLY - (Consists of pin and washer)

1шт.

REPLACED BY A70250

1шт.

S81895

COTTER PIN

PIN ASSEMBLY - (Consists of pin and washer)

1шт.

22

S508747

CHANNEL

1шт.

23

S509218

COVER - radiator and cooler

1шт.
