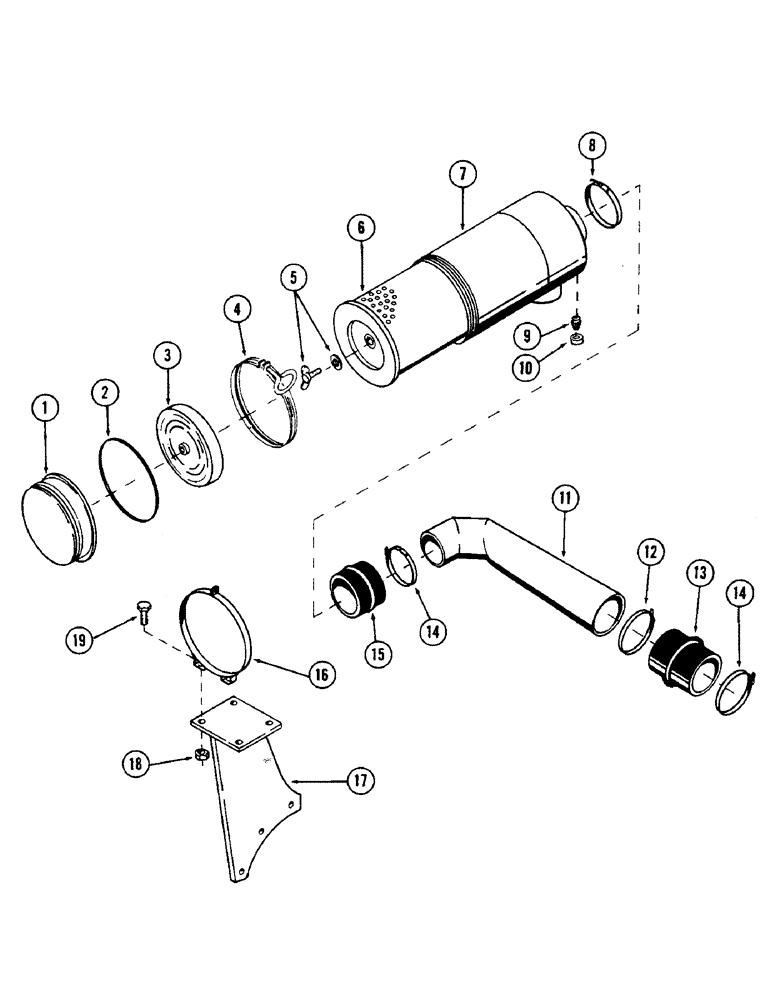

Запчасти Case 50 (046) - AIR CLEANER & ATTACHING PARTS FOR: CASE 504BDT DIESEL ENGINE,(USED ON UNITS W/ SN. 6279926-6280344) (10) - ENGINE

S609421

AIR CLEANER

CLEANER - air, Includes: Ref. 1 - 7

1шт.

1

S221315

COVER

CUP

1шт.

2

L30943

GASKET

"O" RING

1шт.

3

S221314

BAFFLE

1шт.

4

L30936

CLAMP

1шт.

5

L35499

NUT

SCREW ASSEMBLY

1шт.

6

S231996

AIR FILTER

ELEMENT - air cleaner

1шт.

7

NSS

NOT SOLD SEPARAT

BODY - air cleaner

1шт.

8

214-273

HOSE CLAMP,#88, 5.12" - 6", Type F Worm

CLAMP

1шт.

9

S36264

RING, SNAP

FITTING - filtered

1шт.

10

A59568

INDICATOR

- air restrictor

1шт.

11

S231269

TUBE 16.25, 3.5" L

1шт.

12

214-361

CLAMP,#108, 4.25"-4.56", T-Bolt

1шт.

13

A56094

HOSE

ADAPTER - rubber

1шт.

PART MEASURES 3"I.D. x 4"I.D.

1шт.

14

S83025

CLAMP

2шт.

15

S106022

REDUCER

HUMP - reducer

1шт.

PART MEASURES 4"I.D. X 5"I.D.

1шт.

16

S219922

BAND

- mounting

2шт.

17

S511013

BRACKET - air cleaner mounting

1шт.

18

131-52

NUT,3/8"-16, GC

NUT - self locking 3/8" NC

4шт.

19

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.
