Запчасти Case 50 (091L) - CAB AND ATTACHING PARTS, (VANDAL GUARD) (USED ON UNITS W/CAB SN. A306826 AND AFTER) (90) - PLATFORM, CAB, BODYWORK AND DECALS

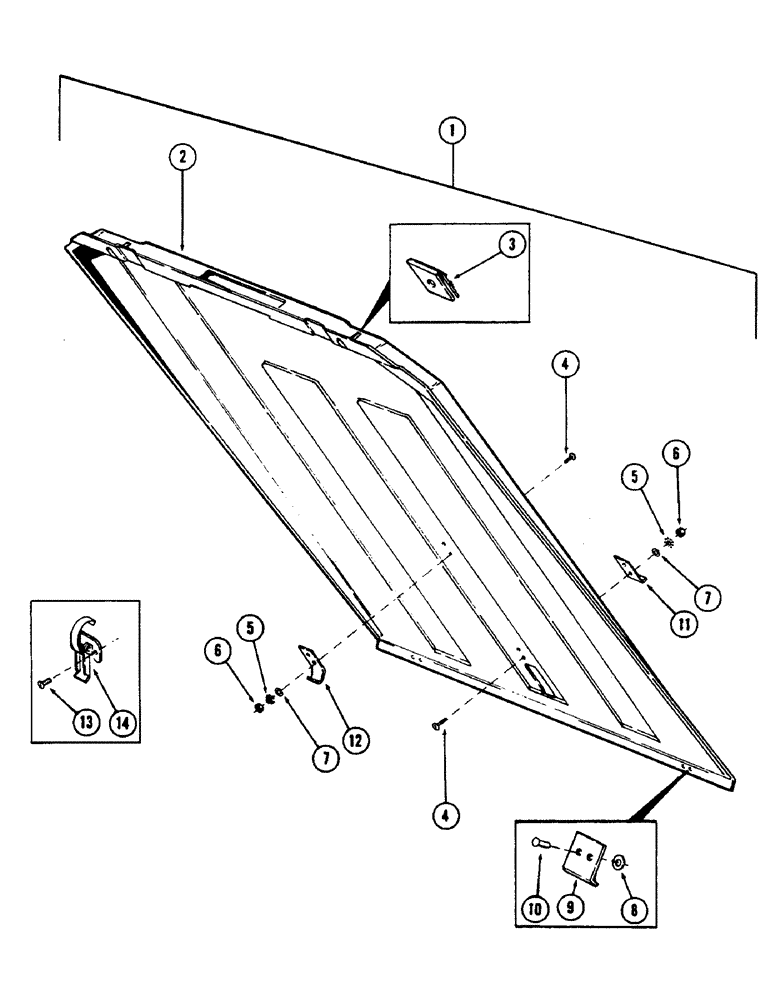

Схема запчастей Case 50 - (091L) - CAB AND ATTACHING PARTS, (VANDAL GUARD) (USED ON UNITS W/CAB SN. A306826 AND AFTER) (90) - PLATFORM, CAB, BODYWORK AND DECALS

Артикул

Название

Примечание

Количество

S956136

CAB

operator (Includes refs listed below and figures 91A thru 91J), Includes: Ref. 1 - 12

1шт.

1

S514622

GUARD ASSY.

GUARD ASSEMBLY - vandal

1шт.

2

S956204

GUARD - plastic vandal

1шт.

3

S109504

"U" CLIP

2шт.

4

182-560

SCREW,Cross Pan Hd, 1/4"-20 x 3/4"

- machine 1/4" NC x 3/4"

4шт.

5

193-8

LOCK WASHER,Ext Tooth, 1/4"

WASHER, LOCK, Ext Tooth, 1/4"

4шт.

6

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

4шт.

7

195-101

WASHER,3/16"

- flat 1/4"

4шт.

8

195-513

WASHER,#10

- flat 7/32"

4шт.

9

S108311

CLIP

2шт.

10

S109782

RIVET

- blind

4шт.

11

S231617

CLIP

1шт.

12

S511226

BRACKET

1шт.

13

182-557

SCREW,Cross Pan Hd, #10-32 x 3/4"

- machine no. 10 NF x 3/4" (Replaces S109769)

4шт.

14

S109781

LATCH

- fastener

1шт.

Выбрано товаров: 15
