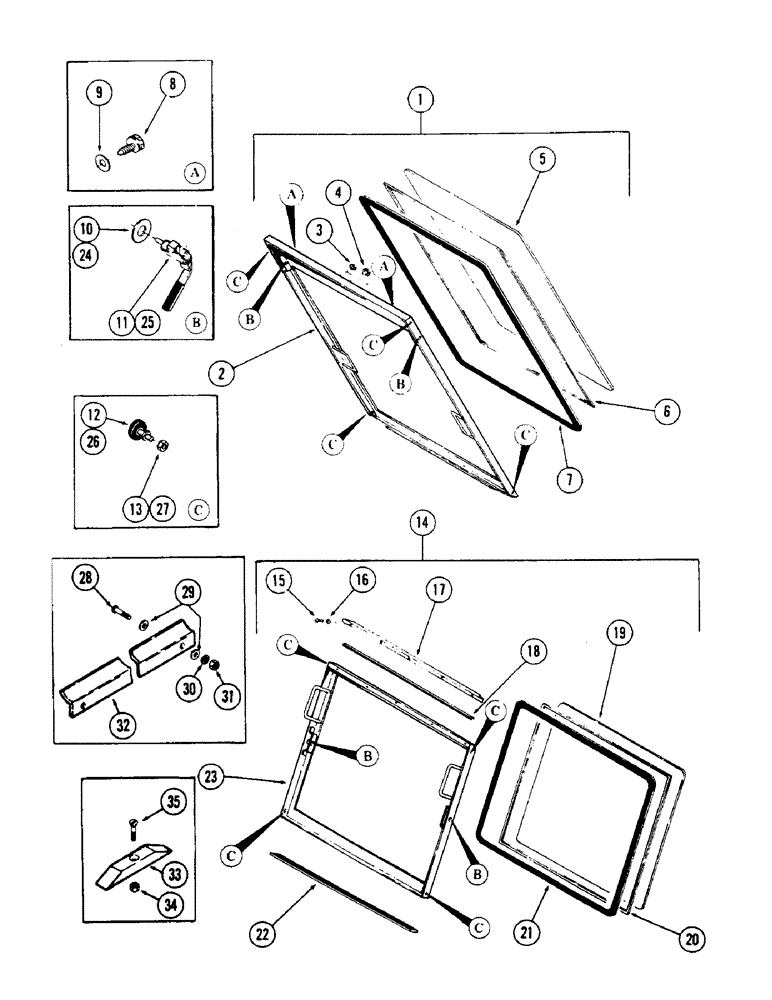

Запчасти Case 50 (091E) - CAB AND ATTACHING PARTS, (UPPER AND LOWER FRONT WINDOWS AND ATTACHING PARTS) (USED ON UNITS WITH CAB (90) - PLATFORM, CAB, BODYWORK AND DECALS

S956136

CAB

- operator (Includes refs listed below and figures 91A thru 91C and 91G thru 91L), Includes: Ref. 1 - 35

1шт.

1

S610671

WINDOW

ASSEMBLY - front upper, Includes: Ref. 2 - 13

1шт.

2

NSS

NOT SOLD SEPARAT

WINDOW - weldment

1шт.

3

353-260

PLUG - 5/16" Cap, 5/16"-24

2шт.

4

353-265

PLUG - 3/4" Cap, 3/4"-16

1шт.

5

S108099

GLASS - front upper

1шт.

6

S75830

SEAL

STRIP - filler (Bulk) 1 piece 145" long (145")

1шт.

7

S75829

SEAL

RUBBER - glass setting (Bulk) 1 piece 145" long (145")

1шт.

8

S109773

FASTENER

2шт.

9

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

10

193-35

LOCK WASHER,Int Tooth, 3/4"

WASHER - flat 3/4"

2шт.

11

S231570

CLAMP

- windshield (Right hand)

1шт.

S231571

CLAMP

- windshield (Left hand)

1шт.

12

D70621

ROLLER

- rubber

4шт.

13

129-105

NUT,Hex, 1/2" - 13, Gr 5

4шт.

14

S615430

WINDOW ASSY

WINDOW ASSEMBLY - front lower, Includes: Ref. 15 - 32

1шт.

15

S60105

SCREW - machine - 1/4" NF x 1/2"

5шт.

16

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

5шт.

17

S511097

BRACKET

1шт.

18

S60106

CHANNEL - rubber (Bulk) 1 piece 30" long (30")

1шт.

19

S108100

WINDOW - plastic

1шт.

20

S75830

SEAL

STRIP - filler (Bulk) 1 piece 73" long (73")

1шт.

21

S75829

SEAL

RUBBER - glass setting (Bulk) 1 piece 73" long (73")

1шт.

22

S109912

SEAL - (Bulk) 1 piece 62" long (62")

1шт.

23

NSS

NOT SOLD SEPARAT

WINDOW - weldment

1шт.

24

193-35

LOCK WASHER,Int Tooth, 3/4"

WASHER - flat 3/4"

2шт.

25

S213570

CLAMP - windshield (Right hand)

1шт.

S213571

CLAMP

- windshield (Left hand)

1шт.

26

D70621

ROLLER

- rubber

4шт.

27

129-105

NUT,Hex, 1/2" - 13, Gr 5

4шт.

28

113-113

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

2шт.

29

195-21

WASHER,5/16"

flat - 5/16"

4шт.

30

92-5

LOCK WASHER,5/16"

2шт.

31

9635082

NUT,5/16" - 18, Gr 5

2шт.

32

S236869

RETAINER

2шт.

33

S117096

STOP - cam follower

2шт.

34

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

2шт.

35

163-22

SCREW,Hex, 1/4" - 20 x 1/2"

- flat head

2шт.

36

S95517

ADHESIVE

(Not illustrated)

1шт.
