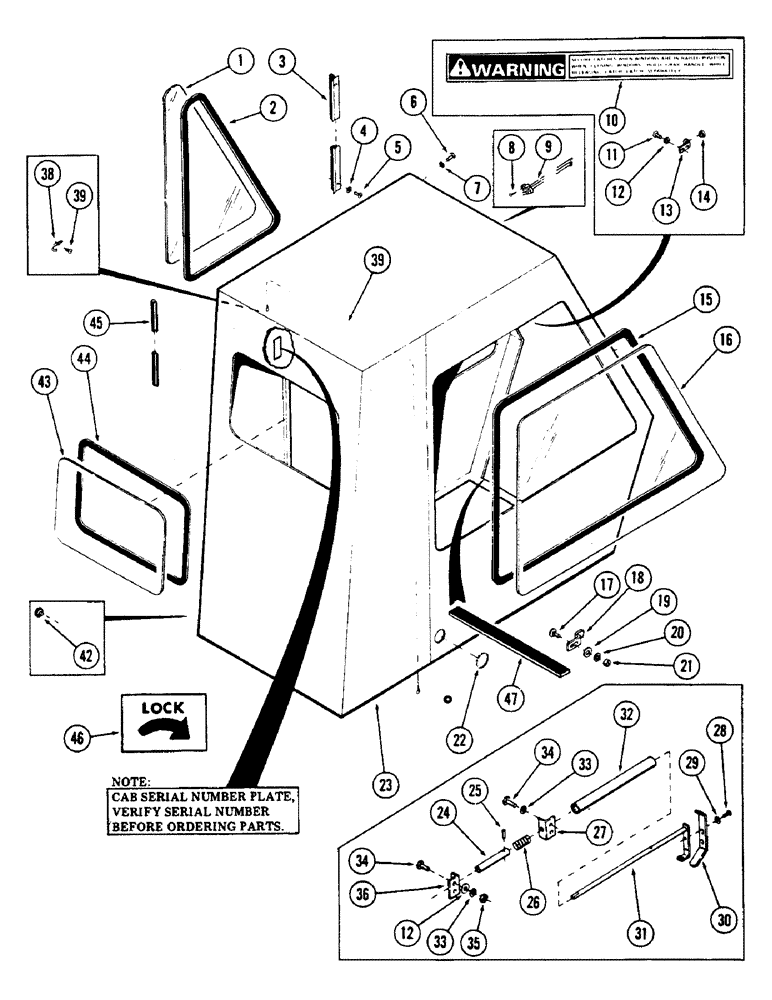

Запчасти Case 50 (091A) - CAB AND ATTACHING PARTS, (USED ON UNITS W/ CAB SN. A306826 AND AFTER) (90) - PLATFORM, CAB, BODYWORK AND DECALS

S956136

CAB

ASSEMBLY - (Includes refs listed below and figures 91A thru 91L), Includes: Ref. 1 - 42

1шт.

1

S108104

WINDOW - plastic

1шт.

2

S109778

SEAL

SETTING MATERIAL - (Bulk) 1 piece 102" long (102")

1шт.

3

S108306

RETAINER

- door

1шт.

4

195-102

WASHER,1/4"

- flat 1/4"

6шт.

5

182-510

SCREW,Sl Pan Hd, #8 - 32 x 1/2"

- machine 5/16" NC x 3/4" (Replaces S109766)

6шт.

6

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3шт.

7

S49599

WASHER

- seal 3/8"

3шт.

8

182-522

SCREW,Cross Pan Hd, #6 - 32 x 1/2"

- machine no. 6 x 1/2" (Replaces S60825)

2шт.

9

S239036

SOCKET ASSEMBLY

1шт.

10

S232929

DECAL - window warning

1шт.

11

182-560

SCREW,Cross Pan Hd, 1/4"-20 x 3/4"

- machine 1/4" NC x 3/4" (Replaces S109767)

8шт.

12

195-101

WASHER,3/16"

- flat 1/2"

10шт.

13

S236544

BRACKET - bumper

2шт.

14

S109513

BUMPER

2шт.

15

S109778

SEAL

SETTING MATERIAL (Bulk) 1 piece 156" long (156")

1шт.

16

S108103

WINDOW - plastic

1шт.

17

111-342

BOLT - carriage 3/8" NC x 1"

8шт.

18

S231580

BRACKET - (Right hand)

2шт.

S231581

BRACKET - (Left hand)

2шт.

19

195-103

WASHER,5/16"

- flat 3/8"

8шт.

20

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

8шт.

21

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

8шт.

22

S61789

PLUG

- button

1шт.

23

S615429

CAB

- weldment

1шт.

S239024

RETAINER

DOOR RETAINER ASSEMBLY, Includes: Ref. 24 - 31

1шт.

24

S108308

TUBE,0.75" OD x 6.41" L

1шт.

25

138-57

LOCK PIN,1/8" x 3/4", Slotted

PIN, 1/8" x 3/4", Slotted

1шт.

26

S109506

SPRING

1шт.

27

S108307

BRACKET

1шт.

28

182-202

SCREW,Sl Pan Hd, 1/4" - 20 x 1/2"

- machine 1/4" NC x 1/2"

2шт.

29

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

30

S514584

BRACKET

1шт.

31

S231584

RETAINER

- door weldment

1шт.

32

S108309

TUBE,1" OD x 9.44" L

1шт.

33

182-202

SCREW,Sl Pan Hd, 1/4" - 20 x 1/2"

WASHER - lock

4шт.

34

182-527

SCREW,Sl Pan Hd, 1/4" - 20 x 5/8"

- machine 1/4" NC x 5/8" (Replaces S63053)

6шт.

35

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

2шт.

36

S108307

BRACKET

1шт.

37

182-557

SCREW,Cross Pan Hd, #10-32 x 3/4"

- machine no. 10 NF x 3/4" (Replaces S109769)

2шт.

38

S61769

HOOK

1шт.

39

S231612

WIRE ASSEMBLY

1шт.

40

S95517

ADHESIVE

(Not illustrated) (Use with seals)

1шт.

41

345-22

ADHESIVE

- (Not illustrated) (Use with seal on ref 3) (Replaces S109780)

1шт.

42

S109513

BUMPER - door

1шт.

43

S108101

WINDOW - plastic

1шт.

44

S109778

SEAL

SETTING MATERIAL - (Bulk) 1 piece 84" long (84")

1шт.

45

S109775

SEAL

- trim (Bulk) 1 piece 245" long (245")

1шт.

46

S117100

DECAL

1шт.

47

S117099

SEAL - (Bulk) 1 piece 32" long (32")

1шт.
