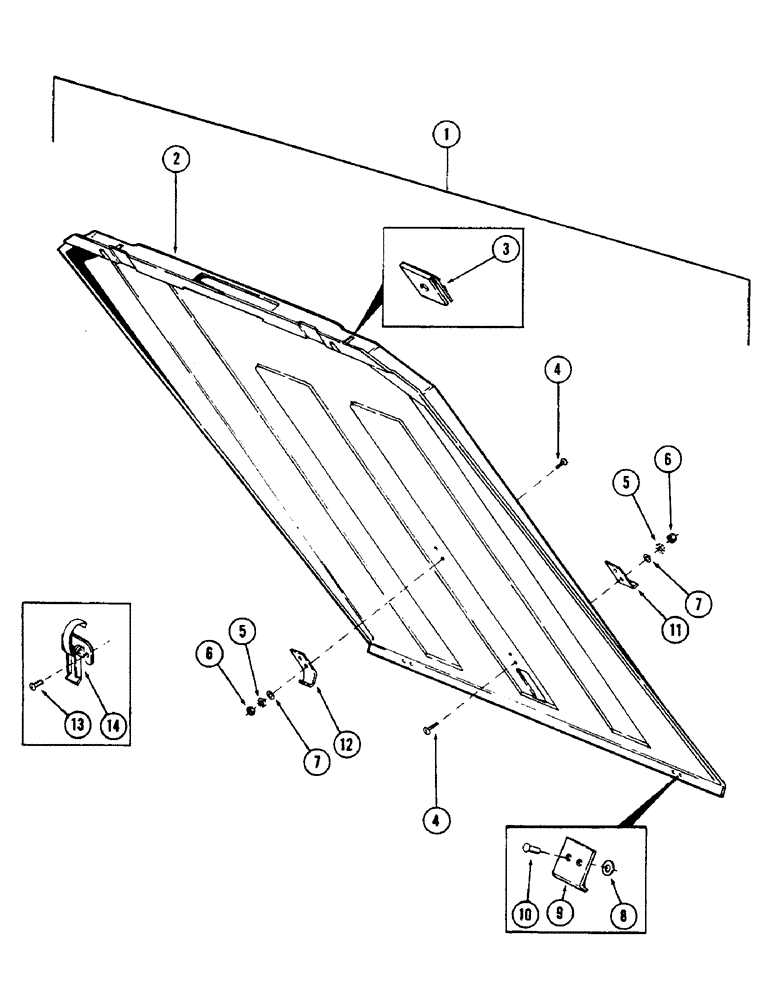

Запчасти Case 50 (088) - CAB AND ATTACHING PARTS, (VANDAL GUARD) (USED ON UNITS W/ CAB SN. A306825 AND BEFORE) (90) - PLATFORM, CAB, BODYWORK AND DECALS

S954969

CAB

- operator (Includes refs listed below and figures 80 thru 82 and 86 thru 90) (Order S956136 on figure 91A), Includes: Ref. 1 - 12

1шт.

1

S511103

GUARD

ASSEMBLY - vandal

1шт.

2

S955041

GUARD

- plastic vandal

1шт.

3

S109504

"U" CLIP

2шт.

4

182-560

SCREW,Cross Pan Hd, 1/4"-20 x 3/4"

- machine 1/4" NC x 3/4"

4шт.

5

193-8

LOCK WASHER,Ext Tooth, 1/4"

WASHER, LOCK, Ext Tooth, 1/4"

4шт.

6

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

4шт.

7

195-101

WASHER,3/16"

- flat 1/4"

4шт.

8

195-513

WASHER,#10

- flat 7/32"

4шт.

9

S108311

CLIP

2шт.

10

S109782

RIVET

- blind

4шт.

11

S231617

CLIP

1шт.

12

S511226

BRACKET

1шт.

13

182-557

SCREW,Cross Pan Hd, #10-32 x 3/4"

- machine no. NF x 3/4" (Replaces S109769)

2шт.

14

S109781

LATCH

- fastener

1шт.
