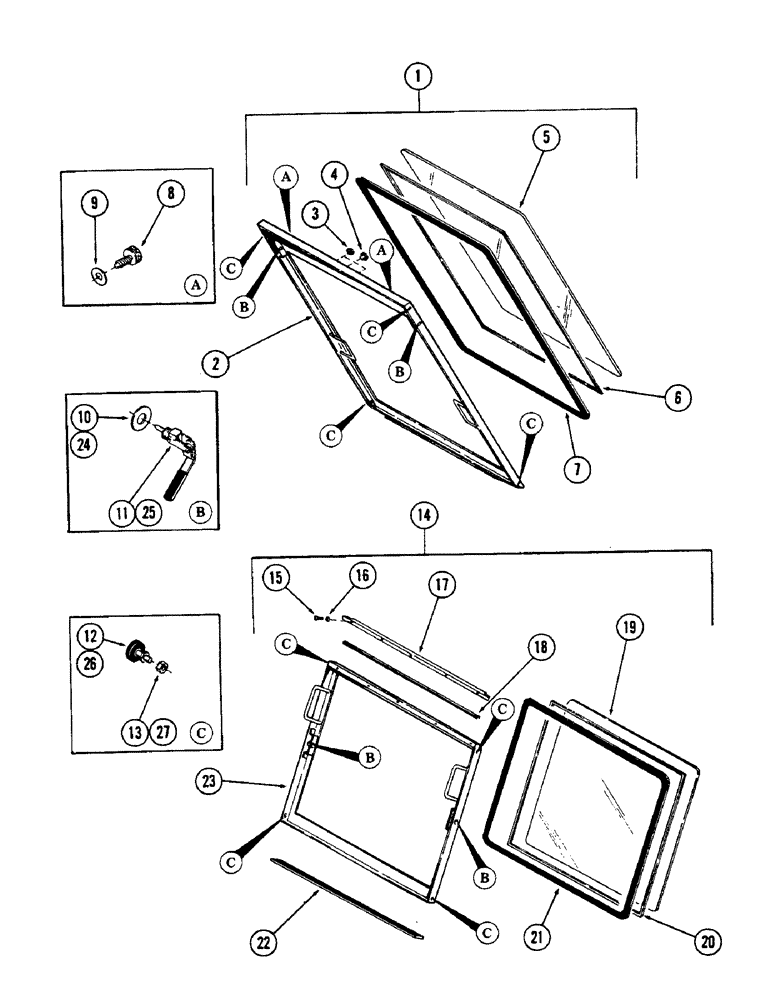

Запчасти Case 50 (086) - CAB & ATTACHING PARTS, (UPPER & LOWER FRONT WINDOWS & ATTACHING PARTS) (USED ON UNITS W/ CAB SN. (90) - PLATFORM, CAB, BODYWORK AND DECALS

S954969

CAB

- operator (Includes refs listed below and figures 80 thru 84 and 88 thru 90) (Order S956136 on figure 91A), Includes: Ref. 1 - 28

1шт.

1

S610671

WINDOW

ASSEMBLY - front upper, Includes: Ref. 2 - 13

1шт.

2

NSS

NOT SOLD SEPARAT

WINDOW - weldment

1шт.

3

353-260

PLUG - 5/16" Cap, 5/16"-24

2шт.

4

353-265

PLUG - 3/4" Cap, 3/4"-16

1шт.

5

S108099

GLASS - front upper

1шт.

6

S75830

SEAL

STRIP - filler (Bulk) 1 piece 145" long (145")

1шт.

7

S75829

SEAL

RUBBER - glass setting (Bulk) 1 piece 145" long (145")

1шт.

8

S109773

FASTENER

2шт.

9

S60969

WASHER

- flat 1/2"

2шт.

10

195-45

WASHER,3/4"

2шт.

11

S231570

CLAMP

- windshield (Right hand)

1шт.

S231571

CLAMP

- windshield (Left hand)

1шт.

12

D70621

ROLLER

- rubber

4шт.

13

129-105

NUT,Hex, 1/2" - 13, Gr 5

4шт.

14

S610674

WINDOW ASSY

WINDOW ASSEMBLY - front lower, Includes: Ref. 15 - 27

1шт.

15

S60105

SCREW - machine 1/4" NF x 1/2"

5шт.

16

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

5шт.

17

S511097

BRACKET

1шт.

18

S60106

CHANNEL - rubber (Bulk) 1 piece 30" long (30")

1шт.

19

S108100

WINDOW - plastic

1шт.

20

S75830

SEAL

STRIP - filler (Bulk) 1 piece 73" long (73")

1шт.

21

S75829

SEAL

RUBBER - glass setting (Bulk) 1 piece 73" long (73")

1шт.

22

S118470X

SEAL

- (Bulk) 1 piece 62" long (62") (Replaces S109510)

1шт.

23

S610763

WINDOW - weldment

1шт.

24

195-45

WASHER,3/4"

2шт.

25

S231570

CLAMP

- windshield (Right hand)

1шт.

S231571

CLAMP

- windshield (Left hand)

1шт.

26

D70621

ROLLER

- rubber

4шт.

27

129-105

NUT,Hex, 1/2" - 13, Gr 5

4шт.

28

S109779

ADHESIVE - (Not illustrated)

1шт.
