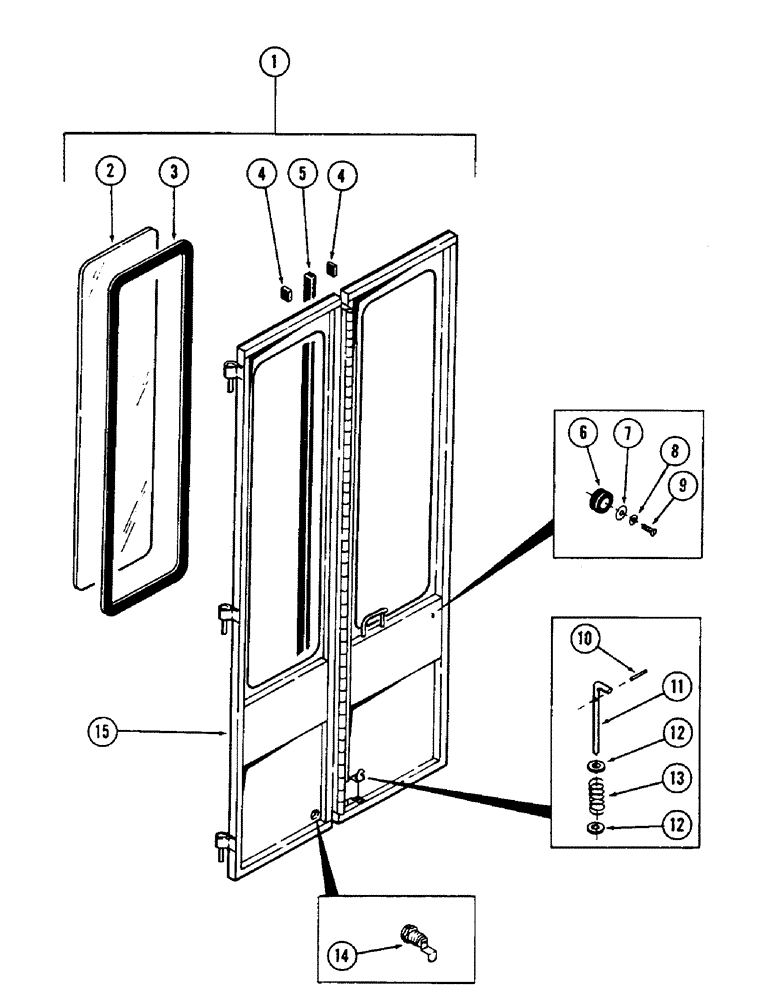

Запчасти Case 50 (084) - CAB AND ATTACHING PARTS, (DOOR AND ATTACHING PARTS) (USED ON UNITS W/ CAB SN. A306825 AND BEFORE) (90) - PLATFORM, CAB, BODYWORK AND DECALS

S954969

CAB

- operator (Includes refs listed below and figures 80 thru 82 86 thru 90) (Order S956136 on figure 91A)

1шт.

1

S955011

DOOR ASSY.

DOOR ASSEMBLY, Includes: Ref. 2 - 18

1шт.

2

S108102

WINDOW - plastic

2шт.

3

S109778

SEAL

SETTING MATERIAL - (Bulk) 2 pieces 92" long (92")

1шт.

4

S109777

SEAL

- (Bulk) 1 piece 6" long (Cut into 4 pieces 1.3" length) (6")

1шт.

5

S109508

SEAL

- (Bulk) 1 piece 59" long (59")

1шт.

6

S109512

BUMPER

- door stop

1шт.

7

S109505

WASHER - fender

1шт.

8

S7374

WASHER

- flat 7/32"

1шт.

9

174-102

SCREW,Sl Rnd Hd, #10 - 32 x 1"

- machine no. 10-32 NF x 1" (Replaces S14556)

1шт.

10

138-57

LOCK PIN,1/8" x 3/4", Slotted

PIN, (Replaces S90087) 1/8" x 3/4", Slotted

1шт.

11

S231613

PIN

1шт.

12

195-102

WASHER,1/4"

- flat 1/4"

2шт.

13

S62977

SPRING

1шт.

14

S90080

LOCK

- door

1шт.

15

NSS

NOT SOLD SEPARAT

DOOR - weldment

1шт.

16

REF

INSTRUCTION

INSULATION - (See ref 3 on figure 90)

1шт.

17

REF

INSTRUCTION

INSULATION - (See ref 4 on figure 90)

1шт.

18

S95517

ADHESIVE

- (Not illustrated)

1шт.
