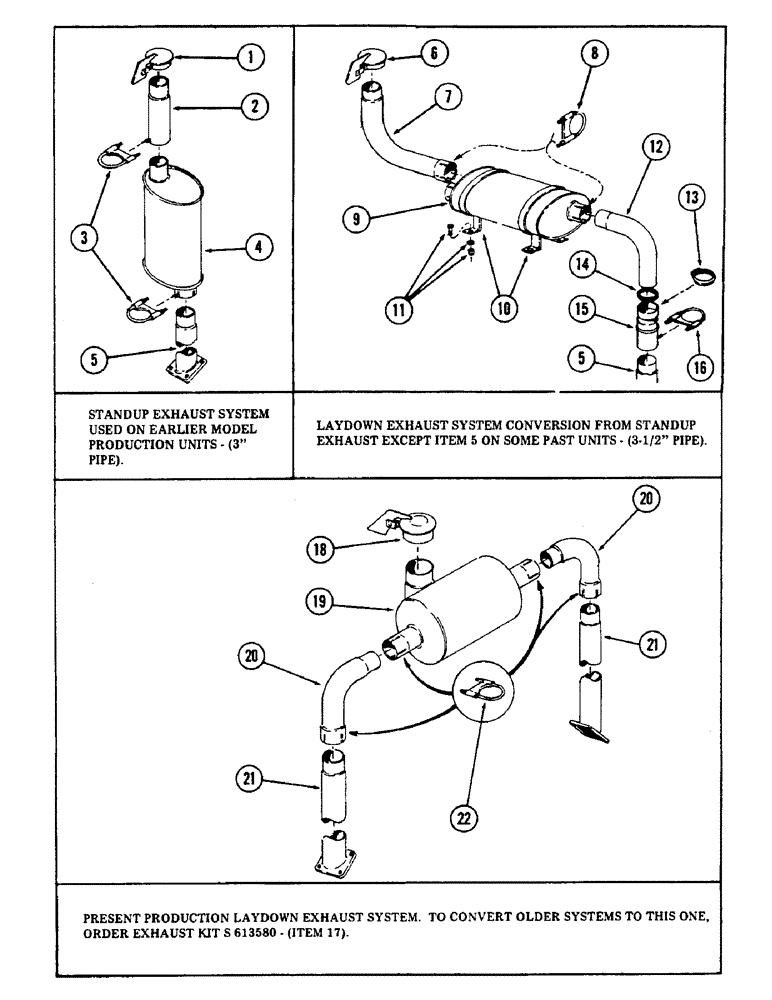

Запчасти Case 50 (044) - DETROIT DIESEL 6V-53 EXHAUST ASSEMBLIES, (S/N 6279926 AND AFTER) (10) - ENGINE

1

D33884

CAP

- exhaust pipe

2шт.

2

S99139

PIPE - exhaust tail

2шт.

3

S65056

CLAMP

- pipe (2 per side)

4шт.

4

S508699

MUFFLER

- (With 3" inlet)

2шт.

5

S219930

PIPE - exhaust (Use with standup or lay down exhaust)

2шт.

6

A19795

CAP

- exhaust pipe

2шт.

7

S99158

ELBOW

PIPE - exhaust tail

2шт.

8

L12413

CLAMP

- pipe (2 per side)

4шт.

9

S508420

MUFFLER

2шт.

10

S233209

BRACKET

- (2 per muffler)

4шт.

11

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

Hex, 3/8"-16 x 1 1/4", G5, Full Thd (2 per bracket)

8шт.

195-525

WASHER,3/8", SAE

- flat 3/8"

8шт.

131-52

NUT,3/8"-16, GC

NUT - self locking 3/8" NC

8шт.

12

S234000

ELBOW

PIPE - exhaust

2шт.

13

S107151

CLAMP

- pipe

2шт.

14

S107152

GASKET

- expand-o-flex

2шт.

15

S99951

ADAPTER - tube

2шт.

16

S65056

CLAMP

- pipe

2шт.

17

S613580

MUFFLER

KIT - exhaust conversion (1 per engine), Includes: Ref. 18 - 22

1шт.

18

S114158

CAP

- exhaust pipe

1шт.

19

S513211

MUFFLER

- spiral

1шт.

20

S236276

PIPE, EXHAUST SYSTEM

PIPE - exhaust elbow

2шт.

21

S236361

PIPE ASSY.

PIPE - exhaust

2шт.

22

S65056

CLAMP

- pipe

4шт.
