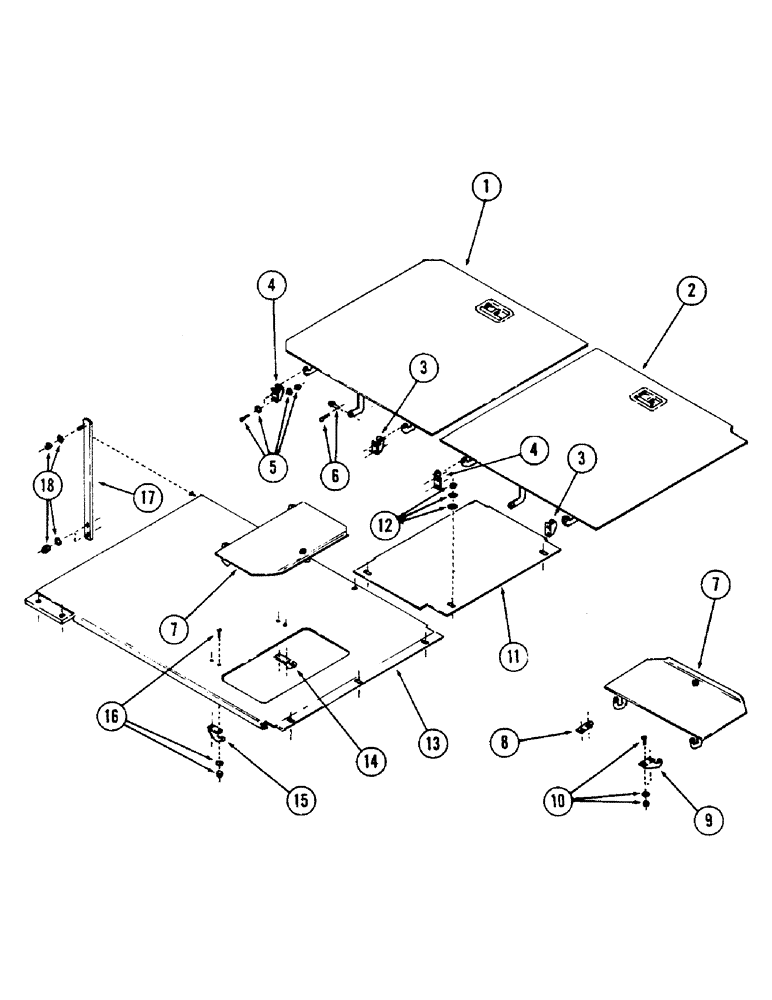

Запчасти Case 50 (324) - ENGINE AREA VANDAL GROUP, (USED ON UNITS WITH SERIAL NUMBER 6279926 - 6280344)(SN. 6279926 AND AFTER (88) - ACCESSORIES

1

S511119

DOOR - right front top

1шт.

2

S511118

DOOR - right rear top

1шт.

3

S221455

BRACKET

- door mounting

2шт.

4

S222540

BRACKET - door mounting

2шт.

5

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

8шт.

196-5

WASHER,13/32" x 1 1/16" x .095", HDN

- flat 3/8" (2 per bracket)

16шт.

131-52

NUT,3/8"-16, GC

NUT - self locking 3/8" NC

8шт.

6

S217887

PIN

2шт.

A70250

PIN

- hair

2шт.

7

S510129

COVER

2шт.

8

S222540

BRACKET

1шт.

9

S221455

BRACKET

1шт.

10

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

196-5

WASHER,13/32" x 1 1/16" x .095", HDN

- flat 3/8"

8шт.

131-52

NUT,3/8"-16, GC

NUT - self locking 3/8" NC

4шт.

11

S511125

SHROUD - top center

1шт.

12

113-424

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

2шт.

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

196-15

WASHER,17/32" x 1 1/6" x .134"

- flat 1/2"

2шт.

13

S508746

SHROUD - left top

1шт.

196-15

WASHER,17/32" x 1 1/6" x .134"

- flat 1/2"

1шт.

131-70

NUT,1/2"-13, GB

NUT - self locking 1/2" NC

1шт.

14

S222540

BRACKET

1шт.

15

S221455

BRACKET

1шт.

16

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

196-5

WASHER,13/32" x 1 1/16" x .095", HDN

- flat 3/8" (2 per bracket)

8шт.

131-52

NUT,3/8"-16, GC

NUT - self locking 3/8" NC

4шт.

17

S226317

BRACKET

1шт.

18

131-70

NUT,1/2"-13, GB

NUT - self locking 1/2" NC

3шт.

196-15

WASHER,17/32" x 1 1/6" x .134"

- flat 1/2"

3шт.

19

S511120

CHANNEL - (With S511118 not illustrated)

1шт.

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

196-15

WASHER,17/32" x 1 1/6" x .134"

- flat 1/2"

2шт.
