(320) - OPTIONAL TRACK TREAD ADJUSTING JACK, (S/N 6279926 AND AFTER)

Запчасти Case 50 (320) - OPTIONAL TRACK TREAD ADJUSTING JACK, (S/N 6279926 AND AFTER) (88) - ACCESSORIES

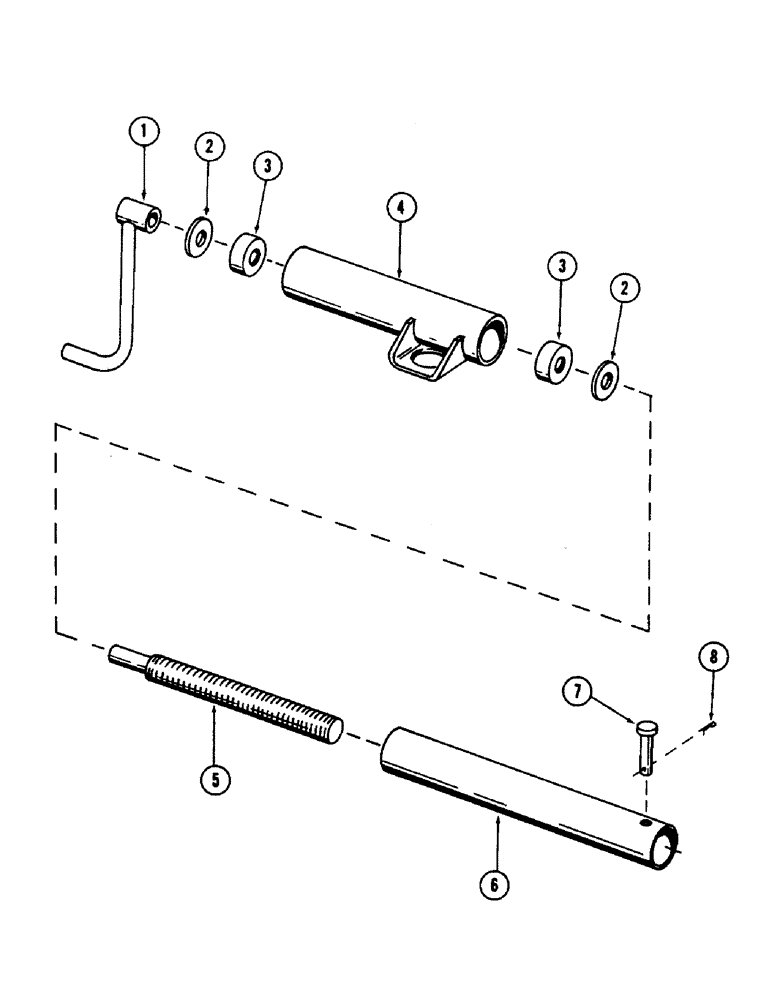

Схема запчастей Case 50 - (320) - OPTIONAL TRACK TREAD ADJUSTING JACK, (S/N 6279926 AND AFTER) (88) - ACCESSORIES
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

S39583

STAND

JACK ASSEMBLY - track adjustment, Includes: Ref. 1 - 6

1шт.

1

S209382

HANDLE

1шт.

2

195-41

WASHER,5/8"

2шт.

3

T38072

BALL BEARING

BEARING (Replaces S70299)

2шт.

4

NSS

NOT SOLD SEPARAT

TUBE - outer

1шт.

5

NSS

NOT SOLD SEPARAT

SCREW - jack

1шт.

6

NSS

NOT SOLD SEPARAT

TUBE - inner

1шт.

7

S10813

PIN

- clevis 1/2" x 2.375" grip length

1шт.

8

A70250

PIN

- hair

1шт.
