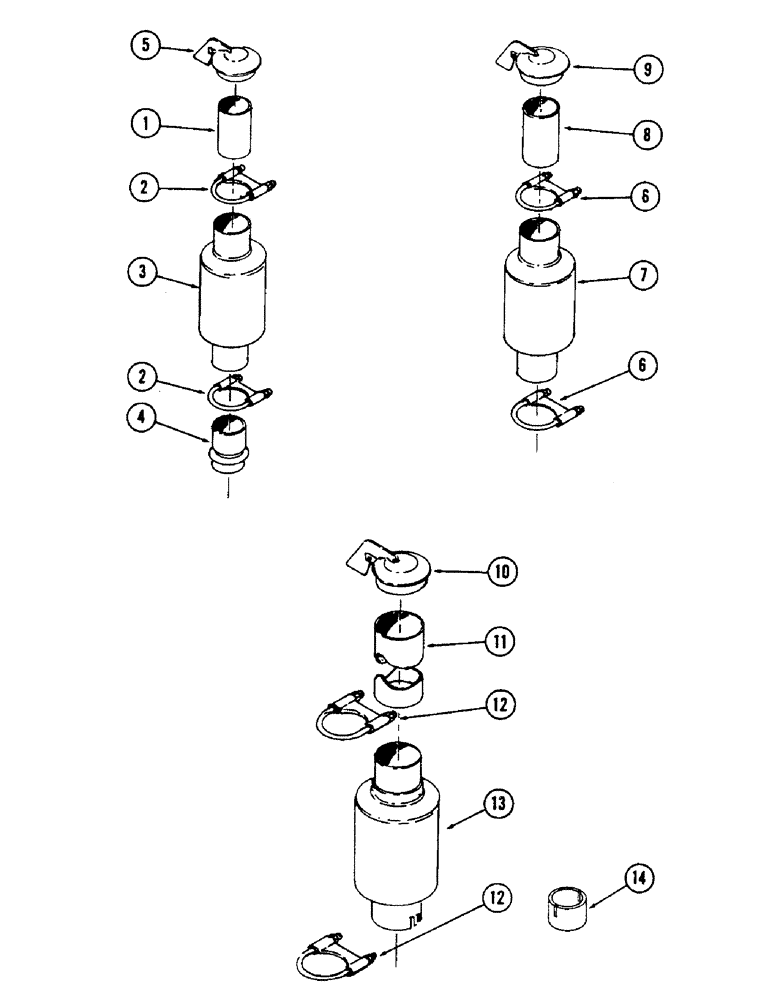

Запчасти Case 50 (318) - OPTIONAL SPARK ARRESTORS, (S/N 6279926 AND AFTER) (88) - ACCESSORIES

S607430

KIT - spark arrestor (For 3" pipe), Includes: Ref. 1 - 4

2шт.

1

S99883

PIPE

- exhaust

1шт.

2

S65056

CLAMP

- exhaust pipe

2шт.

3

S99882

MUFFLER

ARRESTOR - spark

1шт.

4

S99867

CONNECTOR

1шт.

5

REF

INSTRUCTION

CAP - rain (See figure 40 and 44)

1шт.

S612715

KIT - spark arrestor (For 3-1/2" pipe), Includes: Ref. 6 - 8

2шт.

6

L12413

CLAMP

- exhaust pipe

2шт.

7

S226198

SPARK ARRESTER

ARRESTOR - spark

1шт.

8

S99869

PIPE, EXHAUST SYSTEM

PIPE - exhaust

1шт.

9

REF

INSTRUCTION

CAP - rain (See figure 40 and 44)

1шт.

S613553

KIT

- spark arrestor (For 5" pipe), Includes: Ref. 10 - 14

1шт.

10

S107833

CAP

- rain

1шт.

11

S114179

PIPE - exhaust

1шт.

12

A142761

- exhaust pipe (Replaces S105030)

2шт.

13

S228672

MUFFLER

ARRESTOR - spark

1шт.

14

S114478

SPACER

- exhaust pipe

1шт.
