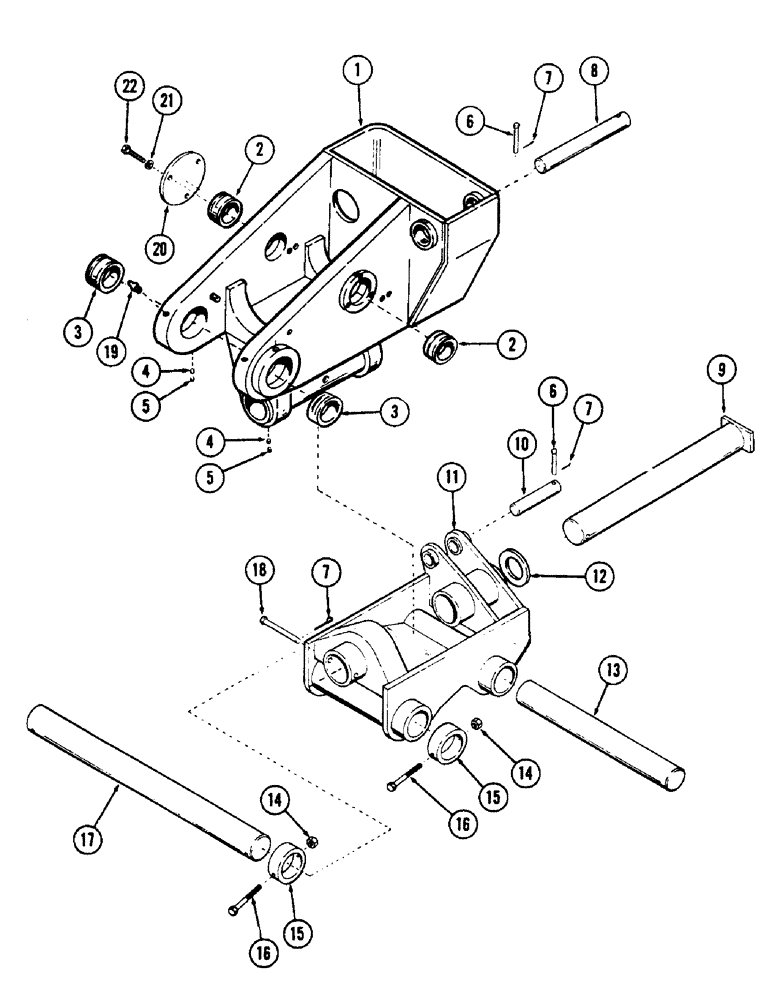

Запчасти Case 50 (130) - WRIST-O-TWIST, (S/N 6279926 AND AFTER) (84) - BOOMS, DIPPERS & BUCKETS

1

S614180

FRAME - wrist-o-twist upper, Includes: Ref. 2 - 5

1шт.

2

S234928

BUSHING

- upper frame

2шт.

3

S229392

BUSHING

- upper frame

2шт.

4

178-53

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

SCREW - set 3/8" x 3/8" NC (Cone point)

2шт.

5

83-66

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

SCREW - set

2шт.

6

S10784

PIN

- clevis 3/8" x 3.02" grip length

2шт.

7

132-77

COTTER PIN,5/32" x 2"

PIN - cotter 5/32" x 1-1/4" (Replaces 132-71)

5шт.

8

S237768

PIN

- wrist-o-twist cylinder base, Serial Range: end-frame

1шт.

9

S237765

PIN - frame assy to hinge assy

1шт.

10

S237767

SLEEVE

- wrist-o-twist cylinder rod, Serial Range: end-frame

1шт.

11

S614169

HINGE

1шт.

12

S112015

WASHER

- shim

1шт.

13

S229561

PIN

-, Serial Range: bucket-hinge

1шт.

14

131-70

NUT,1/2"-13, GB

NUT - lock 1/2" NC hex

2шт.

15

S117144

COLLAR

(Replaces S106360)

2шт.

16

113-429

BOLT,Hex, 1/2" - 13 x 5", Gr 5

2шт.

17

S229550

PIN

-, Serial Range: bucket-hinge

1шт.

18

S61976

CLEVIS PIN

PIN - clevis 5/8"

1шт.

19

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - 1/8" PT

5шт.

20

S106642

COVER

2шт.

21

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.

22

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

6шт.
