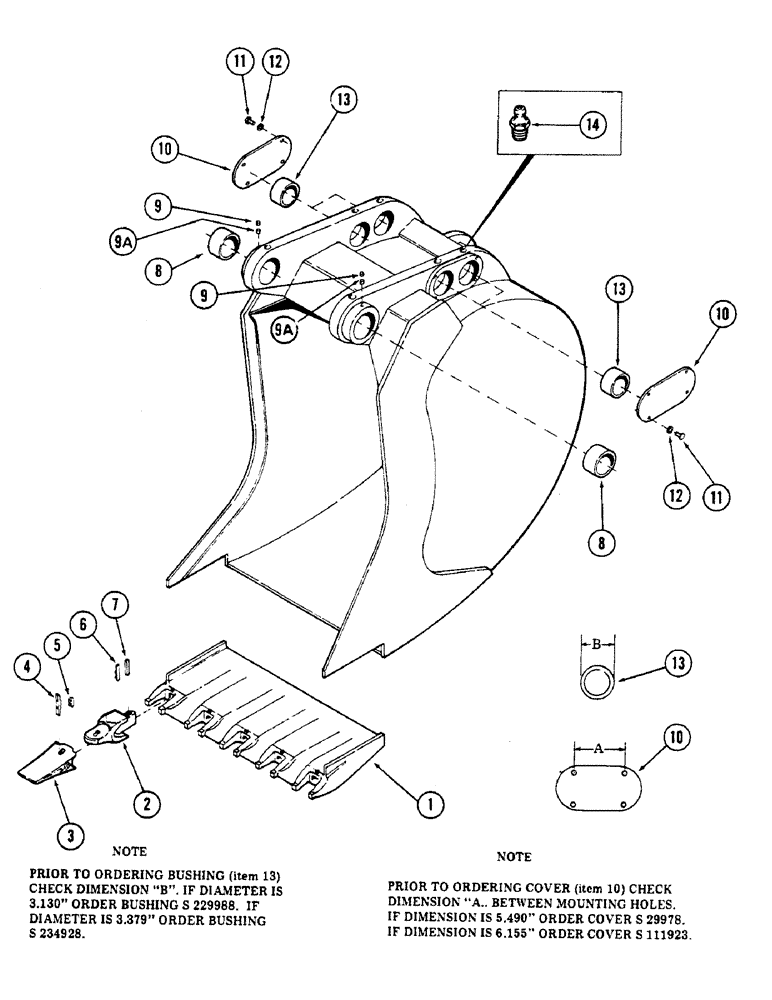

Запчасти Case 50 (124) - BACKHOE BUCKETS, (SEVERE DUTY) (S/N 6279926 AND AFTER) (84) - BOOMS, DIPPERS & BUCKETS

S955483

BUCKET ASSEMBLY - backhoe 1/2 cu. yd. ( 24'' WIDE), Includes: Ref. 1

1шт.

1

S98400

EDGE

- cutting Esco lip, 1/2 CU. YD. BACKHOE BUCKET (24" WIDE)

1шт.

1

S955489

BUCKET ASSEMBLY - backhoe 1 cu. yd. (36" WIDE), Includes: Ref. 1

1шт.

1

S98402

LIP

EDGE - cutting Esco lip, 1 CU. YD. BACKHOE BUCKET (36" WIDE)

1шт.

S955492

BUCKET ASSEMBLY - backhoe 1-1/4" cu. yd. (42" WIDE), Includes: Ref. 1

1шт.

1

S98404

EDGE - cutting Esco lip, 1-1/4 CU. YD. BACKHOE BUCKET (42" WIDE)

1шт.

2

S91258

ADAPTER

TOOTH ASSEMBLIES

1шт.

3

S91259

POINT

TOOTH ASSEMBLIES

1шт.

4

S91265

PIN

TOOTH ASSEMBLIES

1шт.

5

S90192

LOCK

TOOTH ASSEMBLIES

1шт.

6

S110285

WEDGE

- (Supersedes S96435), TOOTH ASSEMBLIES

1шт.

7

S110286

SPOOL

- (Supersedes S96436), TOOTH ASSEMBLIES

1шт.

8

S229392

BUSHING

BUCKET RELATED PARTS

2шт.

9

83-66

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

SCREW - set 3/8" NC x 3/8" (Cup point) (Top S229392 bushing), BUCKET RELATED PARTS

2шт.

9a

178-53

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

SCREW - set 3/8" NC x 3/8" (Cone point) (Bottom S229392 bushing), BUCKET RELATED PARTS

2шт.

10

REF

INSTRUCTION

COVER - (See note on figure 122), BUCKET RELATED PARTS

2шт.

Prior to ordering cover check dimension "A" between mounting holes. If dimension is 5.940" order cover S229978. If dimension is 6.155" order cover S111923.

1шт.

11

26-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 8

CPSW - 3/8" NC x 7/8" gr 5, BUCKET RELATED PARTS

8шт.

12

192-21

LOCK WASHER,3/8"

WASHER, LOCK, , Bucket related parts 3/8"

8шт.

13

REF

INSTRUCTION

BUSHING - (See note on figure 122), BUCKET RELATED PARTS

2шт.

Prior to ordering bushing check dimension "B" if diameter is 3.130" order bushing S229988. If diameter is 3.379" order bushing S234928.

1шт.

14

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease 1/8" NPT (Straight), BUCKET RELATED PARTS

6шт.

15

S23395

SCREW

- drive no. 7 NC x 5/16" (Not illustrated), BUCKET RELATED PARTS

2шт.

16

S48092

PLATE - serial (Not illustrated), BUCKET RELATED PARTS

1шт.

S612223

mounting, available, BUCKET RELATED PARTS

1шт.
