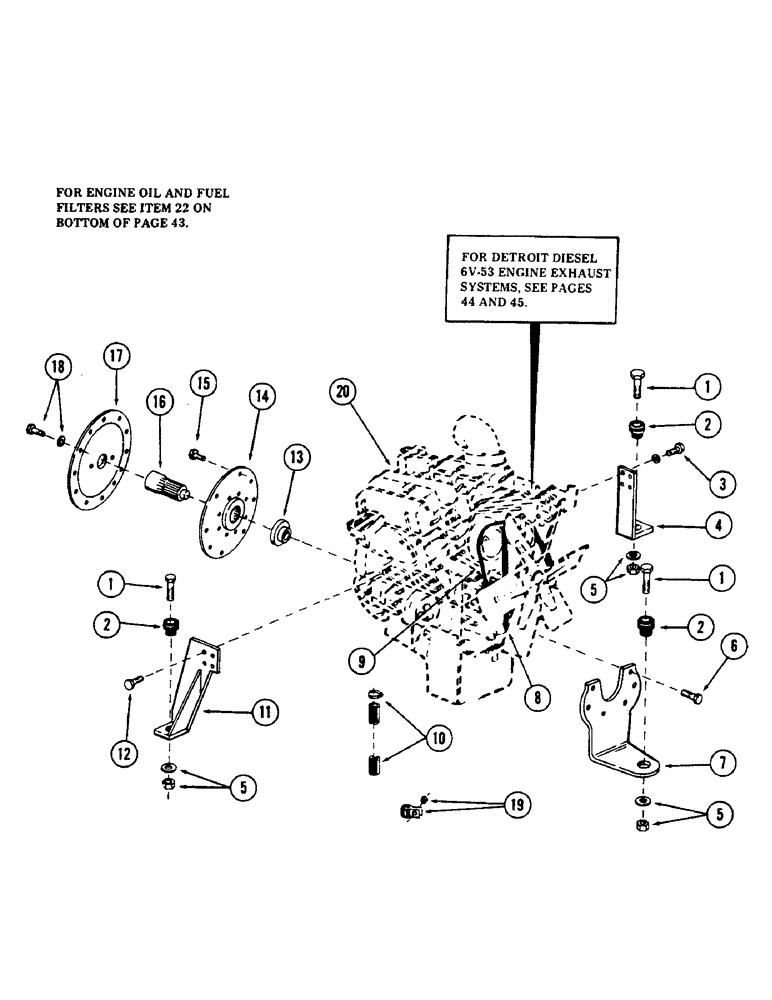

Запчасти Case 50 (042) - DETROIT DIESEL 6V-53 ENGINE & MOUNTING PARTS, (S/N 6279926 AND AFTER) (10) - ENGINE

1

13-1268

BOLT,Hex, 3/4" - 10 x 4-1/4", Gr 5

- 3/4" NC x 4-1/4" gr 5

3шт.

2

S93392

MOUNTING PARTS

MOUNT - rubber

3шт.

3

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

4

S506065

BRACKET

- rear engine mounting (Left hand)

1шт.

5

195-2270

WASHER,13/16" x 3" x .238", HDN

- snubbing 3/4"

3шт.

6

113-311

BOLT,Hex, 7/16" - 14 x 1-1/2", Gr 5

6шт.

7

S505886

BRACKET

- front engine mounting

1шт.

8

S116164

BELT,0.50" W x 42.00" L

SET OF BELTS , V-BELT, Fan (Matched set of 2) (Supersedes S84944) 0.50" W x 42.00" L

1шт.

9

S211672

BELT

SET OF BELTS, V- Belt, Alternator (Matched set of 2)

1шт.

10

S202581

HYDRAULIC HOSE,1.00" ID Bulk, SAE 100R3

- Low pressure, 1 piece - 30" long (Onto engine breather tube) 1.00" ID Bulk, SAE 100R3

1шт.

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose

1шт.

11

S506064

BRACKET

- rear engine mounting (Right hand), Serial Range: 6279926-6280344

1шт.

S613277

BRACKET - rear engine mounting (Right hand), Start Serial: 6280345

1шт.

12

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

13

S63071

SPACER

, Serial Range: 6279926-6280443

1шт.

14

S502452

DAMPER

DAMPENER - pump drive, Serial Range: 6279926-6280443

1шт.

S513495

PLATE

DAMPENER - pump drive, Start Serial: 6280444

1шт.

15

121-204

BOLT,Lock Place, Hex, 3/8" - 16 x 5/8", Gr 8

- shoulder (3/8" NC x 5/8" gr 8

8шт.

16

S63201

COUPLING

, Serial Range: 6279926-6280443

1шт.

S229599

DRIVE SHAFT

COUPLING, Start Serial: 6280444

1шт.

17

S52615

MOUNTING PARTS

MOUNTING - hydraulic pump

1шт.

18

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

10шт.

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

12шт.

19

S86530

CLAMP

-, Serial Range: hose-turntable

1шт.

131-52

NUT,3/8"-16, GC

NUT - self locking 3/8" NC

1шт.

20

S614154

ENGINE DETROIT DIESEL - 6V-53 (Supersedes S609967)

1шт.

21

S97540

FAN

SPACE - fan (Not illustrated)

2шт.

113-111

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

(Mounts spacer behind fan blower) (Not illustrated) Hex, 5/16"-18 x 2 1/2", G5

6шт.

22

S105608

ELEMENT

- oil filter (Not illustrated)

1шт.

S105493

ELEMENT

- fuel strainer (Not illustrated)

1шт.

S105610

ELEMENT

- fuel filter (Not illustrated)

1шт.
