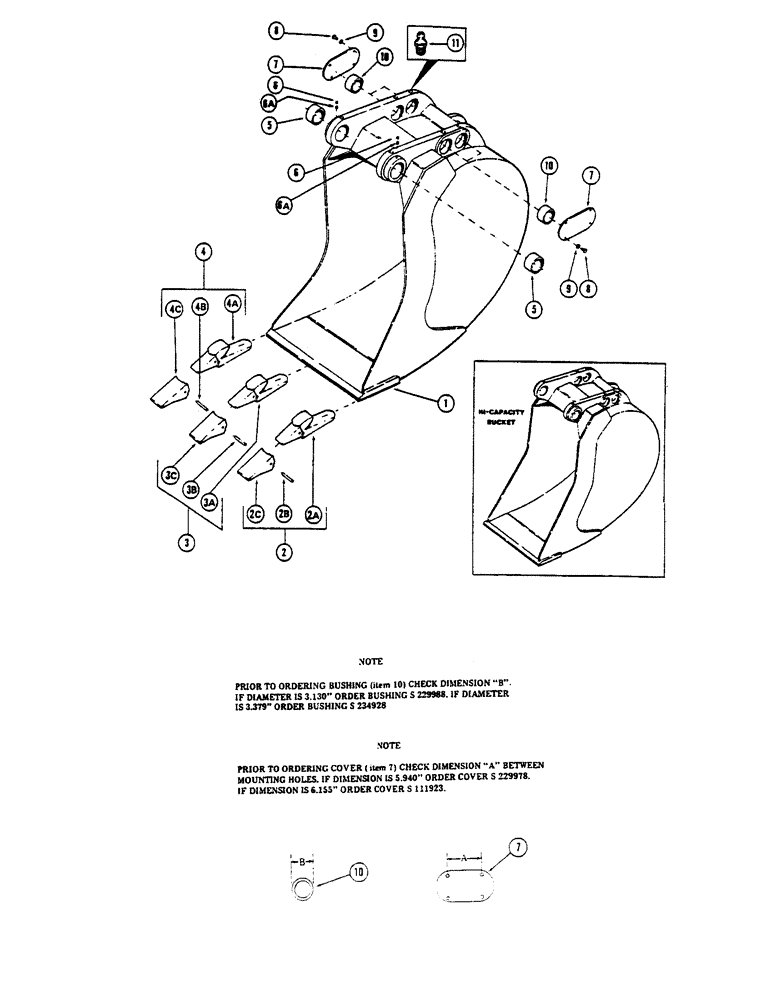

Запчасти Case 50 (122) - BACKHOE BUCKETS, (GENERAL PURPOSE) (S/N 6279926 AND AFTER), BUCKET RELATED PARTS. (84) - BOOMS, DIPPERS & BUCKETS

5

S229392

BUSHING

2шт.

6

83-66

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

SCREW - set 3/8" NC x 3/8" (Cup point) (Top S229392 bushing)

2шт.

6a

178-53

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

SCREW - set 3/8" NC x 3/8" (Cone point) (Bottom S229392 bushing)

2шт.

7

REF

INSTRUCTION

COVER

2шт.

Prior to ordering cover check dimension "A" between mounting holes. If dimension is 5.940" order cover S229978. If dimension is 6.155" order cover S111923.

1шт.

8

26-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 8

CPSW - 3/8" NC x 7/8" gr 5

8шт.

9

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

8шт.

10

REF

INSTRUCTION

BUSHING

4шт.

Prior to ordering bushing check dimension "B" if diameter is 3.130" order bushing S229988. If diameter is 3.379" order bushing S234928.

1шт.

11

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - lube 1/8" NPT (Straight)

6шт.

12

S23395

SCREW

- drive no. 7 NC x 5/16" (Not illustrated)

2шт.

13

S48092

PLATE - serial (Not illustrated)

1шт.
