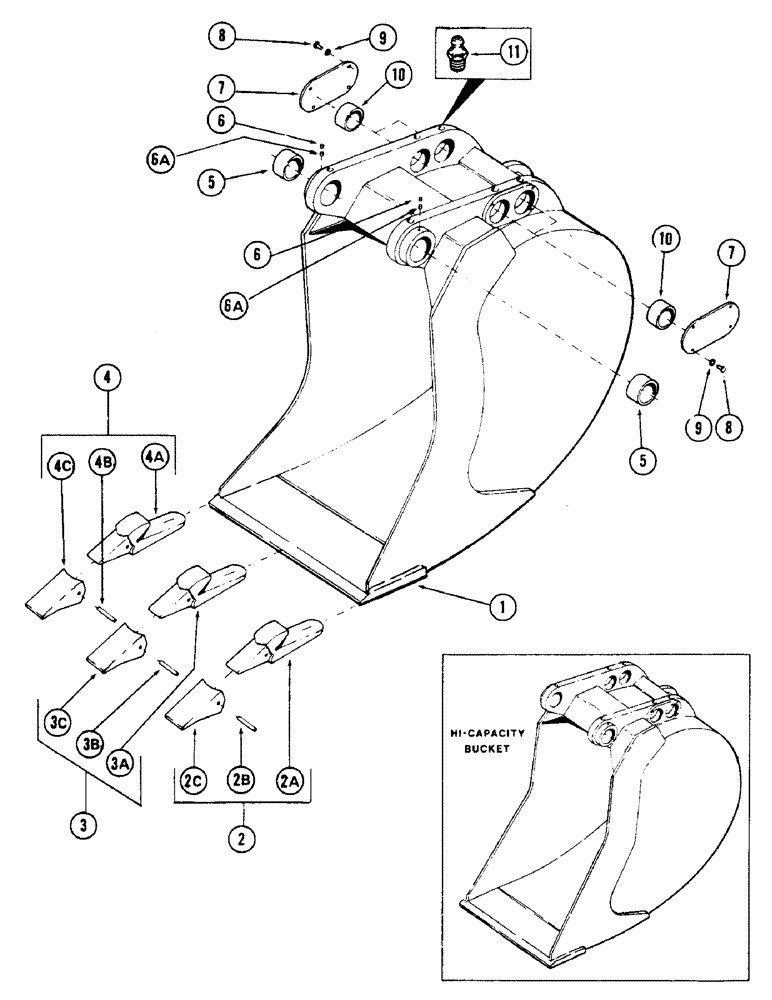

Запчасти Case 50 (120) - BACKHOE BUCKETS, (GENERAL PURPOSE) (S/N 6279926 AND AFTER), 3/4 CU. YD. BACKHOE BUCKET (30" WIDE) (84) - BOOMS, DIPPERS & BUCKETS

S955485

BUCKET ASSEMBLY - backhoe 3/4 cu. yd., Includes: Ref. 1 - 4

1шт.

1

S231088

EDGE - cutting 30"

1шт.

2

S510310

TOOTH

ASSEMBLY - right outside (Parts listed below)

1шт.

3

S510308

TOOTH

ASSEMBLY - center (Parts listed below)

3шт.

4

S510309

TOOTH

ASSEMBLY - left outside (Parts listed below)

1шт.

S955488

BUCKET ASSEMBLY - backhoe 1 cu. yd. bucket (36" wide), Includes: Ref. 1 - 4

1шт.

1

S231089

EDGE - cutting 36", 1 cu. yd. backhoe bucket (36" wide)

1шт.

2

S510310

TOOTH

ASSEMBLY - right outside (Parts listed below), 1 cu. yd. backhoe bucket (36" wide)

1шт.

3

S510308

TOOTH

ASSEMBLY - center (Parts listed below), 1 cu. yd. backhoe bucket (36" wide)

3шт.

4

S510309

TOOTH

ASSEMBLY - left outside (Parts listed below), 1 cu. yd. backhoe bucket (36" wide)

1шт.

S955491

BUCKET ASSEMBLY - backhoe 1-1/4" cu. yd. (42" wide), Includes: Ref. 1 - 4

1шт.

1

S231090

EDGE - cutting 45", 1 - 1/4 cu. yd. bucket (42" wide)

1шт.

2

S510310

TOOTH

ASSEMBLY - right outside (Parts listed below), 1 - 1/4 cu. yd. bucket (42" wide)

1шт.

3

S510308

TOOTH

ASSEMBLY - center (Parts listed below), 1 - 1/4 cu. yd. bucket (42" wide)

4шт.

4

S510309

TOOTH

ASSEMBLY - left outside (Parts listed below), 1 - 1/4 cu. yd. bucket (42" wide)

1шт.

S954997

BUCKET ASSEMBLY - high capacity backhoe 1-1/4" cu. yd. (36" wide), Includes: Ref. 1 - 4

1шт.

1

S231089

EDGE - cutting 36", 1 - 1/4 cu. yd. high capacity backhoe bucket (36" wide)

1шт.

2

S510310

TOOTH

ASSEMBLY - right outside (Parts listed below), 1 - 1/4 cu. yd. high capacity backhoe bucket (36" wide)

1шт.

3

S510308

TOOTH

ASSEMBLY - center (Parts listed below), 1 - 1/4 cu. yd. high capacity backhoe bucket (36" wide)

3шт.

4

S510309

TOOTH

ASSEMBLY - left outside (Parts listed below), 1 - 1/4 cu. yd. high capacity backhoe bucket (36" wide)

1шт.

2

S510310

TOOTH

ASSEMBLY - right outside, Includes: Ref. 2A - 2C

1шт.

2a

S609410

SHANK

-, tooth assemblies

1шт.

2b

138-310

LOCK PIN,1/2" x 3", Slotted

PIN, , Tooth assemblies 1/2" x 3", Slotted

1шт.

2c

S510311

POINT

TIP - tooth assemblies

1шт.

3

S510308

TOOTH

ASSEMBLY - center, Includes: Ref. 3A - 4C

1шт.

3a

S609408

SHANK

- tooth assemblies

1шт.

3b

138-310

LOCK PIN,1/2" x 3", Slotted

PIN, , Tooth assemblies 1/2" x 3", Slotted

1шт.

3c

S510311

POINT

TIP - tooth assemblies

1шт.

4

S510309

TOOTH

ASSEMBLY - left hand, Includes: Ref. 4A - 4C

1шт.

4a

S609409

SHANK

- tooth assemblies

1шт.

4b

138-310

LOCK PIN,1/2" x 3", Slotted

PIN, , Tooth assemblies 1/2" x 3", Slotted

1шт.

4c

S510311

POINT

TIP - tooth assemblies

1шт.
