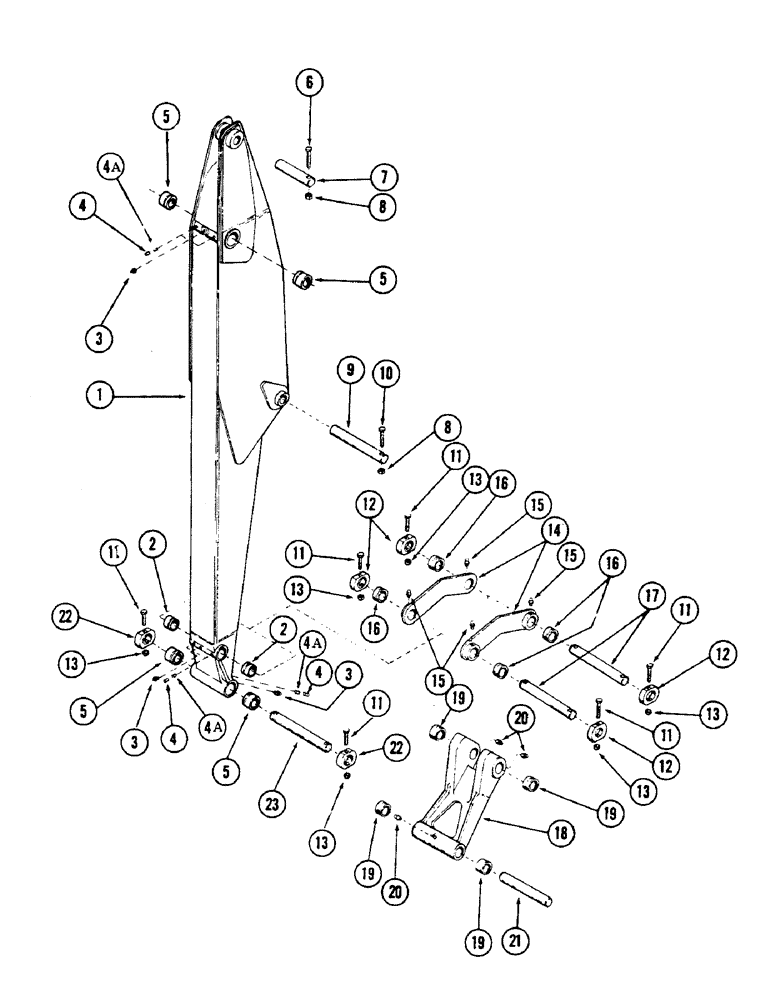

Запчасти Case 50 (118) - DIPPERSTICK AND ATTACHING LINKS WITH PINS, (S/N 6279926 & AFTER) (84) - BOOMS, DIPPERS & BUCKETS
№
Артикул
Название
Примечание
Количество
1
S954595
DIPPER
STICK - 9' 0", Includes: Ref. 2 - 5
1шт.
S954594
DIPPER
STICK - 10' 5", Includes: Ref. 2 - 5
1шт.
S954593
DIPPER
STICK - 12' 0", Includes: Ref. 2 - 5
1шт.
2
S229548
BUSHING
2шт.
3
219-1
LUBE NIPPLE,1/8" - 27 NPTF
FITTING - grease 1/8" NPT (Straight)
3шт.
4
83-66
SET SCREW,Hex Soc, 3/8"-16 x 3/8"
SCREW - set 3/8" NC x 3/8" (Cup point) (Top S229565 bushing)
1шт.
4a
178-53
SET SCREW,Hex Soc, 3/8"-16 x 3/8"
SCREW - set 3/8" NC x 3/8" (Cone point) (Bottom S229565 bushing)
1шт.
5
S229565
BUSHING
4шт.
6
26-892
CAPSCREW,Hex, 1/2" - 13 x 5 3/4", Gr 8
CPSW - 1/2" NC x 5-3/4" gr 8
1шт.
7
S230530
PIN - (Crowd cylinder rod, Serial Range: end-dipperstick)
1шт.
8
131-70
NUT,1/2"-13, GB
NUT - 1/2" NC
2шт.
9
S230474
PIN
- (Tool cylinder base, Serial Range: end-dipperstick)
1шт.
11
413-868
BOLT,Hex, 1/2" - 13 x 4-1/4", Gr 5
CPSW - 1/2" NC x 4-1/4" gr 5
6шт.
12
S106359
COLLAR
4шт.
13
129-544
NUT,Crown, 1/2"-13
- self locking end cap 1/2" NC
6шт.
14
S229605
LINK, Includes: Ref. 15 and 16
2шт.
15
219-1
LUBE NIPPLE,1/8" - 27 NPTF
FITTING - lube 1/8" NPT (Straight)
2шт.
16
S229548
BUSHING
2шт.
17
S234223
PIN
- (Link to dipperstick and tool cylinder rod end and attachment link to link) (Supersedes S229549)
2шт.
18
S510336
LINK
- attachment, Includes: Ref. 19 and 20
1шт.
19
S229548
BUSHING
4шт.
20
219-1
LUBE NIPPLE,1/8" - 27 NPTF
FITTING - grease 1/8" NPT (Straight)
3шт.
21
S229561
PIN
- (Attachment, Serial Range: link-attachment)
1шт.
22
S117144
COLLAR
(Replaces S106360)
2шт.
23
S229550
PIN
-, Serial Range: (Dipperstick-attachment)
1шт.
24
S111775
WASHER
- (For pin joints) 2-1/2" ID x 4" OD (1/8" thickness) (Not illustrated)
1шт.
25
S111776
WASHER
- (For pin joints) 3-1/16" ID x 5" OD (1/8" thickness) (Not illustrated)
1шт.
Выбрано товаров: 28
