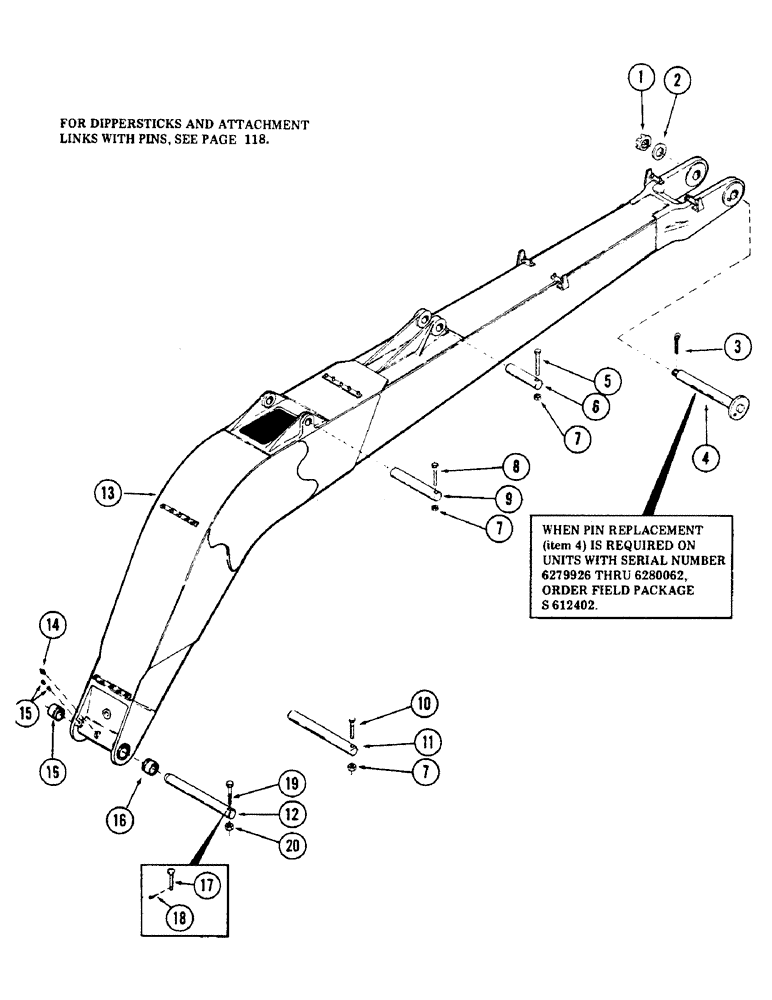

Запчасти Case 50 (116) - MAIN "E" BOOM AND PINS, (S/N 6279926 AND AFTER) (84) - BOOMS, DIPPERS & BUCKETS

1

25-3032

SLOTTED NUT,2"-4.5, G5, Hvy

NUT - slotted 2" NC

1шт.

2

S110511

WASHER

- flat (Supersedes 95-32)

1шт.

3

132-208

COTTER PIN,3/8" x 4"

Pin, Split (Cotter), 3/8" x 4"

1шт.

4

S235688

PIN ASSY.

PIN -, Serial Range: (Boom-dipper)

1шт.

When replacing boom, part number (S956021), The clamps, plates and hardware listed below also must be ordered.

1шт.

5

26-8112

BOLT,Hex, 1/2" - 13 x 7", Gr 8

CPSW - 1/2" NC x 7" gr 8

1шт.

6

S230531

PIN - (Crowd cylinder base, Serial Range: end-boom)

1шт.

7

131-7

LOCK NUT,7/16"-20

NUT - self locking 1/2" NC

3шт.

8

26-892

CAPSCREW,Hex, 1/2" - 13 x 5 3/4", Gr 8

CPSW - 1/2" NC x 5-3/4" gr 8

1шт.

9

S230475

PIN

- (Hoist cylinder rod, Serial Range: end-boom)

1шт.

10

26-896

BOLT,Hex, 1/2" - 13 x 6", Gr 8

CPSW - 1/2" NC x 6" gr 8

1шт.

11

S230473

PIN

- (Hoist cylinder base end to turntable), Serial Range: 6279926-6280344

1шт.

S237429

PIN

- (Hoist cylinder base end to turntable), Start Serial: 6280345

1шт.

12

S232621

PIN

- (Boom to turntable), Serial Range: 6279926-6280344

1шт.

S233786

PIN

- (Boom to turntable), Start Serial: 6280345

1шт.

13

S956021

BOOM

"E" BOOM - main, Serial Range: 6279926-6280344

1шт.

When replacing boom, part number (S956021), The clamps, plates and hardware listed below also must be ordered.

1шт.

S955823

BOOM

"E" BOOM - main, Start Serial: 6280345

1шт.

14

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease 1/8" NPT (Straight)

1шт.

15

178-53

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

SCREW - set 3/8" NC x 3/8" (Cone point) (Bottom of S229565 bushing)

2шт.

83-66

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

SCREW - set 3/8" NC x 3/8" (Cup point) (Top of S229565 bushing)

2шт.

16

S229565

BUSHING

2шт.

17

S61977

PIN

- clevis 5/8" x 6.266" grip length, Serial Range: 6279926-6280344

1шт.

18

132-77

COTTER PIN,5/32" x 2"

PIN - cotter 5/32" x 1-1/4" long (Replaces 132-71), Serial Range: 6279926-6280344

1шт.

19

26-12104

BOLT,Hex, 3/4" - 10 x 6-1/2", Gr 8

- 3/4" NC x 6-1/2" gr 5, Start Serial: 6280345

1шт.

20

131-16

LOCK NUT,3/4"-10, GB

LOCKNUT, 3/4"-10, GB, Start Serial: 6280345

1шт.

S112617

CLAMP

20шт.

S112618

PLATE

16шт.

S237644

PLATE

BRACKET - clamp mounting

2шт.

113-138

BOLT,Hex, 5/16" - 18 x 3-1/2", Gr 5

8шт.

113-177

BOLT,Hex, 5/16" - 18 x 3", Gr 5

32шт.

131-462

NUT,5/16"-18

NUT - 5/16" NC

8шт.

193-29

LOCK WASHER,Int Tooth, 5/16"

WASHER, LOCK, Int Tooth, 5/16"

32шт.
