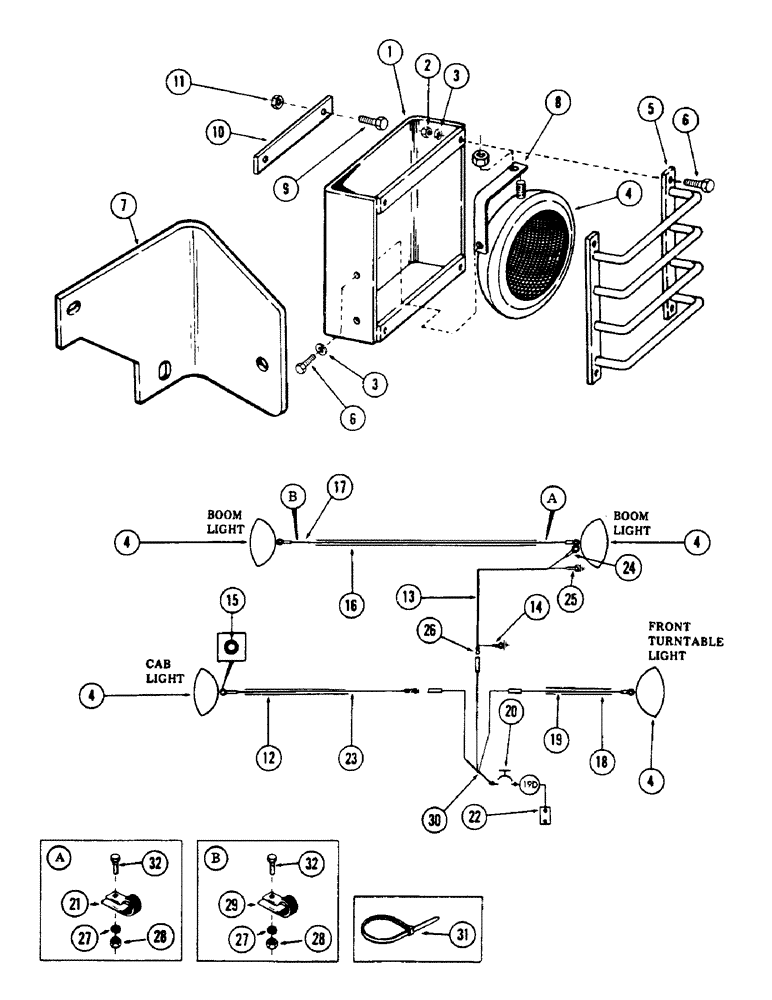

Запчасти Case 50 (314) - WORK LIGHTS AND ATTACHING PARTS, (USED ON UNITS WITH SN. 6280345 AND AFTER)(SN. 6279926 AND AFTER) (55) - ELECTRICAL SYSTEMS

1

S212579

GUARD

- housing

3шт.

2

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

12шт.

3

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

15шт.

4

D51222

LIGHT ASSY.

LIGHT

3шт.

5

S212578

PROTECTOR

GUARD - protector

3шт.

6

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

15шт.

7

S513939

GUARD

(Mounts on top of cab)

1шт.

8

S222287

BRACKET

ASSY

3шт.

9

80087972

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

- 1/2" x 2-1/2" NC hex (Grade 5)

2шт.

10

S86493

SPACER

- (Mounts between ref 1 and turntable)

1шт.

11

131-492

NUT,1/2"-13

NUT - lock 1/2" NC hex

2шт.

12

S62256

LOOM

- 21" long (533.4 MM)

1шт.

13

S69808

WIRE - (Bulk) 1 piece x 400" long (10.16 M) (400")

1шт.

14

223-52

FUSE

TERMINAL - eyelet

1шт.

15

A61144

GROMMET,1/2" ID x 13/16" Groove Dia, Str Cut

- (In cab)

2шт.

16

S62256

LOOM

- 36" long (914 MM)

1шт.

17

S237762

ELECTRICAL WIRE

WIRE - jumper

1шт.

18

S62256

LOOM

- 8" (203 MM)

1шт.

19

S234167

WIRE - jumper

1шт.

20

S88636

IGNITION SWITCH

SWITCH - light

1шт.

21

49885

CLAMP

1шт.

22

S115714

BREAKER

- circuit

1шт.

23

S237761

WIRE - jumper

1шт.

24

223-62

TERMINAL - eyelet

1шт.

25

223-59

TERMINAL CONNECTOR

TERMINAL - eyelet

1шт.

26

223-191

TERMINAL CONNECTOR,14 - 16

TERMINAL - male wire

3шт.

27

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

28

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

29

S15543

CLAMP,7/16", Insul, 1/2" Bolt

1шт.

30

S237763

WIRE - jumper

1шт.

31

S73387

CLIP

TIE - Cable (Mounts cables and wires)

1шт.

32

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- 3/8" x 1/2" NC hex (Grade 5)

1шт.
