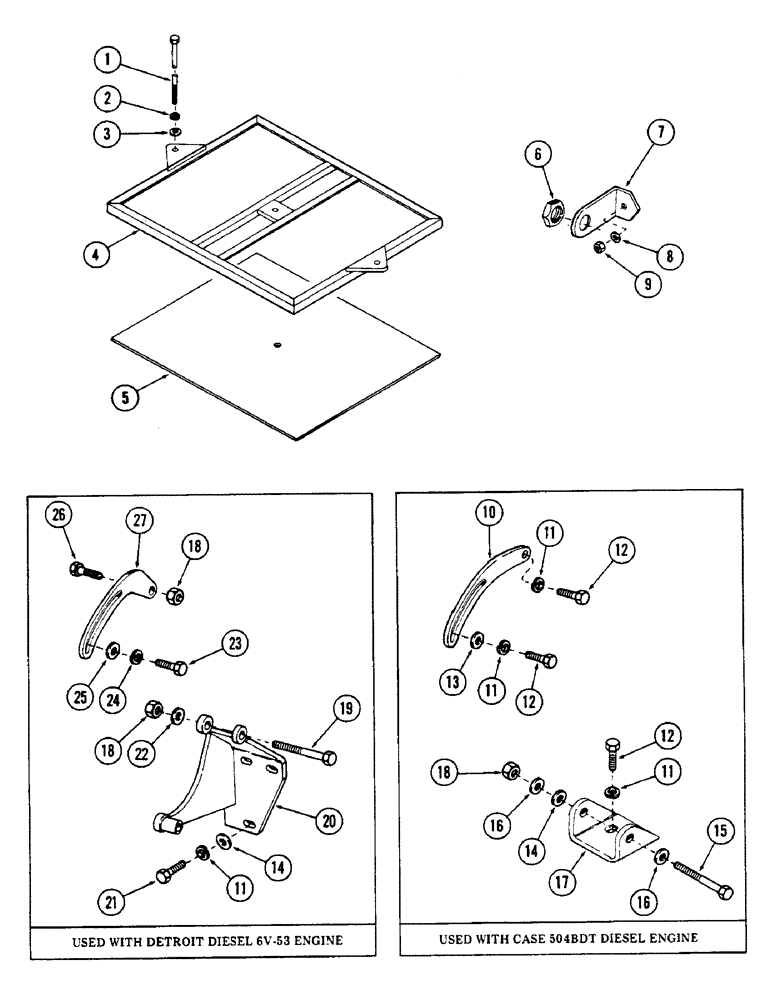

Запчасти Case 50 (292) - ELECTRICAL MOUNTING BRACKETS AND HARDWARE, (USED ON UNITS W/ SN. 6280345 & AFTER)(SN.6279926 & AFTER (55) - ELECTRICAL SYSTEMS

1

113-2446

BOLT,Hex, 1/2" - 13 x 10-1/2", Gr 5

3шт.

2

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

3шт.

3

S95569

WASHER

- flat 1/2"

3шт.

4

S511694

BATTERY

BRACKET - battery mounting

1шт.

5

S235290

GASKET

PAD - rubber

1шт.

6

S64752

NUT

- horn mounting

1шт.

7

S203190

BRACKET

- horn mounting

1шт.

8

195-102

WASHER,1/4"

- flat 1/4"

1шт.

9

86625061

NUT,1/4"-20, GB

NUT - self locking 1/4" NC

1шт.

10

S238535

BRACKET

STRAP - alternator adjusting

1шт.

11

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

12

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

CPSW - 3/8" NC x 3/4" gr 5

1шт.

13

195-525

WASHER,3/8", SAE

- flat 7/16"

1шт.

14

195-103

WASHER,5/16"

- flat 3/8" (Use as spacers)

1шт.

15

113-247

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

CPSW - 1/2" NC x 3" gr 5 (Alternator to bracket)

1шт.

16

195-530

WASHER,7/16"

- flat 1/2"

1шт.

17

A160391

BRACKET

- alternator mounting (Supersedes A38492)

1шт.

18

131-52

NUT,3/8"-16, GC

NUT - self locking 1/2" NC

1шт.

19

113-203

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

(Alternator to bracket) Hex, 3/8"-16 x 3 1/2", G5

1шт.

20

S211656

BRACKET

- alternator mounting

1шт.

21

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

(Bracket to engine) Hex, 3/8"-16 x 1 1/4", G5, Full Thd

3шт.

22

195-104

WASHER,3/8"

- flat 7/16" (Use as spacers)

1шт.

23

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

(Strap to alternator) Hex, 5/16"-18 x 1", G5, Full Thd

1шт.

24

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

25

195-521

WASHER,5/16", SAE

- flat 5/16"

1шт.

26

113-213

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

(Strap to engine) Hex, 3/8"-16 x 2 1/4", G5

1шт.

27

S200898

STRAP

- alternator adjusting

1шт.
