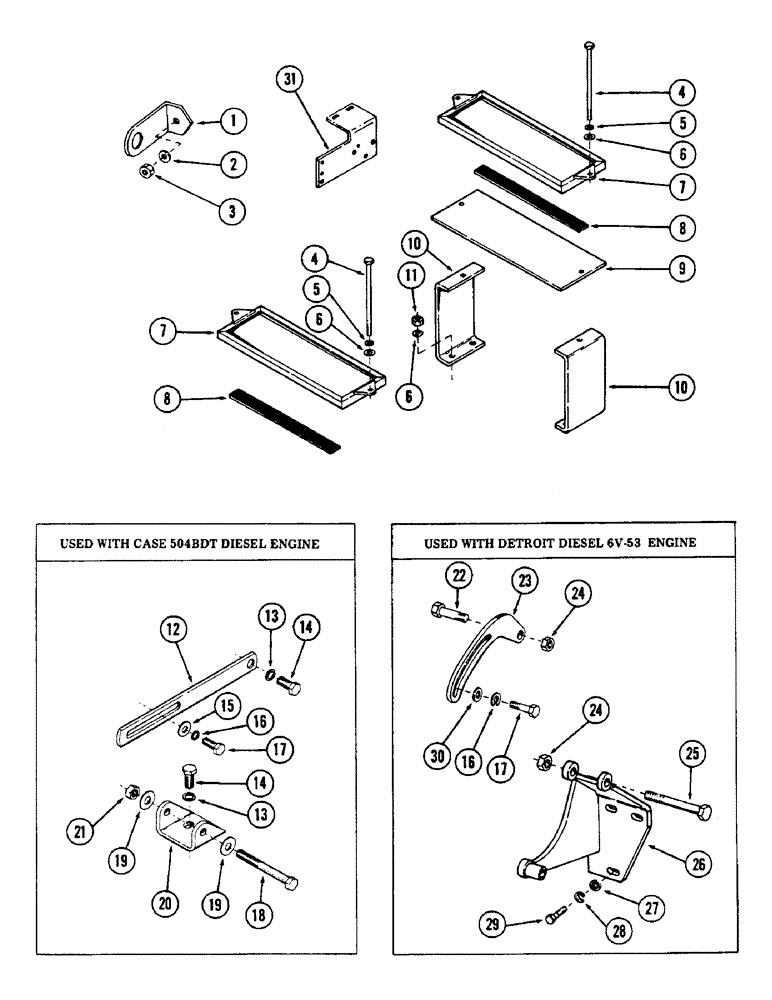

Запчасти Case 50 (290) - ELECTRICAL MOUNTING BRACKETS AND HARDWARE, (USED ON UNITS W/ SN. 6279926-6280344)(SN.6279926 & AFTER (55) - ELECTRICAL SYSTEMS

1

S203190

BRACKET

- horn

1шт.

2

195-102

WASHER,1/4"

- flat 5/16"

1шт.

3

86625061

NUT,1/4"-20, GB

NUT - self locking 1/4" NC

1шт.

4

113-2431

BOLT,Hex, 1/2" - 13 x 11", Gr 5

4шт.

5

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

6

S95569

WASHER

- flat 1/2"

8шт.

7

S507587

BRACKET

- battery hold down

2шт.

8

S223590

STRIP - rubber (Under battery)

4шт.

9

S231402

PLATE - (Used with upper battery)

1шт.

10

S231403

BRACKET - support (Used with upper battery)

2шт.

11

131-70

NUT,1/2"-13, GB

NUT - self locking 1/2" NC

4шт.

12

A59098

STRAP

- alternator adjusting

1шт.

13

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

14

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

Strap and bracket to engine Hex, 3/8"-16 x 3/4", G5, Full Thd

3шт.

15

195-103

WASHER,5/16"

- flat 3/8"

1шт.

16

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

17

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

(Strap to alternator) Hex, 3/8"-16 x 1", G5, Full Thd

1шт.

18

113-241

BOLT,Hex, 3/8" - 16 x 3", Gr 5

Alternator to bracket Hex, 3/8"-16 x 3", G5

1шт.

19

195-525

WASHER,3/8", SAE

- flat 7/16"

2шт.

20

A160391

BRACKET

- alternator mounting (Supersedes A38492)

1шт.

21

131-463

NUT,3/8"-16

NUT - self locking 3/8" NC

1шт.

22

113-213

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

(Strap to engine) Hex, 3/8"-16 x 2 1/4", G5

1шт.

23

S200898

STRAP

- alternator adjusting

1шт.

24

131-52

NUT,3/8"-16, GC

NUT - self locking 3/8" NC

2шт.

25

113-203

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

(Alternator to bracket) Hex, 3/8"-16 x 3 1/2", G5

1шт.

26

S211656

BRACKET

- alternator mounting

1шт.

27

195-103

WASHER,5/16"

- flat 3/8"

3шт.

28

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

29

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

(Bracket to engine) Hex, 3/8"-16 x 1 1/4", G5, Full Thd

3шт.

30

195-103

WASHER,5/16"

- flat 3/8"

1шт.

31

S510380

BRACKET

- relay mounting (For mounting hardware, see figure 52)

1шт.
