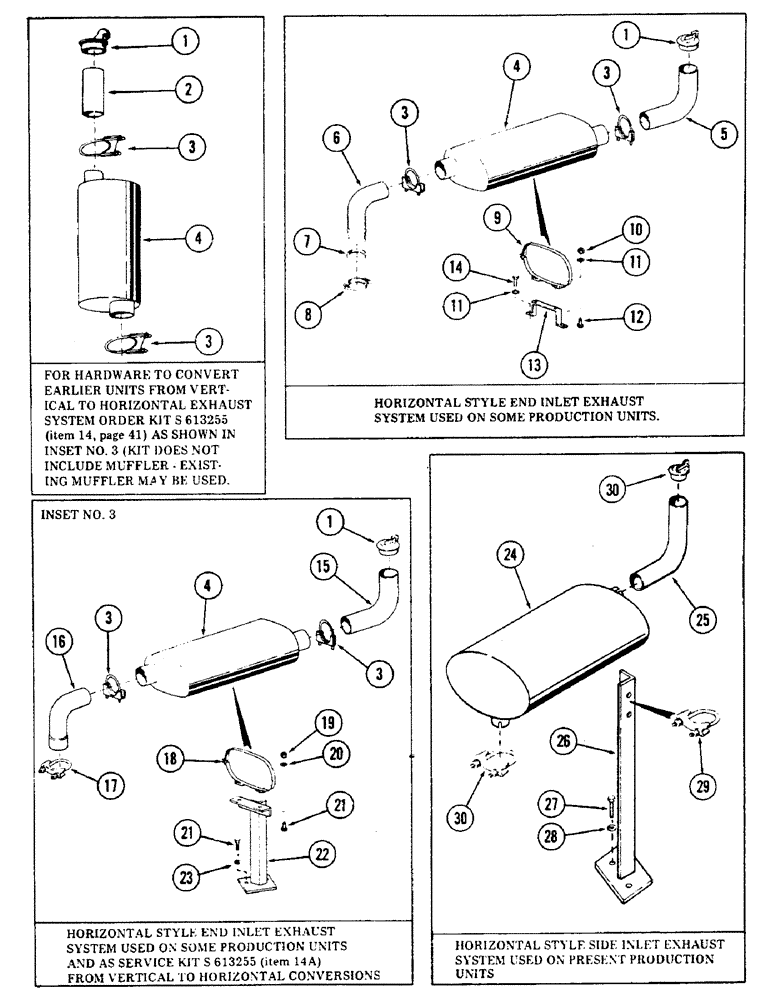

Запчасти Case 50 (040) - CASE 504BDT EXHAUST ASSEMBLIES, (S/N 6279926 AND AFTER) (10) - ENGINE

1

A19795

CAP

- exhaust pipe

1шт.

2

S98927

PIPE CLAMP

PIPE - exhaust tail

1шт.

3

L12413

CLAMP

2шт.

4

S508420

MUFFLER

1шт.

5

S99162

PIPE - exhaust tail

1шт.

6

NSS

NOT SOLD SEPARAT

ELBOW ASSEMBLY - flex-joint (Order kit ref 14A listed below)

1шт.

7

S107152

GASKET

1шт.

8

S107151

CLAMP

1шт.

9

A16574

BAND

CLAMP, Serial Range: (Muffler-bracket)

2шт.

10

113-52

BOLT,Hex, 1/4" - 20 x 6", Gr 5

NUT - self locking 3/8" - 16 NC

4шт.

11

195-525

WASHER,3/8", SAE

- flat 3/8"

8шт.

12

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

13

S233209

BRACKET

-, Serial Range: (Muffler-shroud)

2шт.

14

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

4шт.

14a

S613255

KIT

- exhaust conversion (Mounts to engine), Includes: Ref. 15 - 23

1шт.

15

S111779

PIPE, EXHAUST SYSTEM

PIPE - exhaust tail

1шт.

16

S236830

TUBE

PIPE - exhaust

1шт.

17

A17851

CLAMP

1шт.

18

A16574

BAND

CLAMP -, Serial Range: (Muffler-bracket)

1шт.

19

113-52

BOLT,Hex, 1/4" - 20 x 6", Gr 5

NUT - self locking 3/8" NC

2шт.

20

195-525

WASHER,3/8", SAE

- flat 3/8"

2шт.

21

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

22

S236334

BRACKET

-, Serial Range: (Muffler-engine)

1шт.

23

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

24

S237009

MUFFLER

1шт.

25

S115068

ELBOW

PIPE - exhaust tail

1шт.

26

S237209

BRACKET -, Serial Range: (Muffler-engine)

1шт.

27

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

28

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

29

A56092

CLAMP

2шт.

30

S93398

CAP

- exhaust pipe

1шт.
