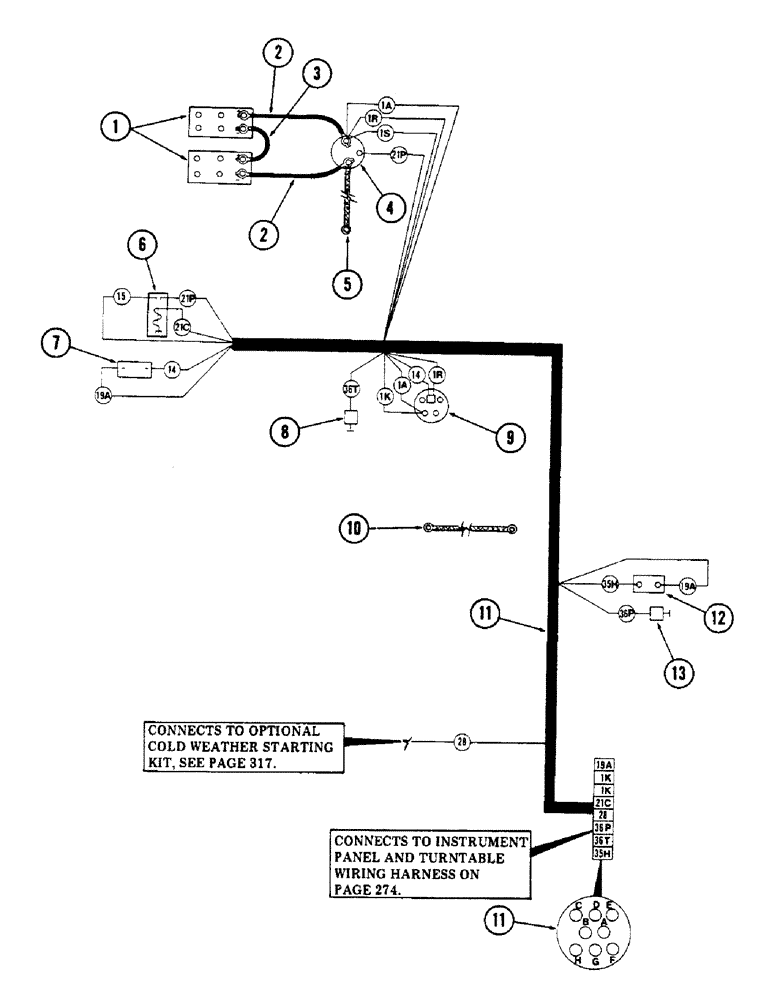

Запчасти Case 50 (284) - ENGINE WIRING HARNESS FOR: DETROIT DIESEL 6V-53 ENGINE(USED ON UNITS WITH SN. 6280345 & AFTER) (55) - ELECTRICAL SYSTEMS

1

A145205

WET BATTERY

- dry (12 volt)

2шт.

2

S236999

CABLE PULLING GRIP

CABLE - battery, Serial Range: (Starter-battery)

2шт.

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

4шт.

131-52

NUT,3/8"-16, GC

NUT - self locking 3/8" NC

2шт.

3

S237885

NEG BATTERY CABLE

CABLE - battery, Serial Range: (Battery-battery)

1шт.

4

NSS

NOT SOLD SEPARAT

STARTER - (Furnished with engine)

1шт.

5

S226940

ELECTRICAL WIRE

CABLE - ground, Serial Range: (Starter-engine)

1шт.

195-525

WASHER,3/8", SAE

- flat 7/16"

1шт.

6

S219533

SOLENOID

RELAY

1шт.

113-4

BOLT,Hex, 1/4" - 20 x 1", Gr 5

Relay to mounting bracket Hex, 1/4"-20 x 1", G5

2шт.

86625061

NUT,1/4"-20, GB

NUT - self locking 1/4" NC

2шт.

7

S237284

RESISTOR

1шт.

8

S108396

SENDER UNIT

SENDING UNIT - engine temperature

1шт.

S62256

LOOM

- (Bulk) 1 piece 24" long (Over wire for protection) (24")

1шт.

9

REF

INSTRUCTION

ALTERNATOR - 24 volt with regulator (For breakdown, see figure 286)

1шт.

S513579

PULLEY

- alternator

1шт.

S114639

NUT

-, Serial Range: (Pulley-alternator)

1шт.

10

S226940

ELECTRICAL WIRE

CABLE - ground, Serial Range: (Engine-turntable)

1шт.

195-525

WASHER,3/8", SAE

- flat 7/16"

1шт.

131-52

NUT,3/8"-16, GC

NUT - self locking 3/8" NC

1шт.

11

S614354

HARNESS

WIRING HARNESS - engine

1шт.

S107265

PLUG

CONNECTOR - electrical (8 contacts)

1шт.

R14668

CLAMP

- (Wiring harness to engine flywheel housing) (Use existing hardware for mounting)

2шт.

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

- (Harness to turntable)

1шт.

131-52

NUT,3/8"-16, GC

NUT - self locking 3/8" NC (Clamp to turntable)

1шт.

12

S63884

SWITCH

- pressure (Onto 217-1160 tee)

1шт.

217-1079

HYD CONNECTOR,1/8" - 27 NPTF

ADAPTER - 1/8" NPT male x 1/8" NPT male (Into engine)

1шт.

217-1160

TEE,1/8"-27 Female

- 1/8" NPT female x 1/8" NPT female x 1/8" NPT female (Onto 217-1079 adapter)

1шт.

13

S108398

TRANSMITTER

SENDING UNIT - oil pressure (Onto tee 217-1160 listed under ref 12)

1шт.
