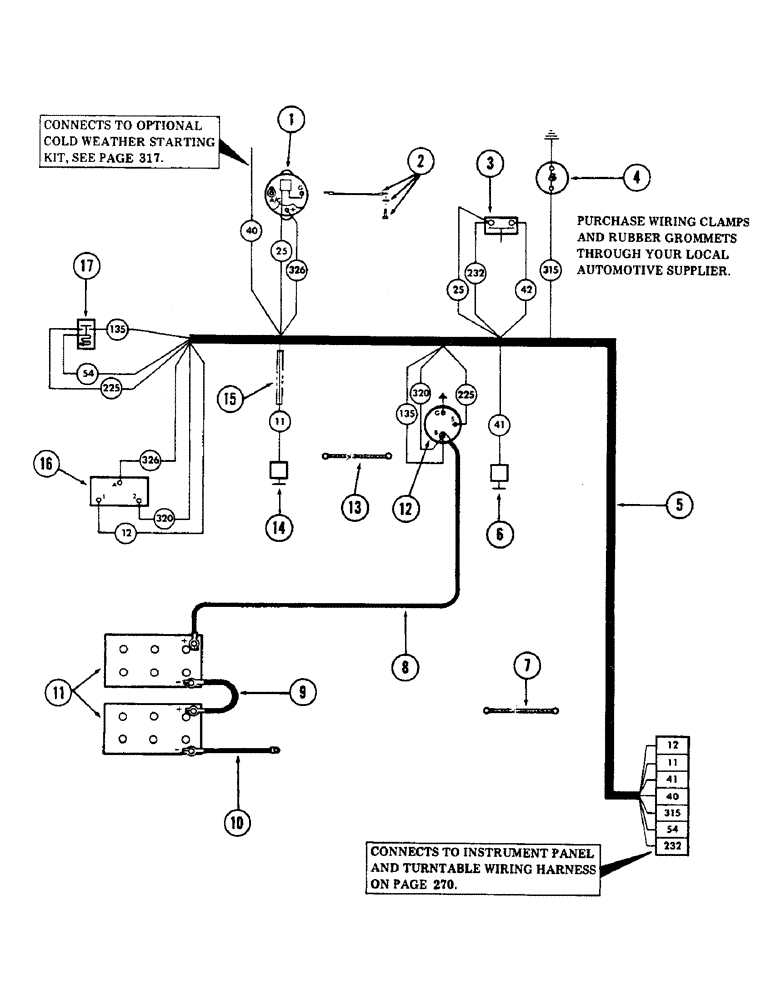

Запчасти Case 50 (282) - ENGINE WIRING HARNESS FOR: DETROIT DIESEL 6V-53 ENGINE(USED ON UNITS WITH SN. 6279926-6280344) (55) - ELECTRICAL SYSTEMS

1

S512737

ALTERNATOR

- 12 volt with regulator (Supersedes S229576)

1шт.

S513579

PULLEY

- alternator (Supersedes S229970)

1шт.

S114639

NUT

-, Serial Range: pulley-alternator

1шт.

223-178

TERMINAL CONNECTOR

TERMINAL - male blade

1шт.

223-166

CONNECTOR, ELEC

CONNECTOR - female

1шт.

2

S214163

WIRE - jumper ground 12 gauge wire x 8" long, Serial Range: (Alternator-engine)

1шт.

113-101

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

1шт.

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

3

S63884

SWITCH

- pressure

1шт.

217-1079

HYD CONNECTOR,1/8" - 27 NPTF

ADAPTER - 1/8" NPT male x 1/8" NPT male (Into engine) (Supersedes S74073)

1шт.

217-1160

TEE,1/8"-27 Female

- 1/8" NPT female x 1/8" NPT female x 1/8" NPT female (Onto S62654 adapter) (Supersedes S231137)

1шт.

4

NSS

NOT SOLD SEPARAT

CLUTCH - air conditioner

1шт.

5

S609756

WIRING HARNESS - engine

1шт.

S99515

PLUG

CONNECTOR - electrical (9 contact) (Male)

1шт.

S73387

CLIP

TIE - cable (Around electrical connectors of engine harness and turntable harness)

1шт.

6

S27826

SENDER UNIT

SENDING UNIT - oil pressure

1шт.

7

S81445

CABLE - ground, Serial Range: (Engine-turntable)

1шт.

131-52

NUT,3/8"-16, GC

NUT - self locking 3/8" NC (Cable to turntable)

1шт.

195-103

WASHER,5/16"

- flat 3/8"

1шт.

8

S223593

CABLE PULLING GRIP

CABLE - battery, Serial Range: (Starter-battery)

1шт.

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

- (Use with items 8 and 10)

1шт.

131-52

NUT,3/8"-16, GC

NUT - self locking 3/8" NC

1шт.

195-103

WASHER,5/16"

- flat 3/8"

1шт.

9

S229578

CABLE - battery, Serial Range: (Battery-battery)

1шт.

10

S234973

CABLE PULLING GRIP

CABLE - ground (Battery to turntable) (Replaces S45608)

1шт.

131-52

NUT,3/8"-16, GC

NUT - self locking 3/8" NC

1шт.

195-103

WASHER,5/16"

- flat 3/8"

1шт.

11

L51769

BATTERY, WET

BATTERY - (12V, 300 amp, 138 plates)

2шт.

12

NSS

NOT SOLD SEPARAT

STARTER - (Furnished with engine)

1шт.

13

S81455

STRAP

CABLE - ground (Starter to engine) (Use existing hardware for mounting)

1шт.

14

S27825

TEMPERATURE SENDER

SENDING UNIT - engine temperature

1шт.

15

S62256

LOOM

- (Bulk) 1 piece 15" long (Over wire for protection) (15")

1шт.

16

S229871

BOX

CONTROL - dual voltage charge 12/24 volt

1шт.

174-97

SCREW,Sl Rnd Hd, #10 - 32 x 1/2"

- no. 10 NF x 1/2"

4шт.

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

1шт.

129-37

NUT,#10-32

1шт.

17

S26663

SOLENOID

RELAY - (Mounts to ref 19 on figure 52)

1шт.

86625061

NUT,1/4"-20, GB

NUT - self locking 1/4" NC

2шт.

195-516

WASHER,#12

- flat 1/4"

2шт.
