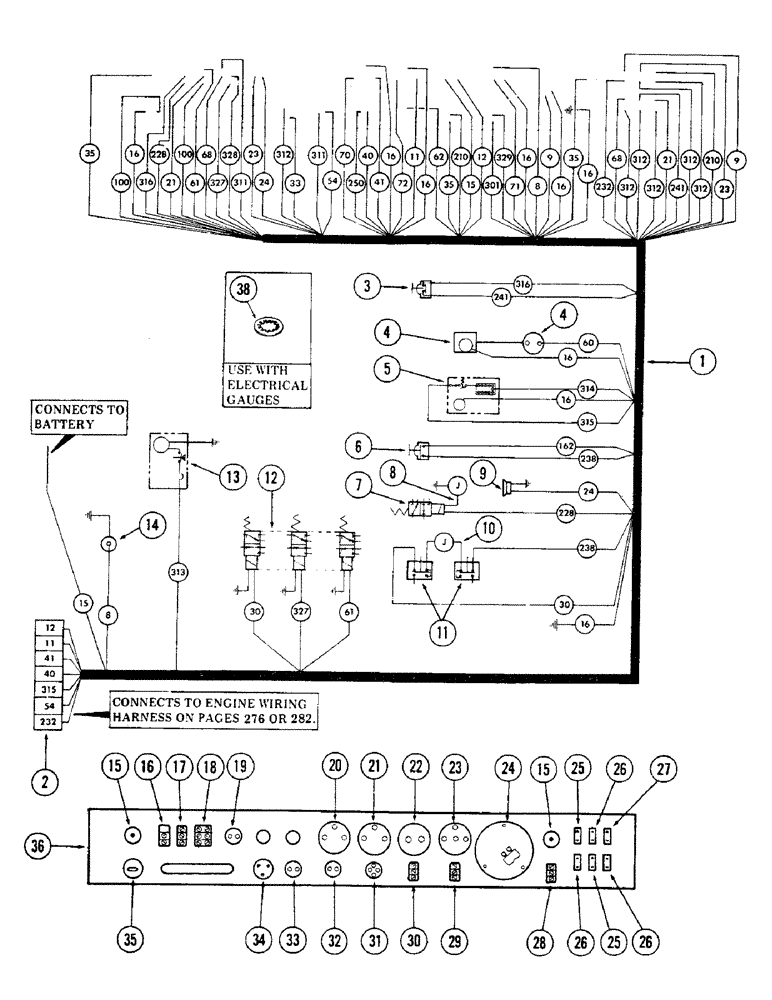

Запчасти Case 50 (270) - INSTRUMENT PANEL AND TURNTABLE WIRING HARNESS, (USED ON UNITS WITH SN. 6279926-6280344) (55) - ELECTRICAL SYSTEMS

1

S610693

HARNESS

WIRING HARNESS - instrument panel and turntable, Includes: Ref. 2

1шт.

1

S610693

HARNESS

WIRING HARNESS - instrument panel and turntable, Includes: Ref. 2

1шт.

2

S99519

CONTAINER

CONNECTOR - electrical (9 contact) (female)

1шт.

3

S229577

SWITCH

- override button (In right control handle)

1шт.

4

REF

INSTRUCTION

HEATER - hot water (For breakdown, see figure 310)

1шт.

NSS

NOT SOLD SEPARAT

SWITCH - heater (Furnished with heater)

1шт.

5

NSS

NOT SOLD SEPARAT

EVAPORATOR

1шт.

6

S218252

SWITCH

BUTTON - fast hoist (In left control handle) (optional)

1шт.

7

REF

INSTRUCTION

VALVE - hi-low range (For breakdown, see figure 248)

1шт.

8

S206378

ELECTRICAL WIRE

WIRE - jumper 14 gauge wire x 4" long

1шт.

9

S203189

HORN

1шт.

S64752

NUT

- (Mounts horn to horn mounting bracket)

1шт.

10

S232880

WIRE - jumper 14 gauge wire x 6-1/4" long

1шт.

11

S106819

SWITCH - fast hoist cut out pressure (Optional)

2шт.

12

REF

INSTRUCTION

VALVE - solenoid cartridge (Used with fast hoist, drive brake and drive lock circuits) (For breakdown, see figure 244)

3шт.

13

NSS

NOT SOLD SEPARAT

CONDENSER

1шт.

14

REF

INSTRUCTION

SENDING UNIT - fuel gauge (See ref 4 on figure 58)

1шт.

214-1202

CLAMP

- (Harness to floor plate)

3шт.

214-1206

CLAMP - (Harness to floor plate)

2шт.

S48576

NUT

- speed

5шт.

15

S85560

LIGHT

- panel

2шт.

16

S88636

IGNITION SWITCH

SWITCH - drive light

1шт.

17

S108079

SWITCH

- drive brake

1шт.

18

S108129

SWITCH

- drive lock

1шт.

19

S63242

BUTTON

- horn

1шт.

20

S27827

GAUGE

- oil pressure

1шт.

21

S27824

ELECTRICAL GAUGE

GAUGE - engine temperature

1шт.

22

S235515

ELECTRICAL GAUGE

GAUGE - ammeter (Supersedes S27828) (Replaces S235629)

1шт.

23

S27829

ELECTRICAL GAUGE

GAUGE - fuel

1шт.

24

S514333

HOURMETER

- (Supersedes S213391)

1шт.

A27780

FLANGE

DAMPTER

1шт.

173-32

SCREW,Sl Rnd Hd, #4 - 40 x 3/4"

- machine no. 4 NC x 3/4"

3шт.

192-13

WASHER,#4

Lock, #4

3шт.

129-13

NUT,#4-40

3шт.

25

S231438

BREAKER

- circuit (10 amp)

2шт.

26

S231439

CIRCUIT-BREAKER

BREAKER - circuit (15 amp)

3шт.

27

S231437

BREAKER

- circuit (25 amp)

1шт.

28

S88636

IGNITION SWITCH

SWITCH - work light (Optional)

1шт.

29

S88636

IGNITION SWITCH

SWITCH - swing lockout override (Optional)

1шт.

30

S88636

IGNITION SWITCH

SWITCH - panel light

1шт.

31

A42660

SWITCH

- wiper

1шт.

A41647

KNOB

1шт.

S61375

WASHER - spring

1шт.

S96778

NUT

- jam

1шт.

S96096

BULB

Bayonet type available

1шт.

32

S63242

BUTTON

- cold start (Optional)

1шт.

33

D34924

SWITCH

BUTTON - starter

1шт.

34

S612815

KIT

- ignition switch (Replaces S76366 igntion switch)

1шт.

S235850

SWITCH

- (With key)

1шт.

193-102

LOCK WASHER,Int Tooth, 13/16"

WASHER - lock

1шт.

S113528

WASHER

- flat

2шт.

35

S96034

LIGHT

- brake warning

1шт.

S97035

BULB

- light

1шт.

36

REF

INSTRUCTION

PANEL - instrument (See ref 2 on figure 76)

1шт.

37

S73387

CLIP

TIE - nylon (Fuel gauge wire to tank strap)

1шт.

38

193-25

LOCK WASHER,Int Tooth, 0.172" ID x 0.332" OD, STL, PLN

WASHER, LOCK, Int Tooth, #8

20шт.

193-99

LOCK WASHER,Int Tooth, #10

WASHER, LOCK, Int Tooth, #10

20шт.

193-28

LOCK WASHER,Int Tooth, 1/4"

WASHER - lock 1/4" (Internal tooth)

20шт.
