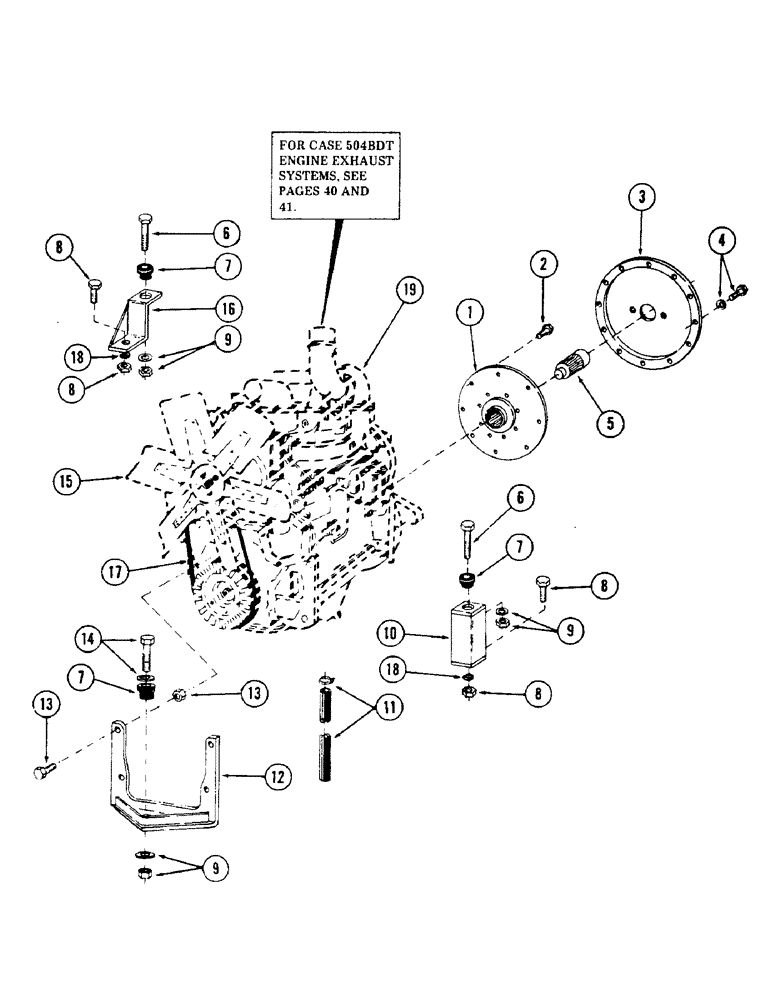

Запчасти Case 50 (038) - CASE 504 BDT DIESEL ENGINE & MOUNTING PARTS, (S/N 6279926 AND AFTER) (10) - ENGINE

1

S510340

DRIVE PLATE

PLATE - drive

1шт.

2

121-204

BOLT,Lock Place, Hex, 3/8" - 16 x 5/8", Gr 8

CPSW - 3/8" NC x 5/8" gr 5

8шт.

3

S52615

MOUNTING PARTS

MOUNTING - hydraulic pump

1шт.

4

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

9шт.

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

3шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

12шт.

5

S229599

DRIVE SHAFT

SHAFT - drive

1шт.

6

15-1284

BOLT

CPSW - 3/4" NC x 5-1/4" gr 5 (Replaces 13-1284)

2шт.

7

S112578

MOUNTING PARTS

MOUNT - rubber (Supersedes S93392)

3шт.

8

26-1248

BOLT,Hex, 3/4" - 10 x 3", Gr 8

2шт.

131-450

NUT,3/4"-10

NUT - self locking 3/4"

2шт.

9

195-2270

WASHER,13/16" x 3" x .238", HDN

- snubbing

3шт.

131-450

NUT,3/4"-10

NUT - self locking 3/4"

3шт.

10

S232820

BRACKET

- engine mounting (Left hand)

1шт.

11

S202581

HYDRAULIC HOSE,1.00" ID Bulk, SAE 100R3

- Low pressure, 40" long (Onto engine breather tube) 1.00" ID Bulk, SAE 100R3

1шт.

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

1шт.

12

S229621

BRACKET

- front engine mounting (Supercedes S233194)

1шт.

13

113-716

BOLT,Hex, 3/4" - 10 x 3", Gr 5

(Replaces 13-1248) Hex, 3/4"-10 x 3", G5

4шт.

131-450

NUT,3/4"-10

NUT - self locking 3/4" NC

4шт.

14

13-1268

BOLT,Hex, 3/4" - 10 x 4-1/4", Gr 5

CPSW - 3/4" NC x 4-1/4" gr 5

1шт.

195-45

WASHER,3/4"

1шт.

15

S231769

FAN

- pusher

1шт.

A61283

BUSHING

SPACER - fan

1шт.

113-219

BOLT,Hex, 3/8" - 16 x 2", Gr 5

CPSW - 3/8" NC x 1-1/2" gr 5

4шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

16

S232821

BRACKET

- engine mounting (Right hand)

1шт.

17

S88836

SET OF BELTS,0.69" W x 60.00" L

V-Belt, Alternator (Matched set of 2) 0.69" W x 60.00" L

1шт.

18

S94643

WASHER,19.43mm ID x 38.1mm OD x 6.35mm Thk

- flat 3/4"

2шт.

19

A139532

ENGINE ASSEMBLY

ENGINE - Case 504BDT

1шт.
